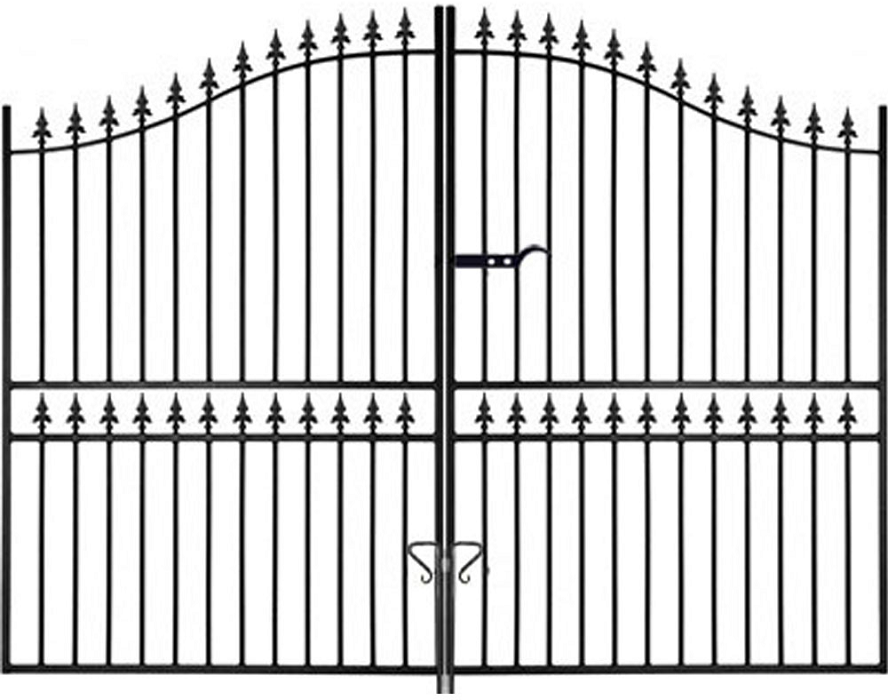

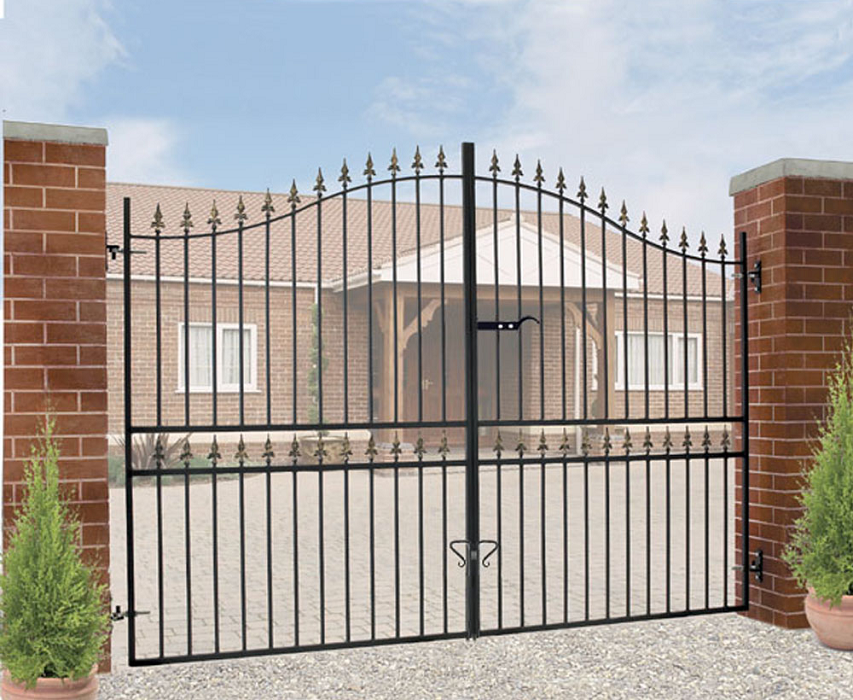

Corfe Split Bow Top Wrought Iron Style Estate Gates

The Corfe Split Bow Top Wrought Iron Style Estate Gates are built with a heavy-duty steel framework and have an arched top featuring fleur-de-lys finials for optimised visual appeal.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

The Corfe Split Bow Top Wrought Iron Style Double Metal Estate Gates will provide a practical and affordable means of securing the main driveway entrance of your property without compromising on the aesthetic appeal of the space. Suitable for many property types, these stunning double gates are manufactured in the UK using heavy duty components to ensure, strength, rigidity and performance making them the perfect solution for adding privacy and security to any property type. Available to order in choice of sizes, the gates benefit from a 25mm x 25mm welded box section construction, 25mm x 10mm flat bar solid steel top rail and 16mm round metal infill bars. For added aesthetic appeal, the top of the gates has an arched top which increase the height whilst the double row of fleur de lys finals add a stunning design detail. Supplied black primed as standard, all metal surfaces will need to be painted before installing to ensure the proper level of protection against rust and corrosion of the steel. Suitable for mounting direct to existing masonry surfaces or where required the gates can also be hinged off appropriate sizes metal posts. Included within the design are adjustable hinges, latch mechanism and in ground drop bolt.

Corfe Split Bow Top Wrought Iron Style Metal Estate Gates Specification

  • Timeless arch top double gates will add privacy and security to any residential property.

  • High quality steel construction.

  • Handmade in the UK.

  • Available to order online in a choice of sizes to suit many common applications.

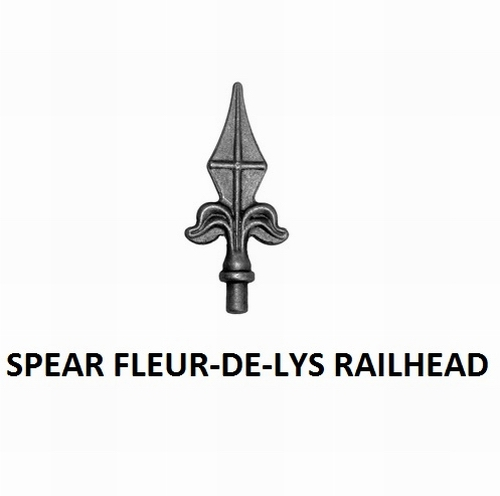

  • Attractive double row of wrought iron style fleur de lys finials provide improved aesthetic appeal.

  • Strong and robust 25mm x 25mm box section framework.

  • 25mm x 10mm flat bar solid steel top rail

  • 16mm round solid metal infill bars.

  • Includes surface mounted adjustable hinges, latch mechanism and in ground drop bolt.

  • Primed black (undercoat) – The Corfe design must be painted prior to installation. For optimum performance, we recommend applying a minimum of 2 coat of a high-quality exterior grade paint.


Physical Height

  • 2083mm (82”) to the highest point

  • 1778mm (70” at the sides



Extras (available as an option)

Please feel free to contact us for prices if you'd like to include any of the following elements.

  • Zinc plated (electro galvanised) and black powder coated paint finish.

  • Heavy duty mortise lock (with handle and keys).

  • Pad lockable drop bolts.



Ordering Sizes

  • Width: The "fits opening" dimension shown in the drop-down box at the top of the page includes the space necessary for the hinges and latch. In simple terms this means you should measure the size of your existing opening and find a size option that matches this measurement. No other calculations are necessary.

  • Height: The “physical height” is the actual height of the gates. When installing we suggest an allowance of 50mm (2”) to ensure they can open and close free from obstruction.

View the gate measuring guide here

Ordering Example

If the size of the opening between brick pillars measures 3353mm you should order the gates to “fit an opening" of 3353mm.

Do you Need to Install Metal Posts?

Please choose from the options and accessories menu to select the appropriate metal posts. When doing so you should bear in mind that additional space will be required.

Example – Gates to fit an opening of 3048mm combined with 2 x 100mm posts will require a total overall space of 3248mm.



Need Help and Support Prior to Ordering?

Read our measuring guide or look at our frequently asked questions page to find answers to many common queries. If you have not found the size required, feel free to learn more about our popular made to measure service. For all other enquiries please contact us for assistance.

We have a made to measure service available - Click here for more information

Other Useful Pages

You can find additional help and advice online within our Buying GuideOrdering GuideInstallation AdviceTechnical Advice and Case Studies pages.

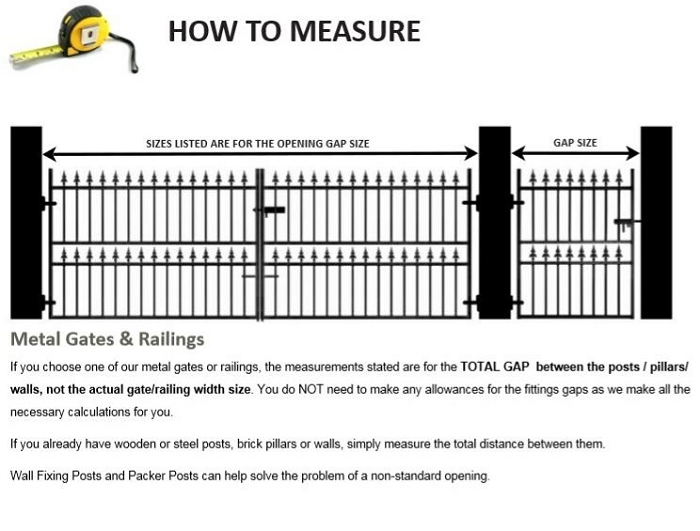

Corfe split bow top estate gates measuring guide

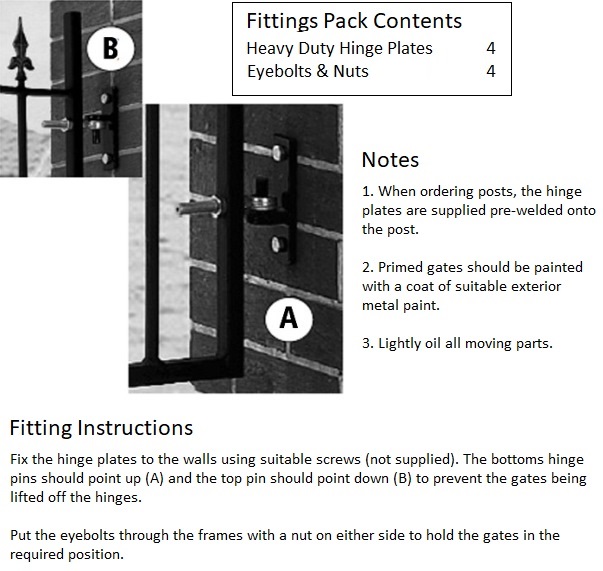

Corfe split bow estate gate heavy duty hinges diagram
