Abbey Wrought Iron Style Double Metal Driveway Gates

The Abbey Wrought Iron Style Metal Driveway Gates will make a great first impression at the main entrance onto your property. They feature a stylish infill panel design, incorporate a solid steel construction and have low maintenance zinc plated, and black powder-coated paint finish included as standard.

Other Options & Accessories

The Abbey Wrought Iron Style Double Metal Driveway Gates are exceptional value for money and are suitable for a wide range of property types. Available to suit a variety of opening widths, these stunning double gates benefit from a 25mm x 8mm welded steel framework, 10mm infill bars and 6mm bars within the decorative infill panels. Supplied with a zinc-plated and black powder-coated paint finish, they include the hinges, latch and drop bolt as standard and can be mounted directly to masonry or attached to posts depending on your opening layout.

Abbey Driveway Gates Specification

  • Available to order online to fit a range of openings between 2385mm - 3565mm.

  • The modern design elements are designed to provide an eye-catching appearance.

  • 25mm x 8mm welded flat bar solid steel framework.

  • 10mm diameter round metal infill bars

  • 6mm bars within each decorative panel.

  • Includes adjustable hinges, latch, and drop bolt as standard.

  • Rust and corrosion-resistant zinc plated (electro-galvanised) and black powder-coated paint finish.


Physical Height

  • 812mm



Ordering Sizes

  • Width: To determine the ordering width, measure the gap between your pillars, walls, or pre-existing posts. You will then need to order the gates according to this measurement, as the "fits opening" size displayed in the drop-down menu already includes the space required for the hinges and latch.

  • Height: The "physical height" refers to the actual height of the gates. No allowance for ground clearance has been included. When installing the gates, we recommend you leave a gap of 50mm (2") for optimum results.

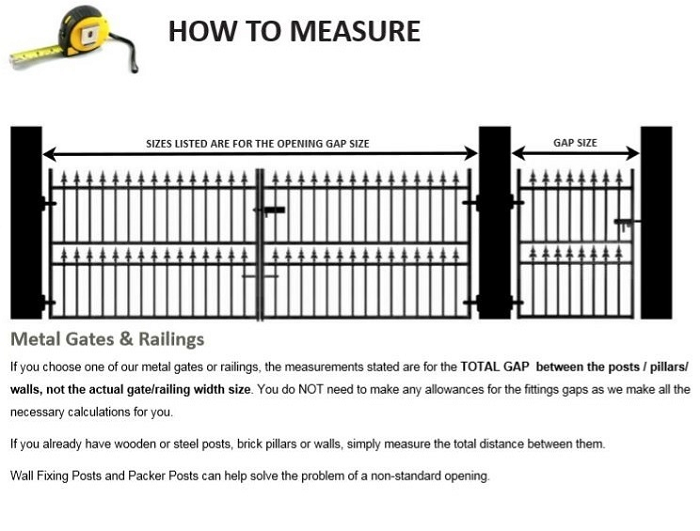

View the measuring guide for help with ordering sizes


If the opening width between walls is 2385mm, select the gates marked as "fits opening" 2385mm - 2445mm.

Do you Need to Install Metal Posts?

You will need to use metal posts for installations without an existing support structure in place. If these items are required, please remember you will need additional space for these components.

Example – Gates to fit an opening of 2385mm combined with 2 x 70mm posts will require a total overall space of 2525mm.



Do you Need More Details About Our Wrought Iron Style Driveway Gates?

For more information about ordering sizes, please read the measuring guide or to find answers to common queries, go to the frequently asked questions page. Alternatively, refer to our made-to-measure service page if you have not found the size you need to purchase. For all other enquiries, please get in touch with us for support.

Discover more details about made to measure gates

Other Useful Pages

You can also find additional help and advice online within our Buying GuideOrdering GuideInstallation AdviceTechnical Advice and Case Studies pages.

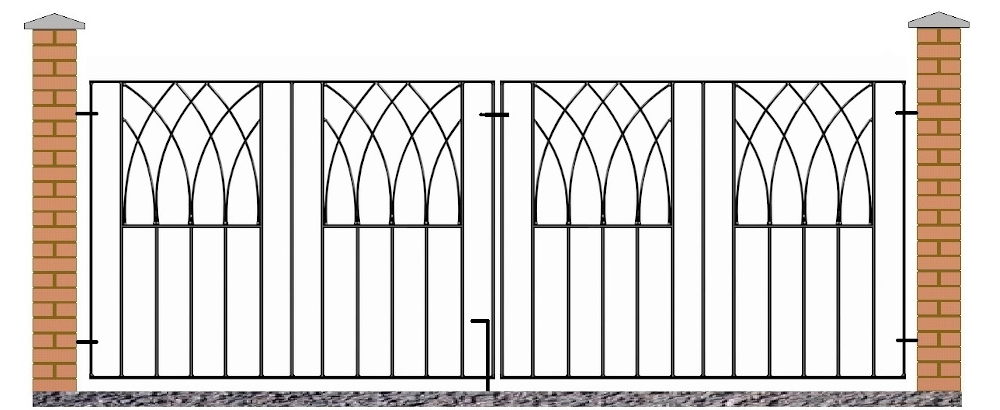

Abbey driveway gates measuring guide drawing

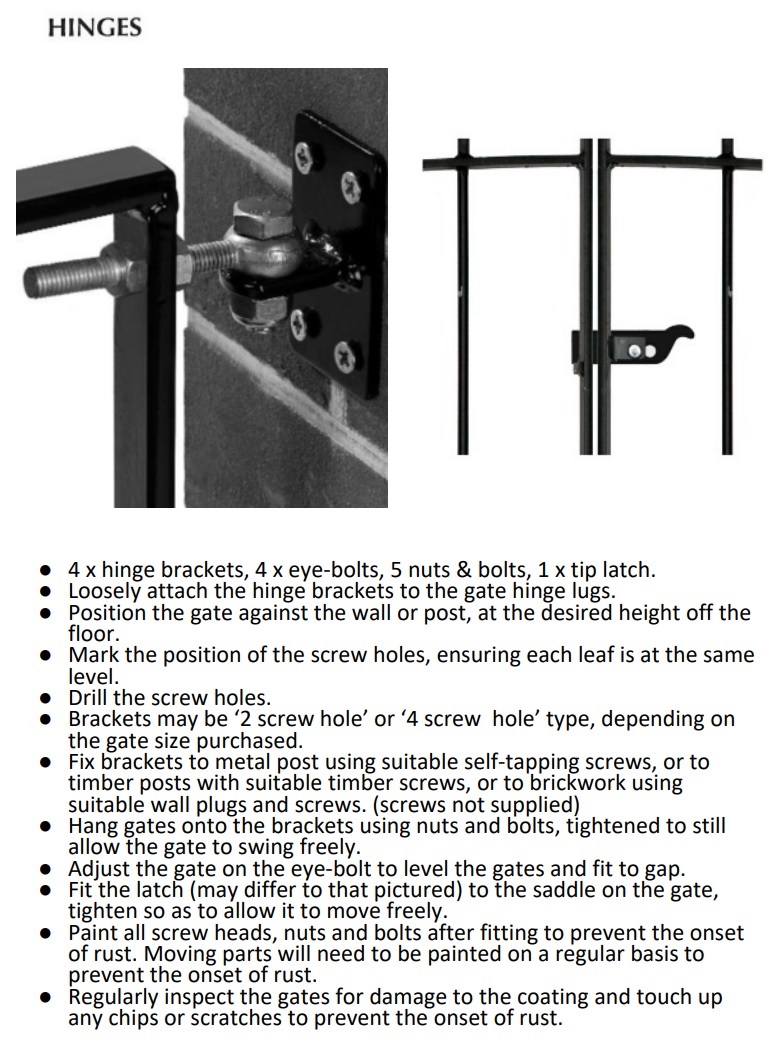

Abbey double gate hinge layout

Universal metal post installation guide
