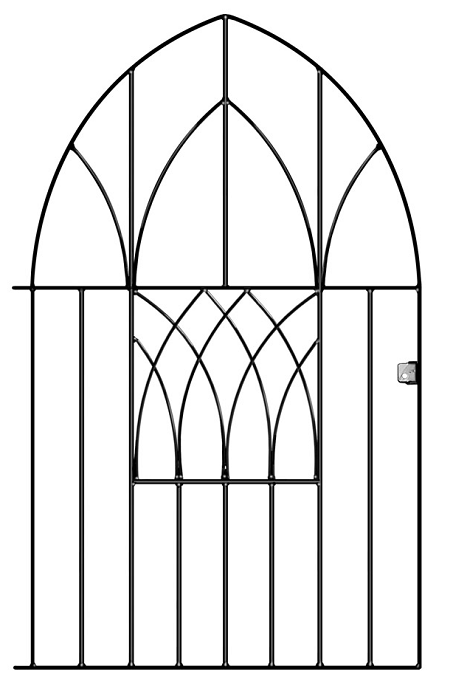

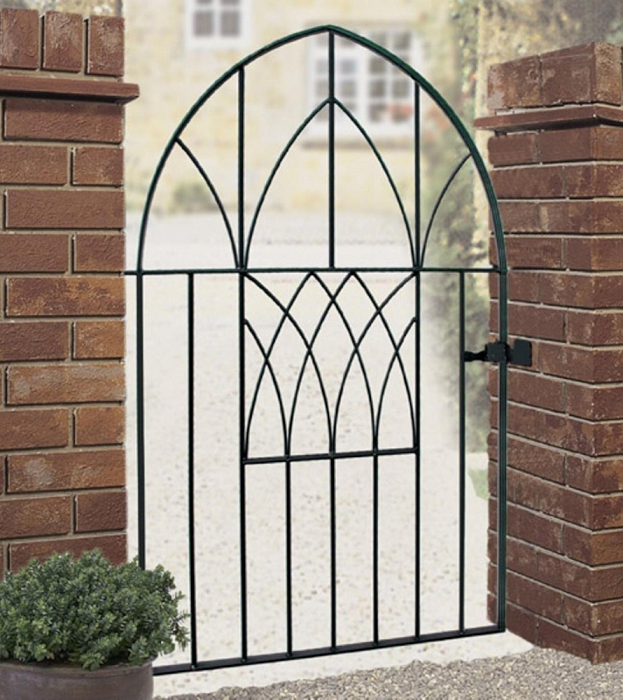

Abbey Low Bow Wrought Iron Style Metal Garden Gate

The Abbey Low Bow Wrought Iron Style Garden Gate design has a prominent gothic arched top and attractive infill panel to create a magnificent overall appearance. Made from solid steel components the gate benefits from a zinc plated and black powder-coated paint finish for improved resistance to rust and corrosion and is, therefore, excellent value for money.

Other Options & Accessories

The Abbey Low Bow Wrought Iron Style Metal Garden Gate will add style to your property thanks to the visually appealing Gothic arch top. Ideal for many outdoor locations, the timeless design combined with high-quality construction will ensure that years of privacy and security are achieved at an affordable price. The gate is manufactured from solid steel components, comes with the hinges and latch, is easy to install and benefits from corrosion-resistant zinc plated and black powder-coated paint finish as standard making it an excellent choice for the style-conscious property owner looking to upgrade the security of their home.

Abbey Low Bow Garden Gate Specification

  • Solid steel construction.

  • 25mm x 6mm frames.

  • 10mm solid metal infill bars to provide rigidity.

  • 6mm decorative scrollwork.

  • Supplied with hinges and a universal latch.

  • Can be installed left or right-hand hanging.

  • Zinc plated (electro galvanised) and powder coated black.



Ordering Sizes

  • Width: Measure the gap between the walls or posts. This measurement will be the ordering size. You do not need to make further calculations as our "fits opening" measurement already includes the space required for the hinges and latch.

  • Height: You will need to allow 50mm (2") for ground clearance when installing the gate.

View the measuring guide for help with ordering sizes


Where the gap between walls/posts is 914mm (3ft) you should order a gate to "fit opening 914mm (3ft)".

Do You Need Metal Gates Posts?

If you need to install metal posts to provide a suitable means of hanging or latching the gate, it is important to remember that you will require additional space for these items.

Example – A garden gate to fit an opening of 914mm combined with 2 x 50mm posts will need an overall space of 1014mm.



Looking For More Information Regarding Wrought Iron Style Garden Gates?

Please read the measuring guide if you are not confident about what size gate to purchase. Alternatively, go to the frequently asked questions page or contact us if you have a query.

Discover more about our made to measure gate sizes

Other Useful Pages

We have supplied further general help and advice online in our Buying GuideOrdering GuideInstallation AdviceTechnical Advice and Case Studies pages.

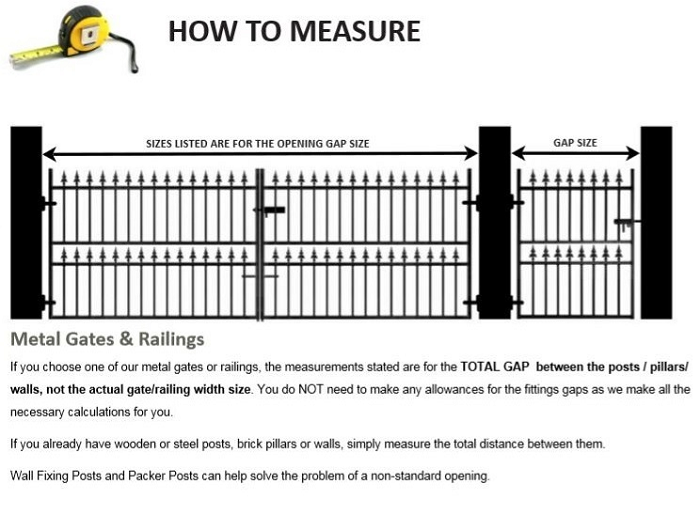

Abbey bow top garden gate measuring guide

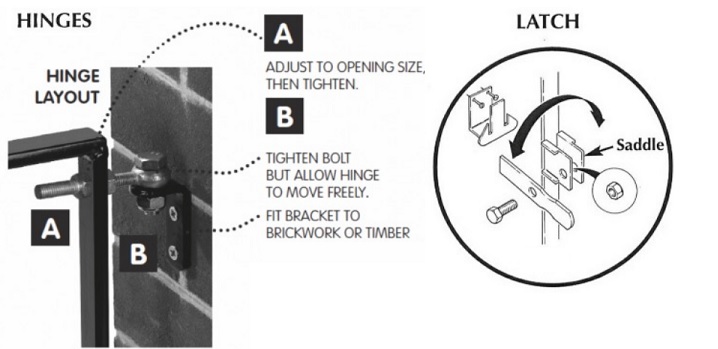

Abbey bow top garden gate hinge and latch diagram

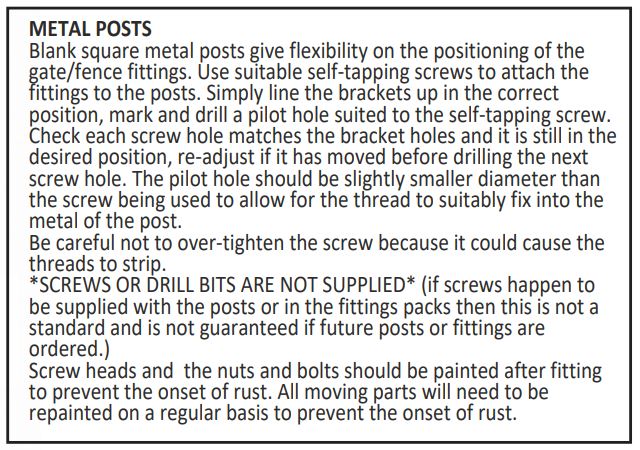

Metal post fitting information for garden gates
