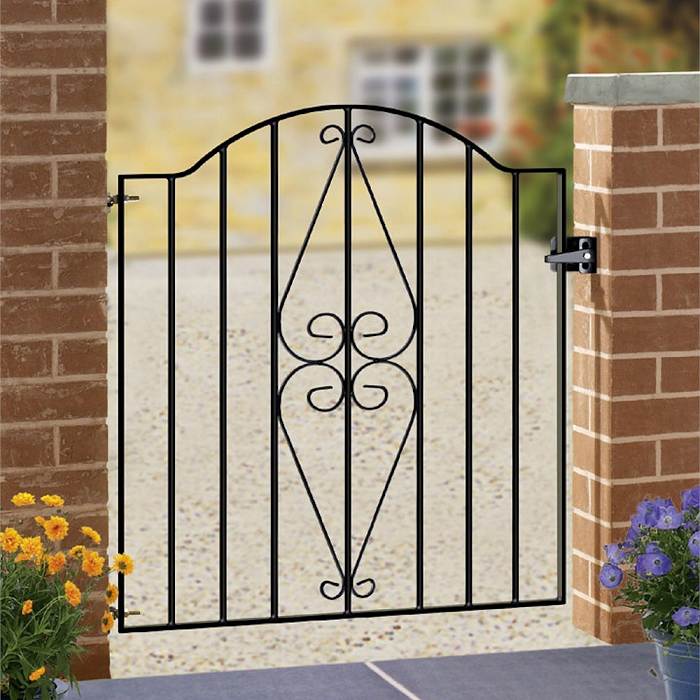

Henley Wrought Iron Style Metal Garden Gate

The Henley Wrought Iron Style Garden Gate is outstanding value for money and a great alternative to a made to measure size. It features a simple arch top and central scrollwork for a timeless appeal that will suit any property type.

Other Options & Accessories

The Henley Wrought Iron Style Metal Garden Gate features a timeless design and is an excellent alternative to a made to measure size. The Henley design features a shallow arch top, decorative scrolls set within the centre for added visual appeal and a zinc plated and black powder-coated paint finish; therefore represents fantastic value for money. With long adjustable hinges, the gate will suit a range of opening widths depending on the hinges' position, enabling it to fit non-standard openings.

Henley Garden Gate Specification

  • 20mm x 6mm metal frames.

  • 10mm solid infill bars.

  • Zinc-plated and black powder-coated paint finish

  • Suitable for fixing directly to brickwork, timber or metal posts.

  • It can be hinged left or right-handed.

  • Supplied as standard with adjustable hinges, latch and receiver plate.


Physical Height

  • 942mm (37")



Ordering Sizes

  • Width: Measure the gap between the walls or existing posts. This measurement will be the width you need to order. You do not need to make further allowances as the "fits opening" size shown in the drop-down menu already includes the space required for the hinges and latch.

  • Height: The height shown does not make an allowance for ground clearance. When installing the product, we recommend 50mm (2") space between the floor and the underside of the gate.

Visit the measuring guide for help with sizes


  • If the space between walls or existing posts is 875mm, you will need to order a gate that "fits opening" 850mm – 920mm.

  • If the opening width between the walls is 960mm, you should order a gate to "fit opening" 920mm – 990mm.

Do You Need Metal Posts To Install the Gate?

When metal posts are required, you will need additional space for these items.



Confused About Ordering Wrought Iron Style Garden Gates Online?

If you need more help determining the suitable size, go to our measuring guide page. If you don't see the size required, feel free to request a quote for a made to measure size. Read the frequently asked questions page for all additional questions, or contact us for help.

Do you need a made to measure gate? Click here for more details

Other Useful Pages

You can discover other help and guidance online within our Buying GuideOrdering GuideInstallation AdviceTechnical Advice and Case Studies pages.

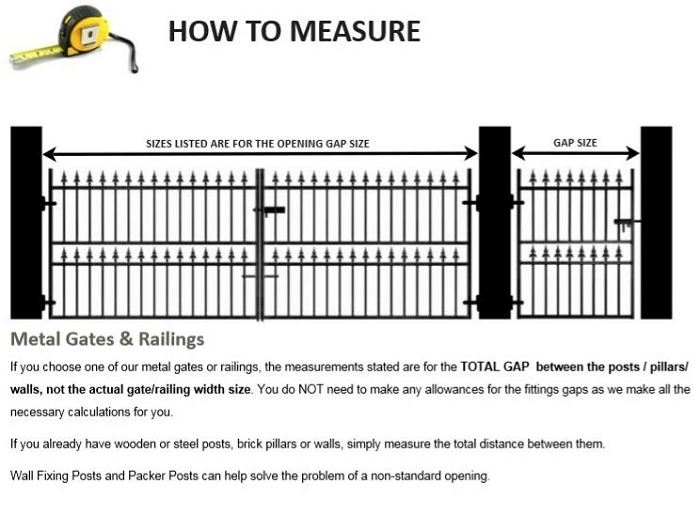

Henley wrought iron style metal garden gate measuring guide

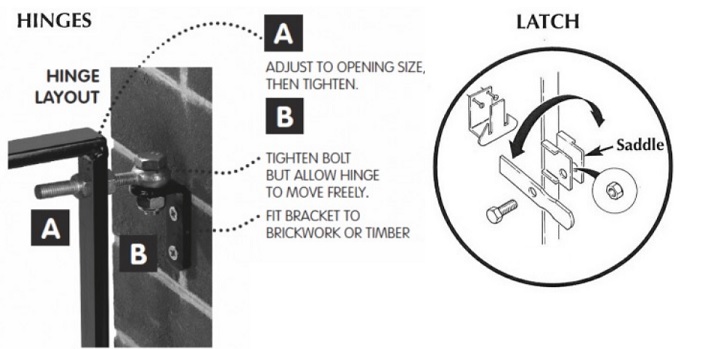

Henley wrought iron style metal garden gate hinge and latch diagram

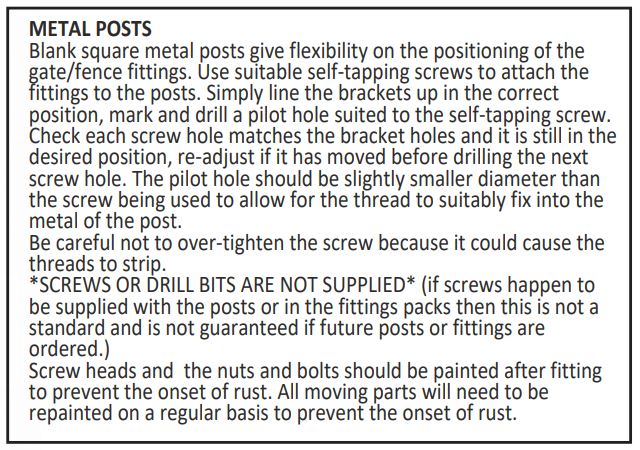

Henley wrought iron style metal garden gate compatible post information
