London Aluminium Pedestrian Garden Gate | Diagonal Infill Boards

London Aluminium Pedestrian Garden Gate | Diagonal Infill Boards

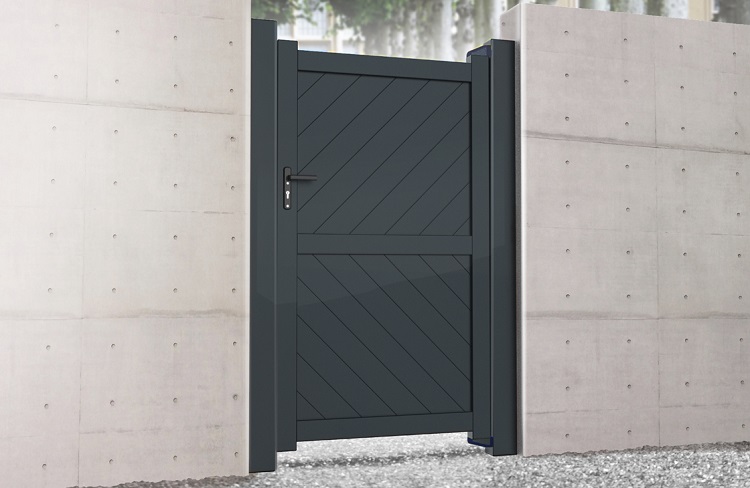

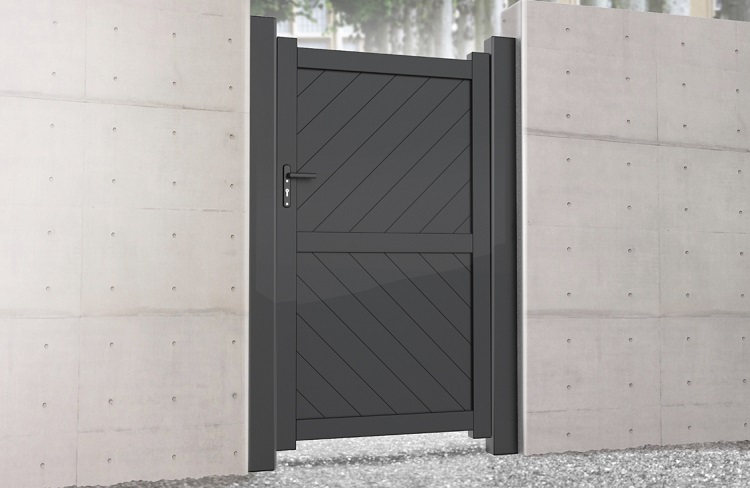

The London Aluminium Pedestrian Gate is an affordable, aesthetically pleasing way to secure your home and garden. It comes in a range of sizes, features a low-maintenance aluminium construction, includes diagonal infill boards, and can be specified in a choice of hardwearing black or anthracite grey powder-coated paint finishes to suit your tastes and property style.


The sizes shown in the drop-down menu indicate the physical width and height of the gate. They do not include the additional space required for hinges, lock plate, and ground clearance. It is therefore essential that you refer to the "fits opening" chart in the description below. This will help you determine the size you need between your brickwork or posts.

Please allow approximately 3 - 4 weeks lead time for delivery of this product.

Other Options & Accessories

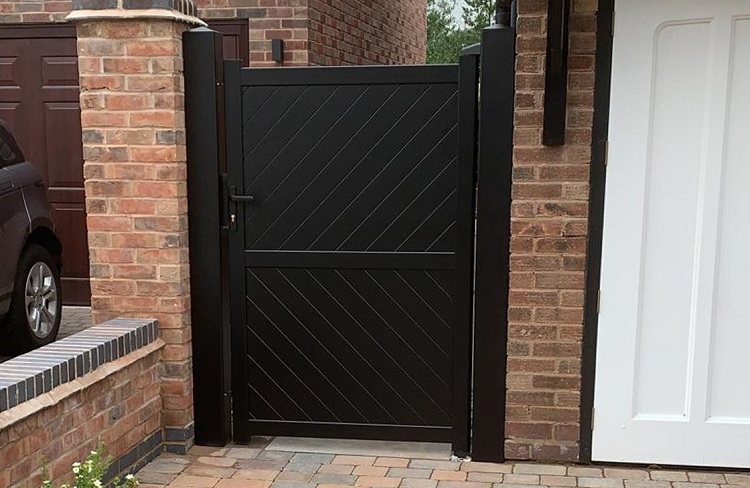

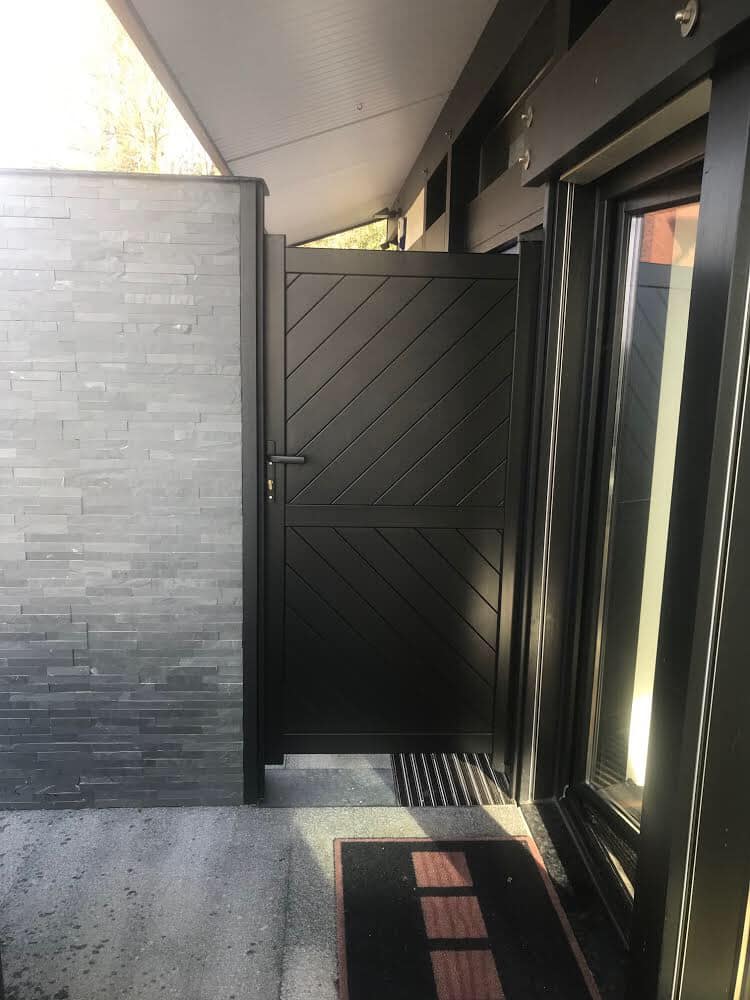

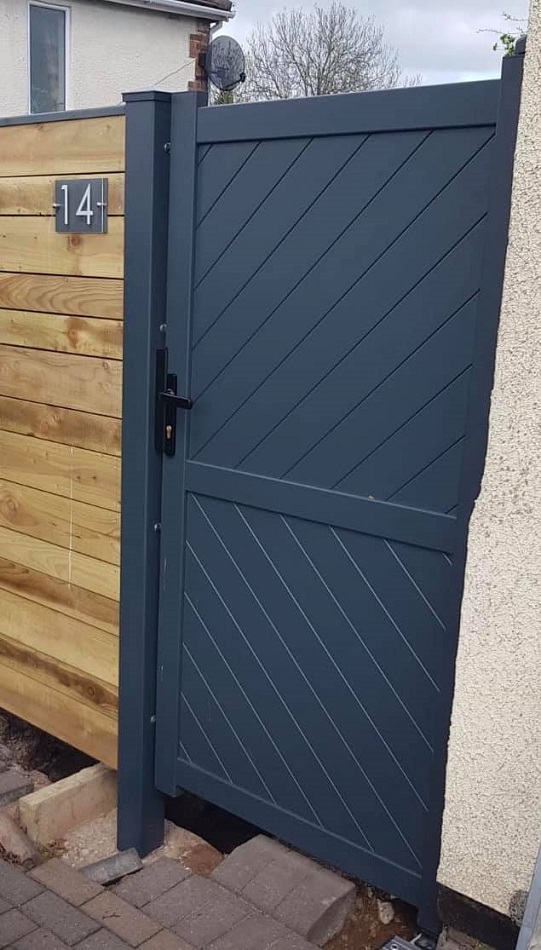

The London Aluminium Pedestrian Side Gate featuring a solid panel diagonal infill will provide your home and garden with a practical, affordable and aesthetically pleasing way to add privacy and security. Manufactured from low-maintenance aluminium, this stunning garden gate is strong, robust and secure. It includes 2 x surface-mounted wall hinges and standard and 1 x floor-mounted hinge for greater installation flexibility. Available to purchase online with a choice of width and height combinations; you can choose from black or anthracite grey powder-coated colours and include a range of accessories and posts to complement the gate where necessary.

London Diagonal Infill Aluminium Gate Specification

  • Modern, contemporary design will create a bold statement in any residential setting.
  • Naturally corrosion resistant.
  • Lightweight and durable construction.​
  • Aluminium is the ideal choice for coastal properties
  • Limited 5-year manufacturer's warranty.
  • Not susceptible to rotting, warping, twisting or, expanding and contracting.
  • Suitable for a wide variety of pedestrian entrances
  • Range of standard sizes available.
  • Choice of black and anthracite grey powder-coated colours.


What items are included with the gate?

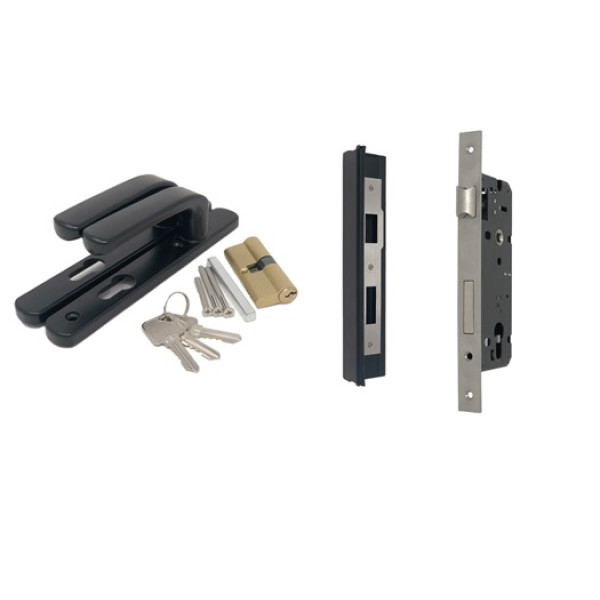

1 x Lock / Handle Set (with keys)
1 x Full Length Lock Keep
2 x Wall Mounted Adjustable Hinges
1 x Floor Mounted Hinge


Ordering Sizes

The dimensions presented in the drop-down menu only correspond to the physical width and height of the gate. They do not take into account the additional space needed for the hinges and locking mechanism. To determine the appropriate gap size for installation, we recommend consulting the table provided below.

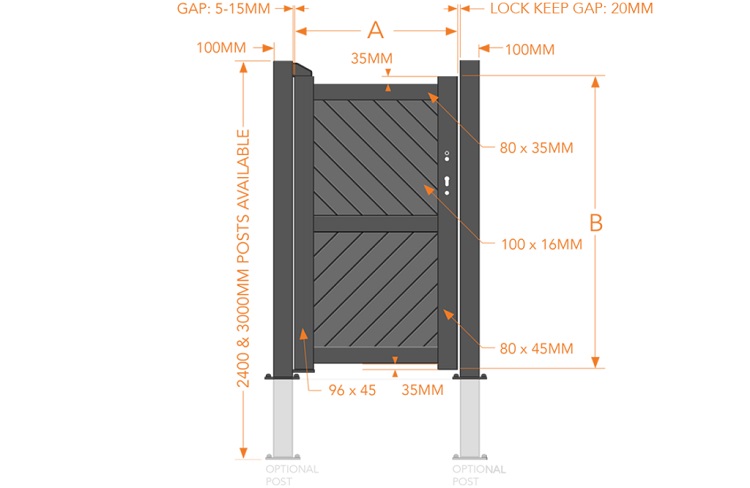

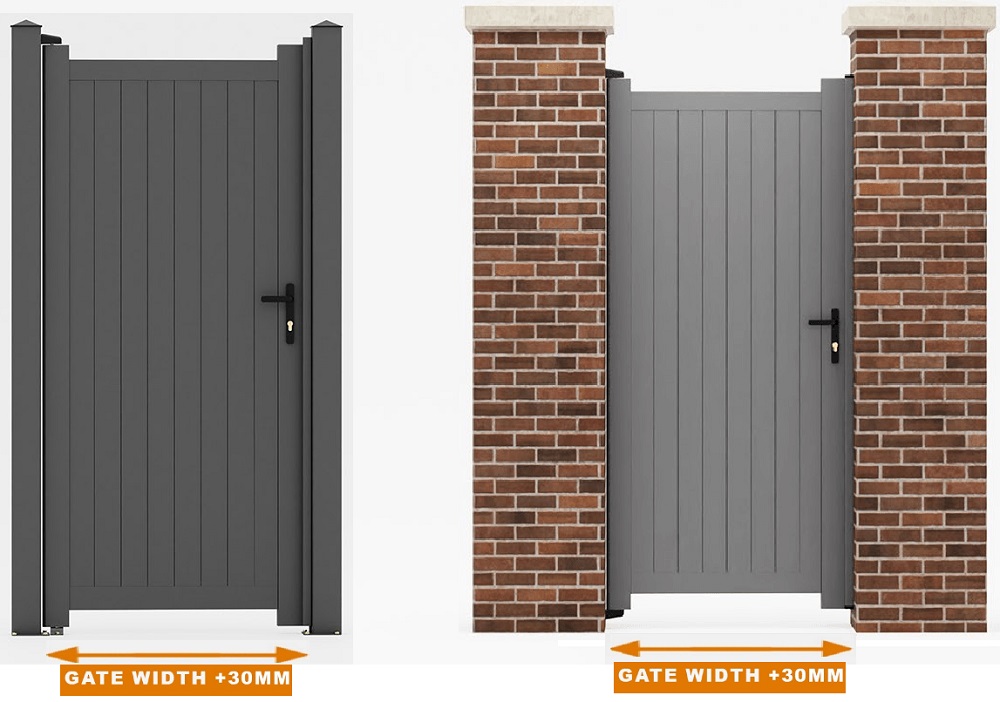

Aluminium gate gine and latch spacings

► For a gate with a physical width of 900mm, an opening of 930mm between your walls or posts is required.

► For a gate with a physical width of 1000mm, an opening of 1030mm between your walls or posts is required.

► For a gate with a physical width of 1100mm, an opening of 1130mm between your walls or posts is required.

► For a gate with a physical width of 1200mm, an opening of 1230mm between your walls or posts is required.

Height Dimensions

To ensure you have sufficient space for the top and bottom hinges, the height of the wall or posts needs to be at least 100mm taller than the physical height of the gate you purchase.

Made to measure service is available


Do You Require Aluminium Posts?

Please note that the posts available for purchase are blank and allow you the freedom to attach fittings in the optimal position for your needs. Each post comes equipped with a base plate for installation onto pre-existing solid surfaces, such as concrete. Alternatively, you can secure the posts in the ground and support with concrete.

Post Specification

Profile thickness: 3.5mm

Dimensions: 100mm x 100mm x 2400mm

Includes integral base plate with fixing holes

Colour: Black or anthracite grey

Equipped with a post cap to prevent water penetration.


Do you Need Help with Ordering Sizes?

If you have any questions, need assistance selecting the right size to purchase, or require a made-to-measure size, please don't hesitate to contact us.
