Surrey Aluminium Pedestrian Garden Gate | Vertical Infill Boards

Surrey Aluminium Pedestrian Garden Gate | Vertical Infill Boards

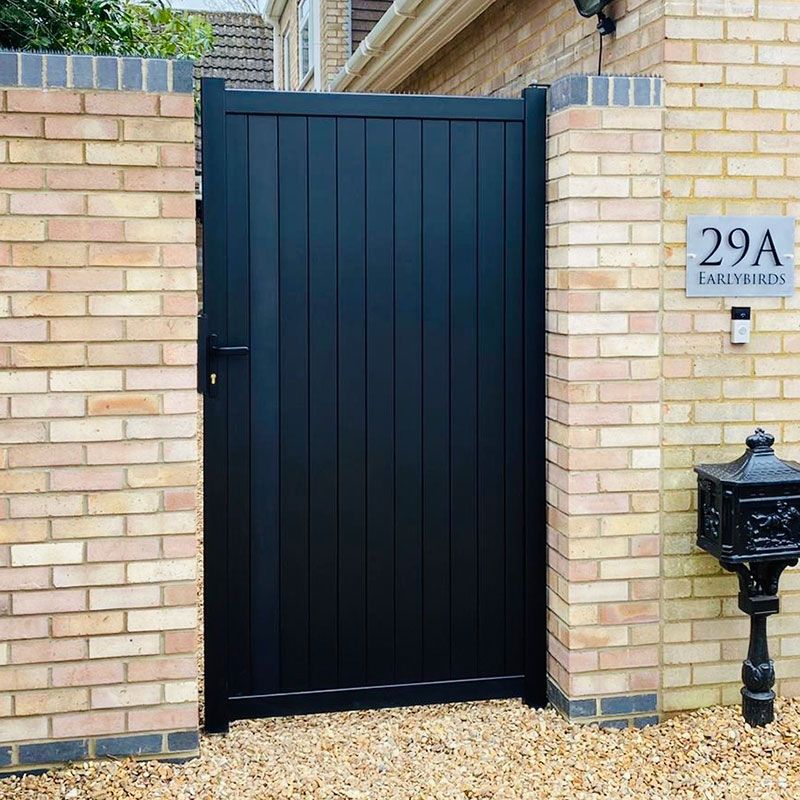

The Surrey Aluminium Pedestrian Gate is available in a selection of standard sizes. It has a timeless vertical infill board pattern and a durable powder-coated paint finish in a choice of black or anthracite grey. Suitable for a range of residential applications, this modern gate design is great value-for-money option and a beautiful addition to any property.

When placing your order, it's important to note that the sizes shown in the menu denote the actual width and height of the gate. You will need extra space needed for the hinges, lock plate, and ground clearance
therefore it is essential you refer to the chart in the description below to fully understand the specific opening size you will need between your walls or posts.

Please allow approximately 3 - 4 weeks lead time for delivery of this product.

Other Options & Accessories

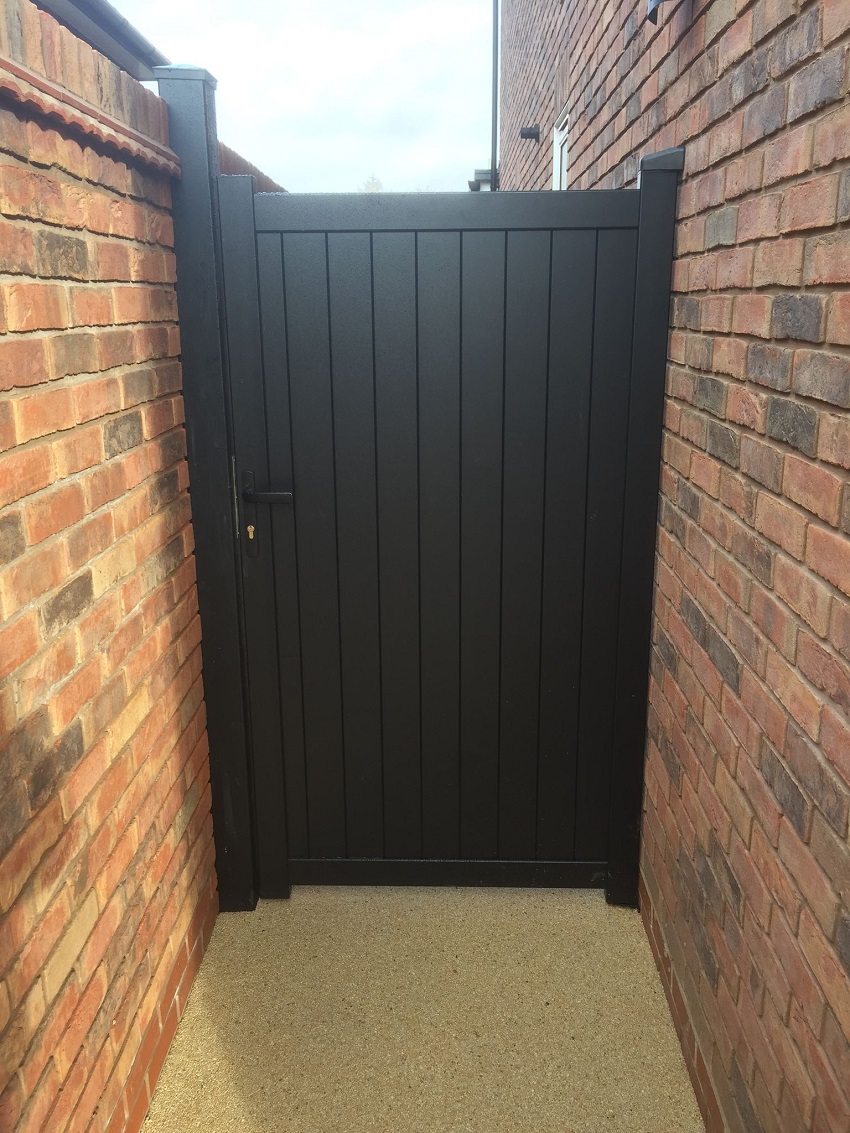

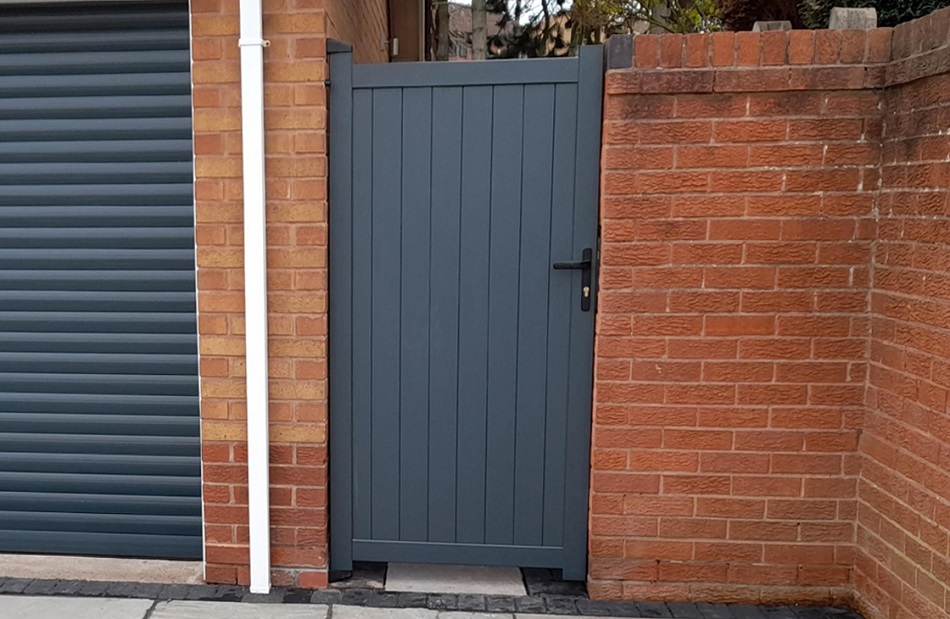

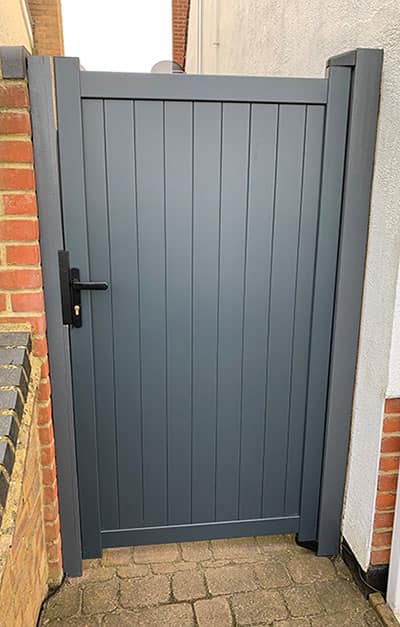

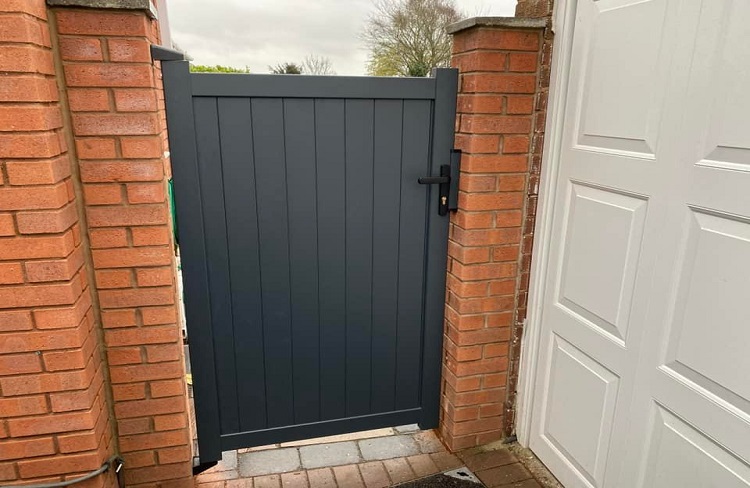

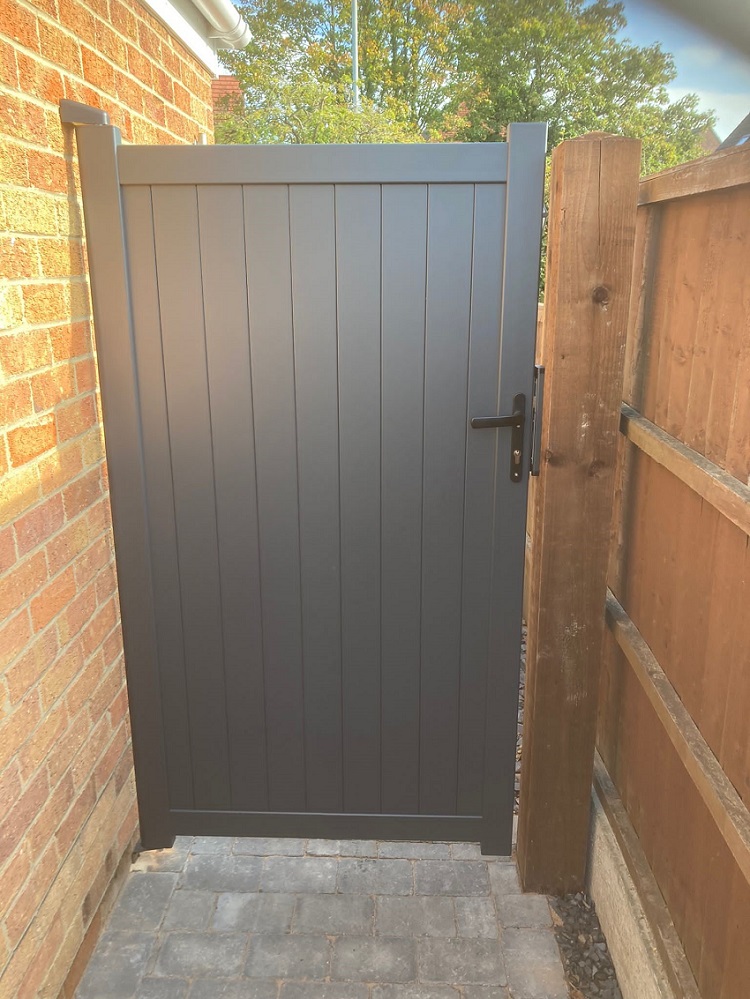

The Surrey Aluminium Pedestrian Side Gate is the perfect solution for property owners aiming to increase privacy and security within the home and garden. Featuring a low maintenance yet robust aluminium construction, this gate benefits from vertical infill boards set within a secure framework. It is available in a choice of timeless black or contemporary anthracite grey powder-coated paint finishes and is available to buy online in various width and height configurations to accomodate many typical pedestrian entrances. Suitable for DIY or professional installation, the Surrey design comes complete with a lock (including handle and 2 keys), surface-mounted hinges (2 x wall-mounted and 1 x floor-mounted), and a full-length lock keep.

Surrey Aluminium Pedestrian Side Gate Specification

  • Suitable for various property types and installation environments.
  • Made of high-quality aluminum.

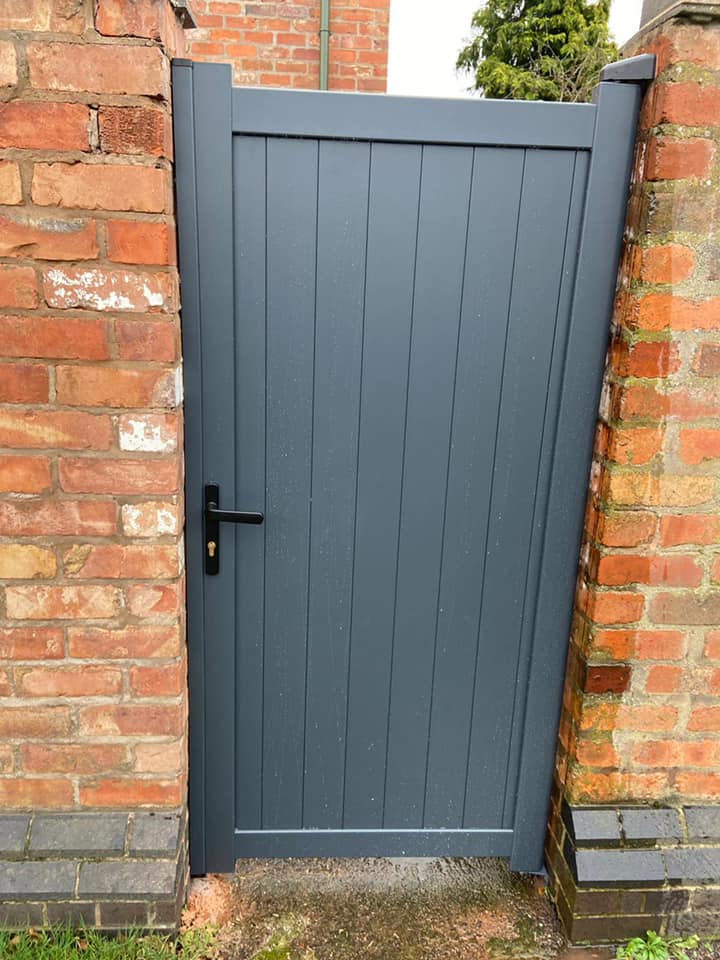

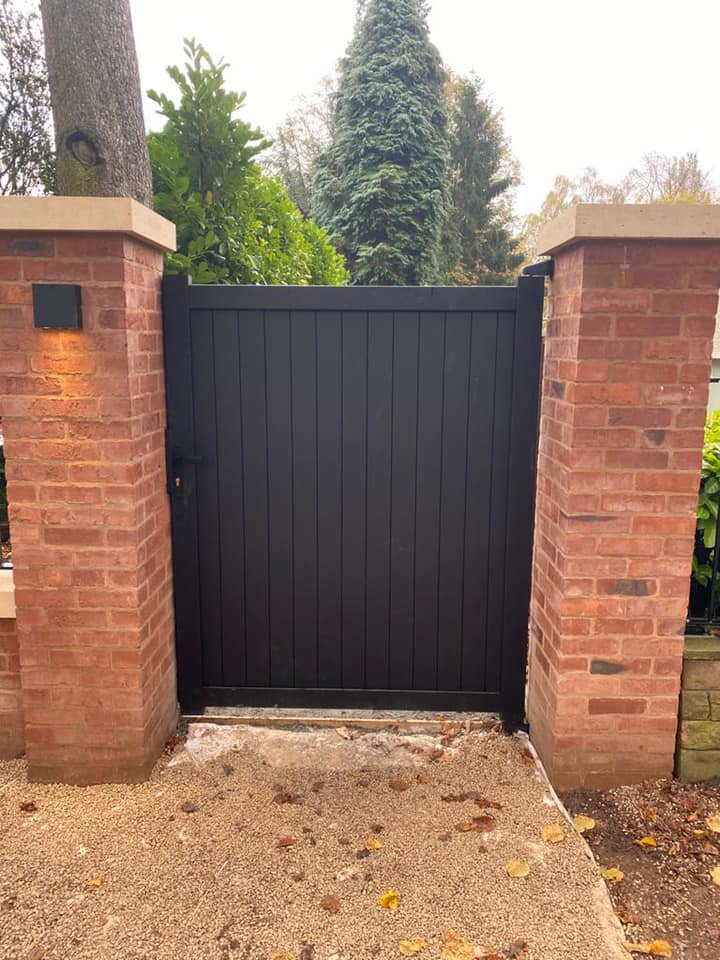

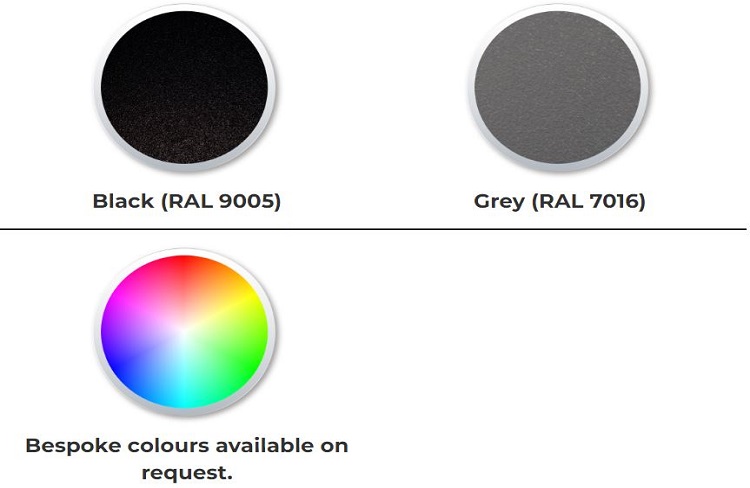

  • Available in black or anthracite grey powder-coated paint colours.
  • Resistant to warping or twisting and will not rot.
  • Purchase online in a wide selection of width and height combinations

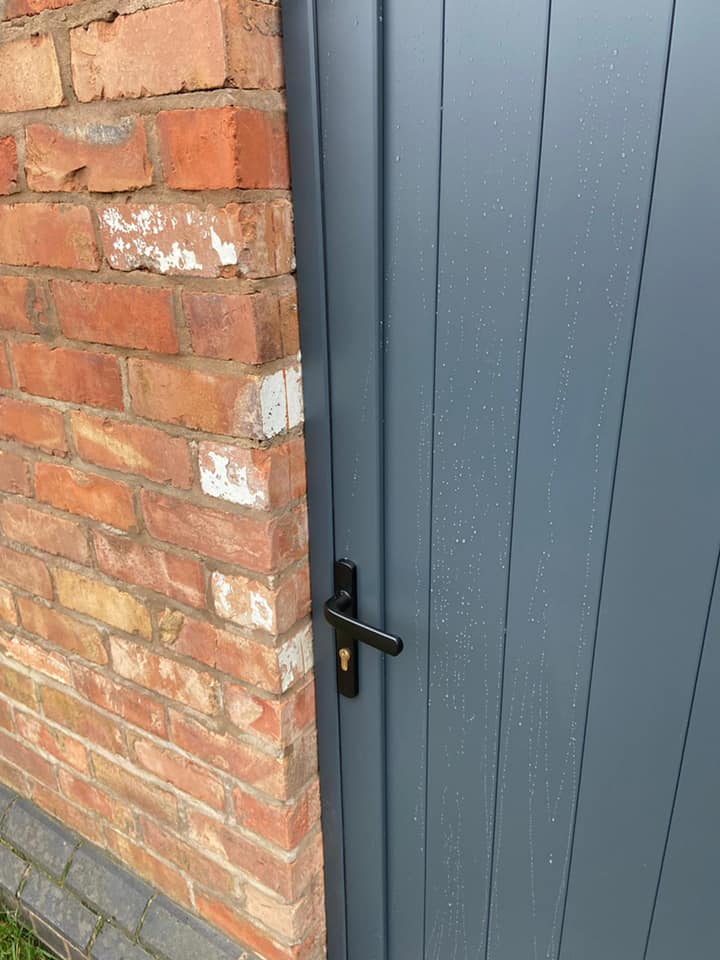

  • Easy to install, the gate comes with an inbuilt lock, a black handle, full length keep, and surface-mounted hinges.


What items are included with the gate?

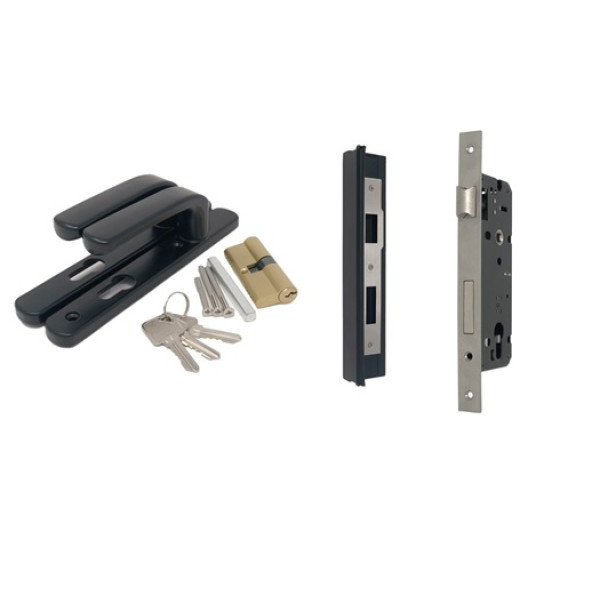

1 x Lock / Handle Set (with keys)
1 x Full Length Lock Keep
2 x Wall Mounted Adjustable Hinges
1 x Floor Mounted Hinge


Ordering Sizes

The dimensions presented in the drop-down menu only correspond to the physical width and height of the gate. They do not take into account the additional space needed for the hinges and locking mechanism. To determine the appropriate gap size for installation, we recommend consulting the "fits opening" table provided below.

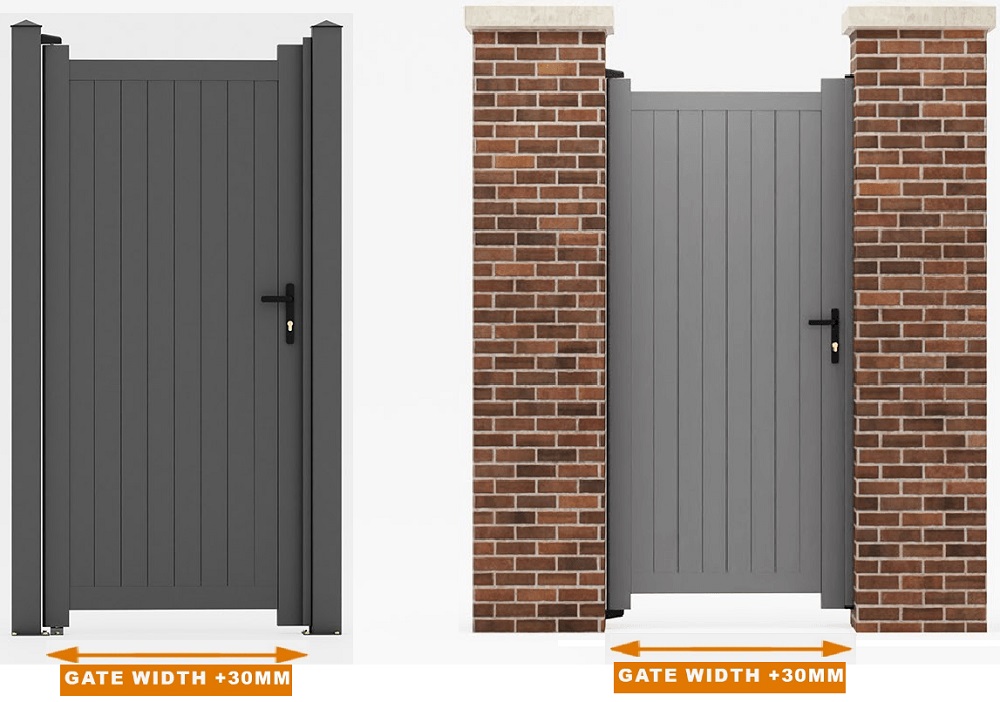

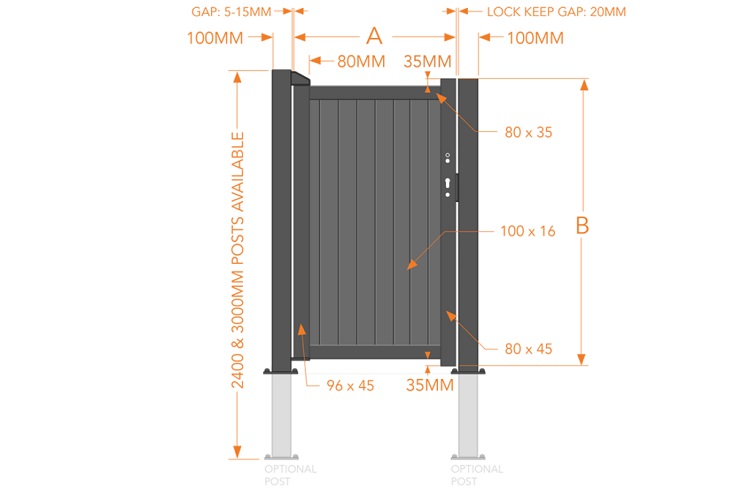

Aluminium gate gine and latch spacings

► For a gate with a physical width of 900mm, an opening of 930mm between your walls or posts is required.

► For a gate with a physical width of 1000mm, an opening of 1030mm between your walls or posts is required.

► For a gate with a physical width of 1100mm, an opening of 1130mm between your walls or posts is required.

► For a gate with a physical width of 1200mm, an opening of 1230mm between your walls or posts is required.

Height Dimensions

To ensure you have sufficient space for the top and bottom hinges, the height of the wall or posts needs to be at least 100mm taller than the physical height of the gate you purchase.

Made to measure service is available


Do You Require Aluminium Posts?

Please note that the posts available for purchase are blank and allow you the freedom to attach fittings in the optimal position for your needs. Each post comes equipped with a base plate for installation onto pre-existing solid surfaces, such as concrete. Alternatively, you can secure the posts in the ground and support with concrete.

Post Specification

Profile thickness: 3.5mm

Dimensions: 100mm x 100mm x 2400mm

Includes integral base plate with fixing holes

Colour: Black or anthracite grey

Equipped with a post cap to prevent water penetration.


Do you Need Help with Ordering Sizes?

If you have any questions, need assistance selecting the right size to purchase, or require a made-to-measure size, please don't hesitate to contact us.
