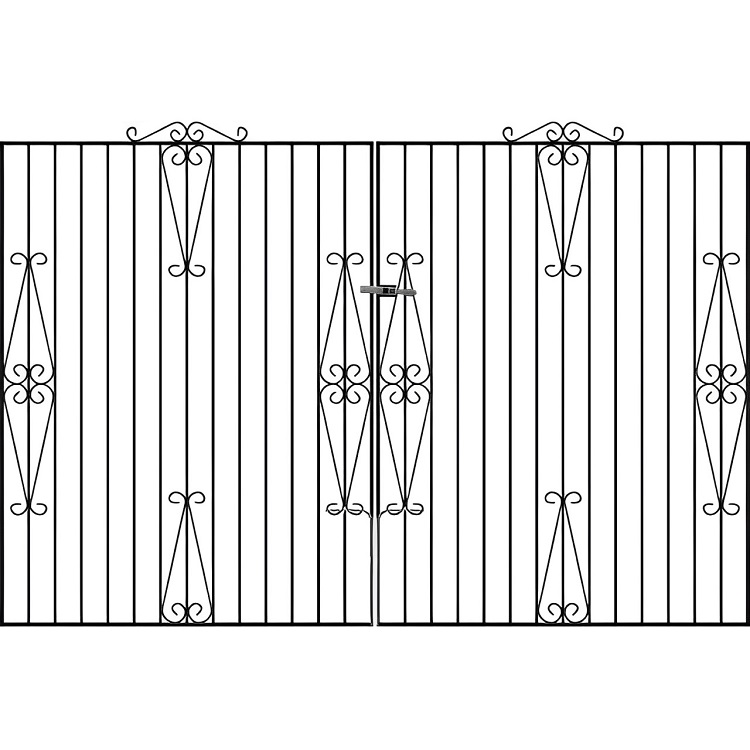

Winchester Wrought Iron Style Estate Gates

The Winchester Wrought Iron Style Metal Estate Gates are available online in various sizes to suit most domestic driveway requirements. They feature a solid steel frame and ornate scrollwork for a timeless appeal at a competitive price.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

The Winchester Wrought Iron Style Estate Gates are designed with a mix of traditional scrollwork and simple infill bars for a timeless and charming appearance at a very affordable price. Suitable for numerous locations, the Winchester gates will undoubtedly increase privacy and security to the main entry point of your property without spending thousands of pounds and, as a result, is one of our best-selling designs.

Winchester Metal Estate Gates Specification

  • High-quality solid steel construction.

  • Subtle yet effective design details.

  • Available to suit numerous gap sizes.

  • 20mm x 8mm flat bar solid steel framework, 10mm infill bars and 10mm x 3mm decorative scrollwork.

  • Manufactured in the UK to exact tolerances.

  • Supplied complete with adjustable hinges, latch and drop bolt.

  • Primed black (undercoat).


Height (once fitted)

  • 1830mm (6ft)



Ordering Sizes

  • Width: The "fits opening" dimension already includes the space necessary for the hinges and latch.

  • Height: The "height once fitted" includes an allocation of 50mm (2") for ground clearance and is calculated from the floor to the top of the horizontal frame. The scrolls above this are not included.

View the measuring guide

Ordering Example

If the opening size between pillars measures 8ft you should order the gates to "fit an opening" of 8ft".

Do you Need to Install Metal Posts?

If required, you should select the suitable size posts from the options and accessories menu displayed above. When doing so, it is essential to recognise that additional space will be necessary.

Example – Gates to fit an opening of 8ft combined with 2 x 2" posts will require a total overall space of 8ft 4".



Need Help and Support?

It would help if you looked at the measuring guide for additional information about ordering sizes. To find answers to common queries, view the frequently asked questions page. Alternatively, if you have not seen the size needed, go to our made-to-measure gates page. For any other information, please contact us for advice.

Made to measure gates - Click here to find out more

Other Useful Pages

You can find additional help in the Buying GuideOrdering GuideInstallation AdviceTechnical Advice and Case Studies pages.

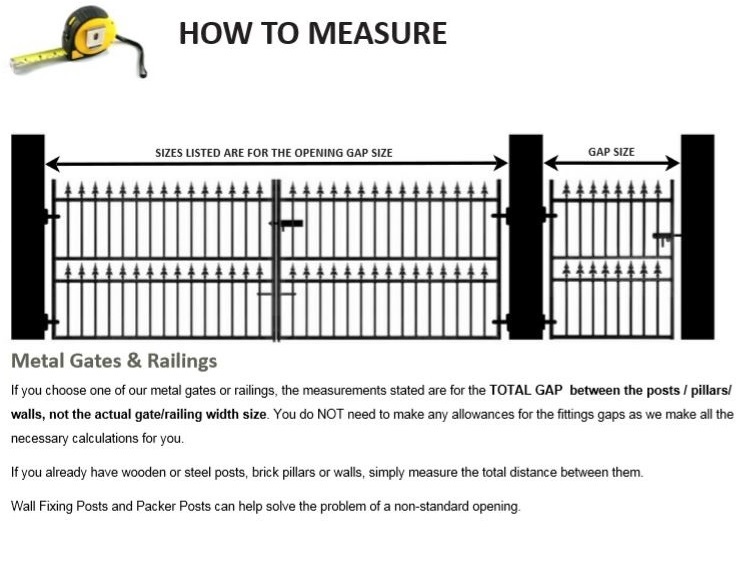

Winchester estate gates measuring guide

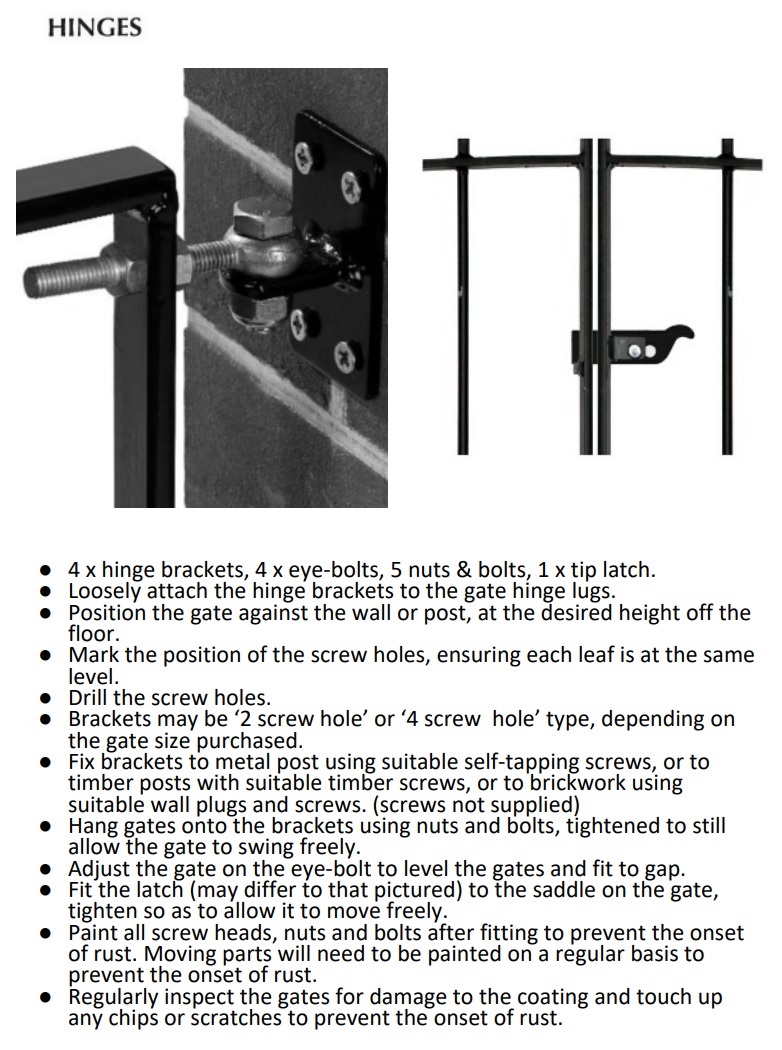

Winchester estate gates hinge and latch diagram
