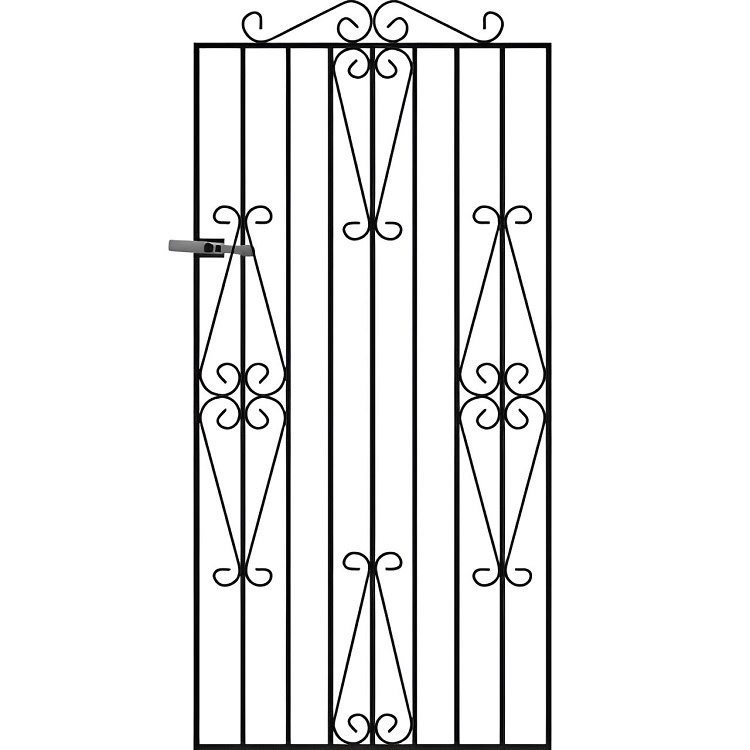

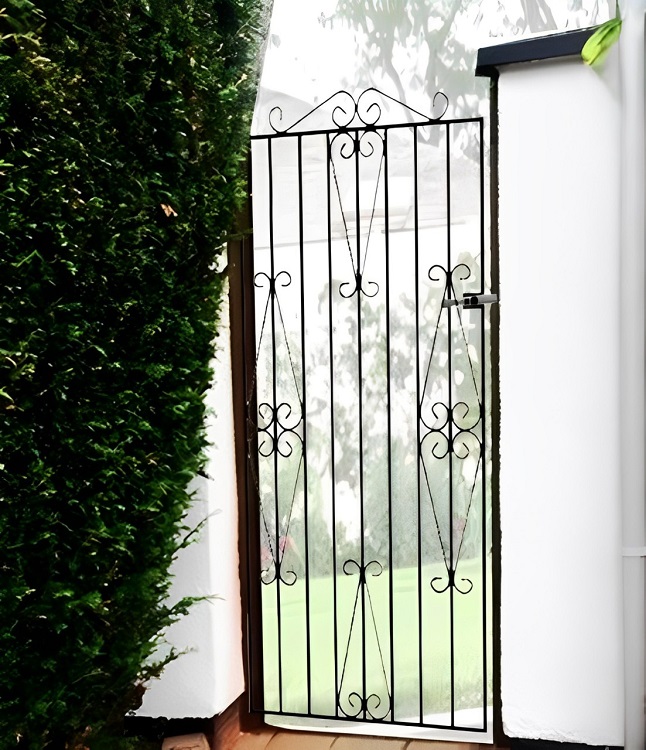

The Winchester Wrought Iron Style Metal Side Gate is a firm favourite amongst homeowners looking to provide a timeless design statement at an affordable price. Manufactured UK in a traditional style, the Winchester side gate features ornate scrollwork for improved aesthetic appeal whilst the solid infill bars and frame ensure strength and reliability. Suitable for a range of residential locations such as side access points, pathways and rear entrances to the garden, the gate is available to order online in choice of sizes, can be hinged left or right-handed depending upon site constraints and comes primed black (undercoat) ready for painting to the colour of your choice. Also included are adjustable surface mounted hinges and a universal latch mechanism making it perfect for DIY installations.

Wincheter Side Gate Specification

• Manufactured in the UK.

• 20mm x 8mm flat bar steel frames.

• 10mm diameter round metal infill bars.

• 10mm x 3mm wrought iron style scrollwork.

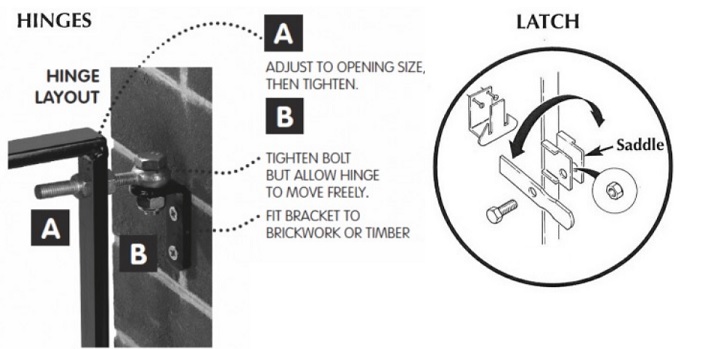

• Supplied with adjustable hinges and a universal latch.

• Black primed (undercoat) ready for painting before installation.

Height (once installed)

• 1830mm (6ft)

Ordering Sizes

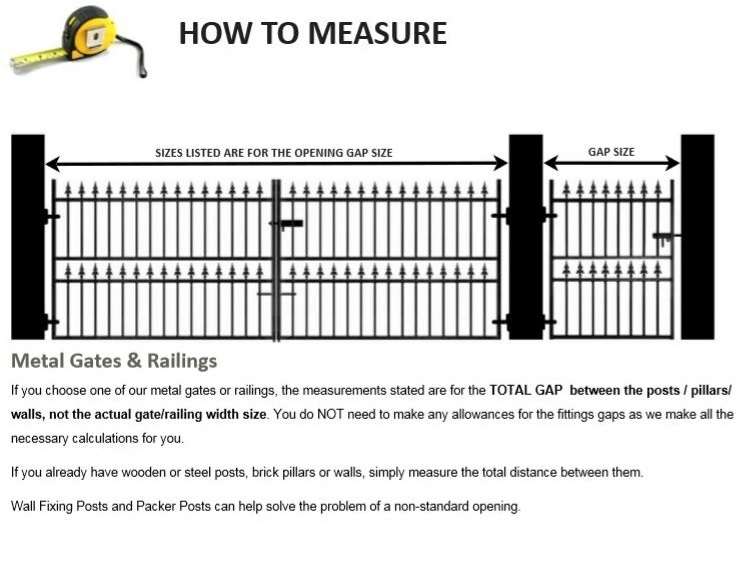

• Width: To determine the ordering size, measure the width of the opening between brickwork or supports. Make no further calculations as our "fits opening" width in the drop-down menu already incorporates the space required for the hinges and latch.

• Height: The "Height (once installed)" is measured from the ground to the top of the horizontal frame. This dimension already includes an allowance of 50mm (2”) for ground clearance. The top scroll is not included within this measurement.

Example

If the brickwork opening size measures 760mm you should order a gate to “fit opening 760mm”.

Do You Require Posts?

When metal posts are required to install the gate (due to a lack of appropriate masonry or support structure), you'll need to ensure there's enough space available for these components.

Example – A gate to fit an opening of 760mm combined with 2 x 50mm posts will need an overall space of 860mm.

Looking for a Powder Coated Finish?

Please complete our enquiry form for more information about our zinc-plated and black powder-coated paint options. We will happily provide you with more details and answer any questions.

Searching for More Information About Wrought Iron Style Metal Side Gates?

If you need help with ordering sizes please read our measuring guides. Alternatively, view the sample fitting instructions if you want to discover how they are installed.

We also have a FAQ section with answers to many common questions. Some of our other popular information pages include the ordering guide, buying guide, and technical advice sections.

For any other issue, please contact us for assistance.
