Winchester Wrought Iron Style Double Metal Driveway Gates | 3ft High

Winchester Wrought Iron Style Double Metal Driveway Gates | 3ft High

Handmade in the UK in a timeless design, the Winchester Wrought Iron Style Driveway Gates feature a solid steel framework, decorative scrollwork and include standard surface-mounted hinges, latch, and an in-ground drop bolt as standard.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

The Winchester Wrought Iron Style Double Metal Driveway Gates are worth your attention if you are seeking for a classical wrought iron styled design at an amazing price. Handmade in the UK, they are available to order online in a size to suit most domestic requirements, feature elegant scrolls and come with the adjustable hinges, latch, and drop bolt included as standard. Benefitting from a flat bar 20mm x 8mm framework, 10mm infill bars and a black primed (undercoat) paint applied to the steel, these wonderful double gates represent great value for money making them one of our best-selling designs.

Winchester Double Driveway Gates Specification

  • A straightforward design which will complement a wide range of residential UK architectural styles.

  • Handcrafted in the UK using quality solid steel components.

  • Available to purchase online in sizes ranging from 7ft 6" - 12ft (see drop down menu)

  • 20mm x 8mm flat bar frames, 10mm infill bars and 10mm x 3mm decorative wrought iron style scrollwork

  • Includes surface mounted adjustable hinges, latch and drop bolt.

  • Primed Black (undercoat) ready to be painted prior to installation.


Height (once installed)

  • 920mm (3ft)



Ordering Sizes

  • Width: To get the ordering width, just measure the distance between the pillars, walls, or pre-existing posts as the "fits opening" measurement shown in the drop-down menu already includes the space required for the hinges and latch.

  • Height: The “height once installed” dimension is measured from the ground to the top of the horizontal framework (the top scrolls are not included within this dimension). Within this measurement we have already included an allowance of 50mm (2”) for ground clearance.

Learn how to measure the opening for driveway gates here


If the opening with between walls is 7ft 6” you should select the gates that “fits opening” 7ft 6”.

Are Metal Posts Required?

If you need to install these items, please choose from the items shown in the options and accessories menu. Please remember that if selecting these items additional space will be required.

Example – Gates to fit an opening of 7ft 6" combined with 2 x 2" posts will require a total overall space of 7ft 10".



Looking for a Powder Coated Finish?

Please complete our enquiry form for more information about the zinc-plated and black powder-coated paint options available for wrought iron style metal driveway gates. We will happily provide you with more details and answer any questions.



Confused About Wrought Iron Style Metal Driveway Gates Ordering Sizes?

Please read the measuring guide if you are unsure what size you need to order, view our FAQs to find answers to common questions, or contact us if you have any other problems not covered. Our easy to understand buying guideordering guideinstallation advicetechnical help, and case studies pages cover other general subjects.

We can offer the Winchester driveway gate in a made to measure size. Click here to find our more details.



Winchester driveway gate measuring guide

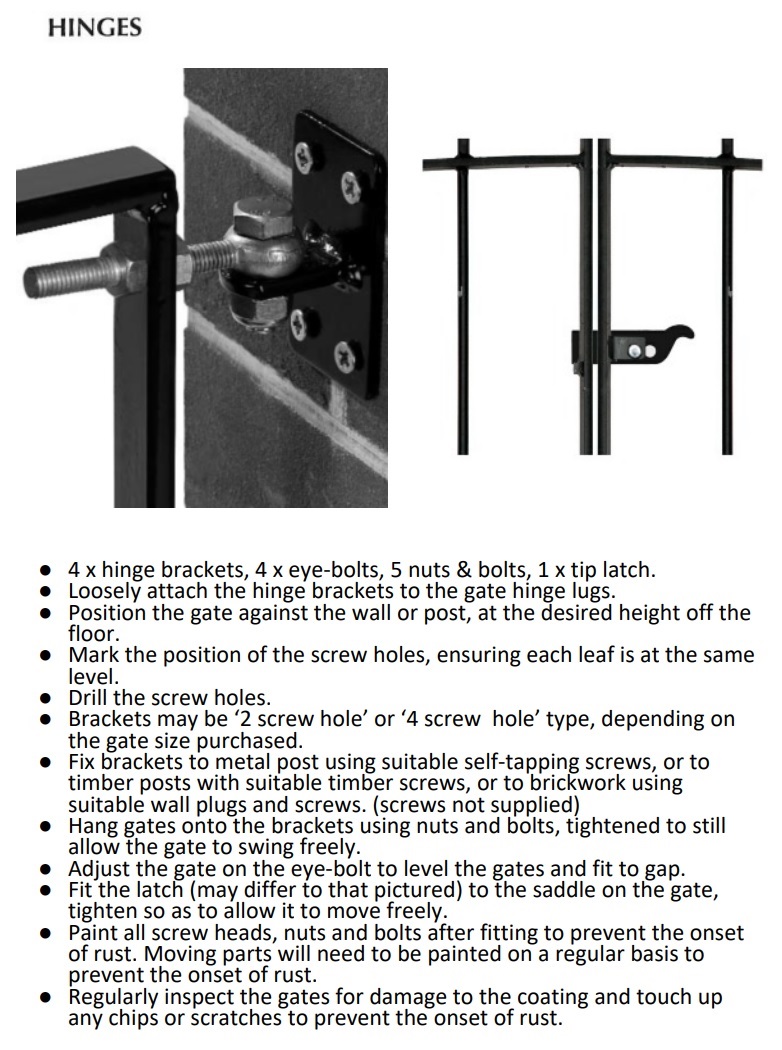

Winchester adjustable hinges and latch diagram
