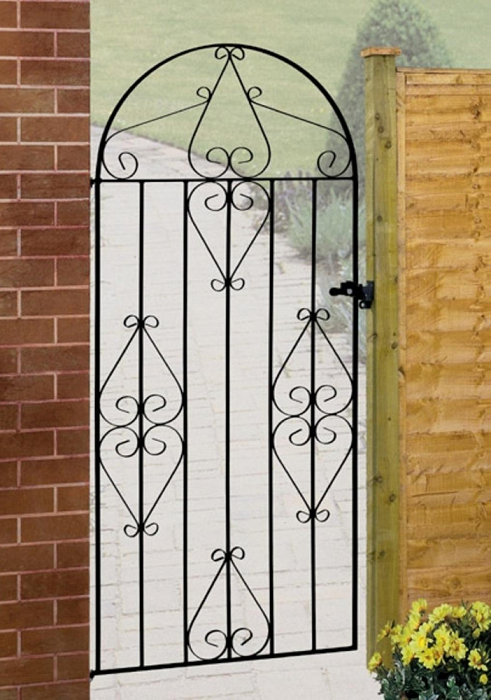

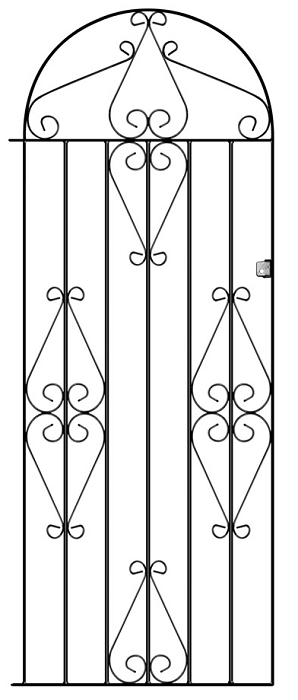

Classic Bow Top Wrought Iron Style Metal Side Gate

The Classic Bow Top Wrought Iron Style Side Gate benefits from a traditional arch profile and incorporates ornamental scrolls into the solid steel framework. It is available to buy online in various sizes and is excellent value for money.

Other Options & Accessories

The Classic Arched Wrought Iron Style Metal Side Gate will provide privacy and security to your home and garden at a price you can afford. This timeless gate is manufactured using solid steel components, is suitable for various residential locations and is available to order online in a choice of sizes to suit many standard openings. It features a traditional archtop profile, wrought iron style scrolls, and solid infill bars and includes surface-mounted hinges and a latch mechanism. The gate is ideal for easy DIY installation and can be mounted directly to various structures, including brickwork, metal, or timber posts. For improved protection against rust and corrosion, the Classic design is zinc-plated and powder-coated black.

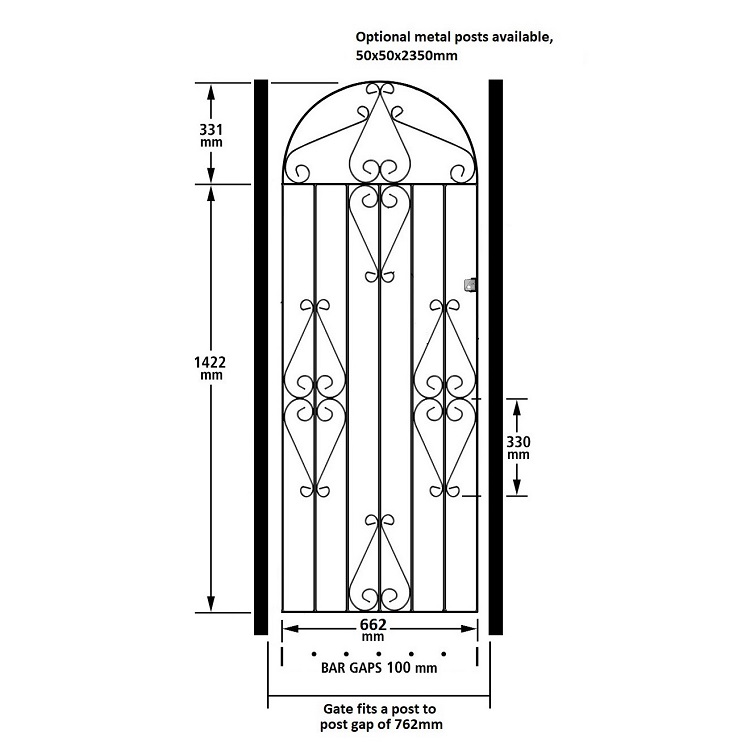

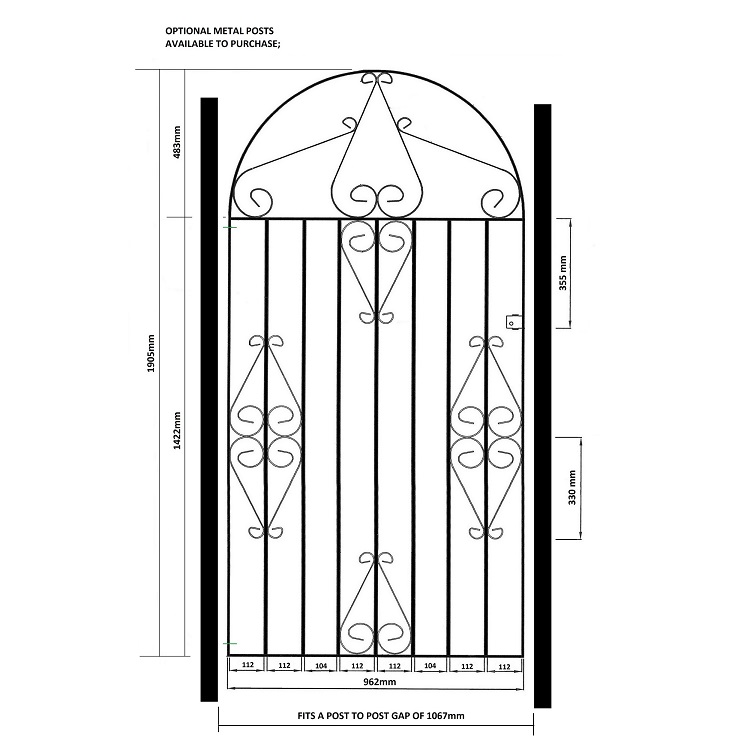

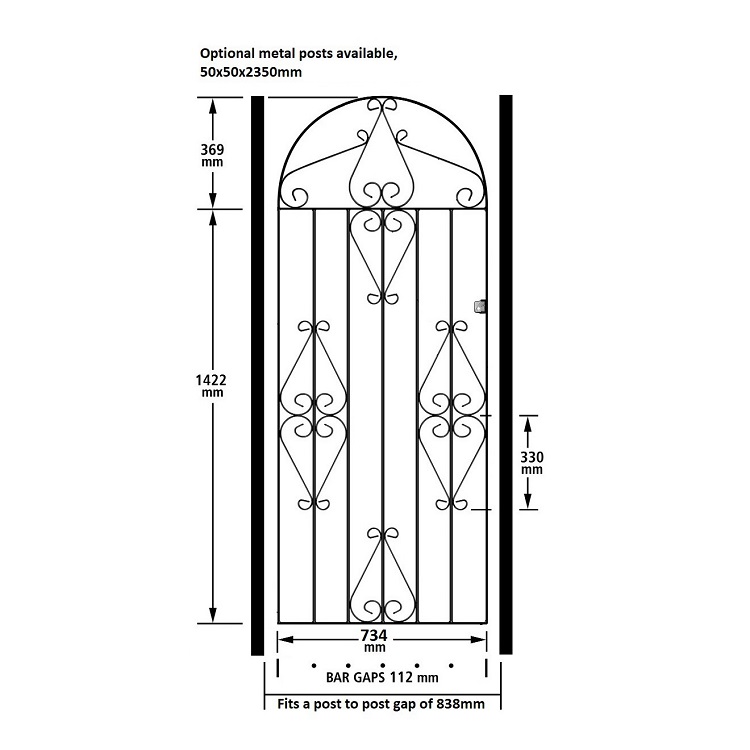

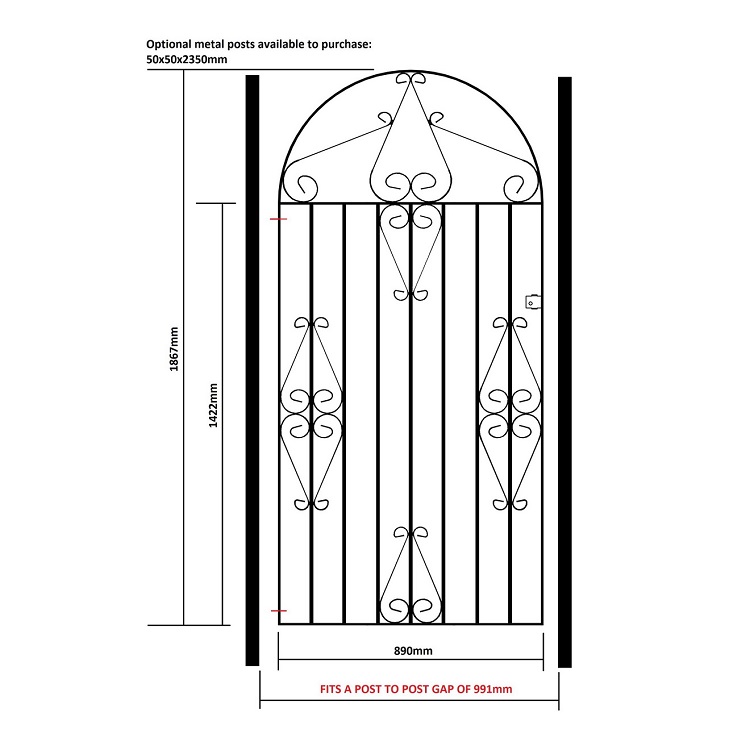

Classic Arched Metal Side Gate Specification

  • Simple and timeless archtop.

  • Provides security and privacy without compromising on aesthetics.

  • Manufactured using 20mm x 6mm metal frames and 10mm solid infill bars.

  • 10mm x 3mm decorative scrolls.

  • Supplied with fixed hinges and a universal latch.

  • Low maintenance zinc plated and black powder-coated paint finish.



Ordering Sizes

  • Width: Measure the gap between walls or existing posts to establish the ordering size. You do not need to make any further calculations as our "fits opening" measurement already includes the space required for the hinges and latch.

  • Height: The "physical height" measurement shown above does not include the space required for ground clearance. When installing the gate, we recommend you allow 50mm (2") clearance to the underside of the frame.

Read the measuring guide for help with sizes

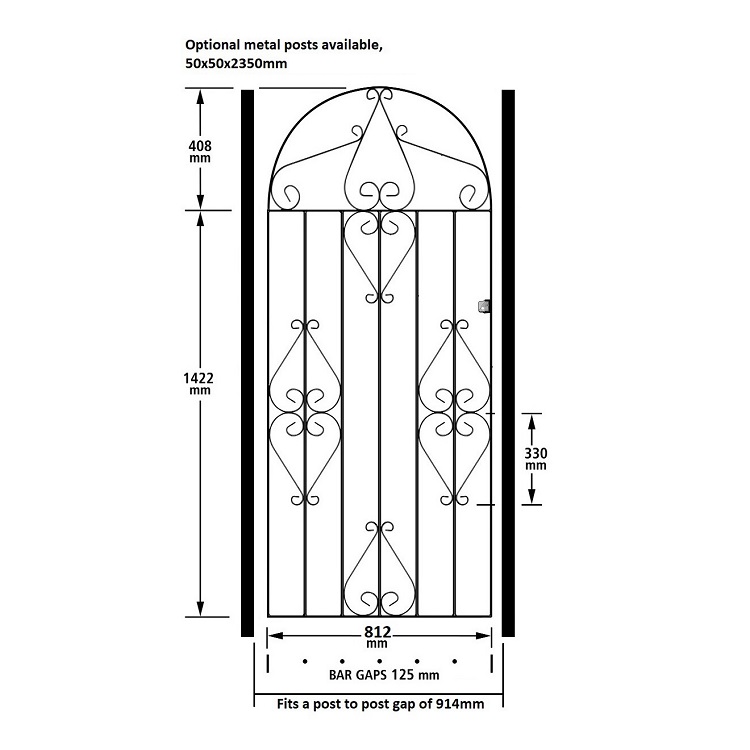

If the opening between your existing walls or posts is 914mm (3ft), you will need to order a gate to "fit opening 914mm (3ft)".

Do You Need to Install Metal Gate Posts?

For installations that require metal posts, it is important to remember that additional space will be required for these items.

Example – A gate to fit an opening of 3ft 3" combined with 2 x 2" posts will need an overall space of 3ft 7".



Looking for More Information About Our Wrought Iron Style Metal Side Gates?

Please read our easy to understand measuring guides if you are not sure how to choose the correct size. Alternatively, if you are looking for more information on how to install the gate, please take a look at the fitting instructions.

We have also provided you with a FAQ section where you can find answers to many common questions. Other help and information pages that may be of interest include the ordering guidebuying guide, and technical advice sections.

If you do not find the information required online, please feel free to contact us for support.



Classic bow top side gate measuring guide

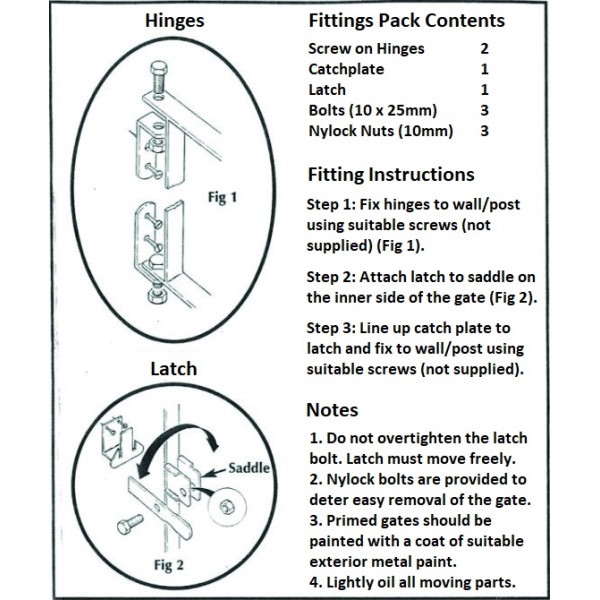

Classic bow top side gate fixed hinges

Classic bow top metal post instructions
