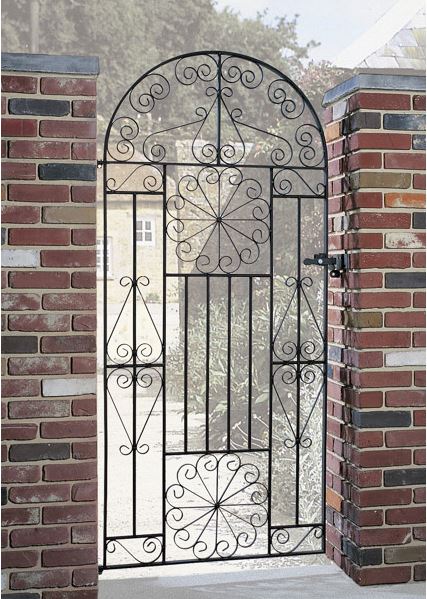

Regency Arched Wrought Iron Style Metal Side Gate

The Regency Wrought Iron Style Arched Metal Side Gate is an attractive and ornate design with several different scrolls of various types and sizes. It features a timeless arched top profile, solid steel construction and is suitable for a variety of residential applications. Representing excellent value, this high-quality gate design is available in a selection of sizes and will enhance security at an affordable price without compromising on aesthetic appeal.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

The Regency Wrought Iron Style Arched Metal Side Gate is a superb choice for property owners wanting to create a striking and elegant entrance. Boasting an elegant arched design, it is available in sizes to fit openings from 2ft 6" to 3ft 6" and features a welded steel frame comprising 20mm x 8mm flat bars, 10mm round metal infill bars, and 10mm x 3mm scrolls. Furthermore, for ease of installation, it includes surface-mounted adjustable hinges compatible with timber, metal, or masonry surfaces and a simple tip latch mechanism as standard.

Regency Arched Side Gate Specification

  • Crafted in the U.K.

  • Constructed with 20mm x 8mm flat bar steel frames.

  • 10mm diameter round metal infill bars.

  • 10mm x 3mm wrought iron style scrollwork.

  • Includes adjustable hinges and a universal latch.

  • Coated with black primer (undercoat), ready for painting before installation.



Ordering Sizes

  • Width: Measure the gap between your existing posts or brickwork. This measurement becomes the width for the gate you need to order. N.B. The "fits opening" measurement in the menu includes the spacing required to install hinges and the latch.

  • Height: This is gauged from floor level to the top of the arch and already includes for a ground clearance of 50mm (2").

View the measuring guide here


 If the distance between your current posts or brickwork totals 1000mm, order a gate specified as "fit opening 1000mm".

Installing Metal Posts?

If you installation includes metal posts, it's important to ensure you have additional space for these components.

Example - A gate designed for an opening of 1000mm mounted onto 2 x 50mm posts needs a total space of 1100mm.



Interested in a Powder Coated Finish?

Please complete our enquiry form for more information about our zinc-plated and black powder-coated paint options.



Need Assistance with Your Online Purchase of Wrought Iron Style Metal Side Gates?

We recommend that you consult our measuring guide if you are unsure which size gate will suit you best. You can also locate more information in our FAQ`s, buying guideordering guideinstallation guidetechnical advice, and case studies pages.

Click here to learn about of made to measure side gate options

If you require a size not displayed in our drop-down menu, learn more about our made-to-measure gates. Alternatively, please get in touch with us for further support if you have any other queries or concerns before purchasing online.


Regency arched side gate measuring guide

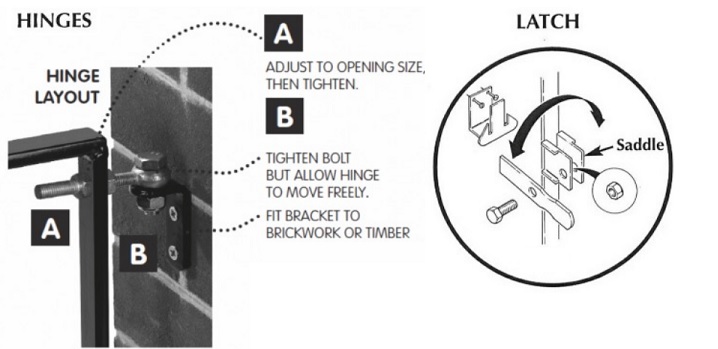

Regency arched side gate hinge and latch layout
