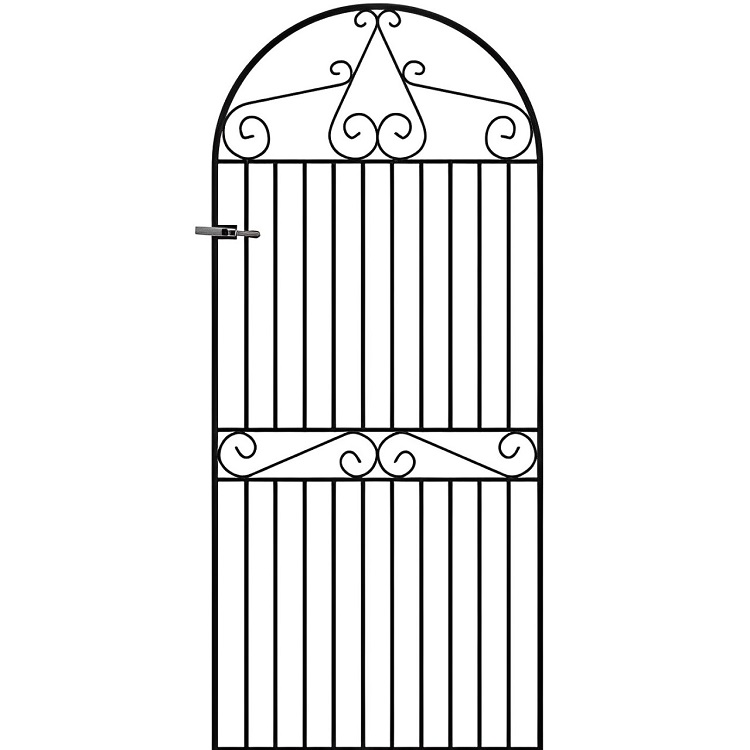

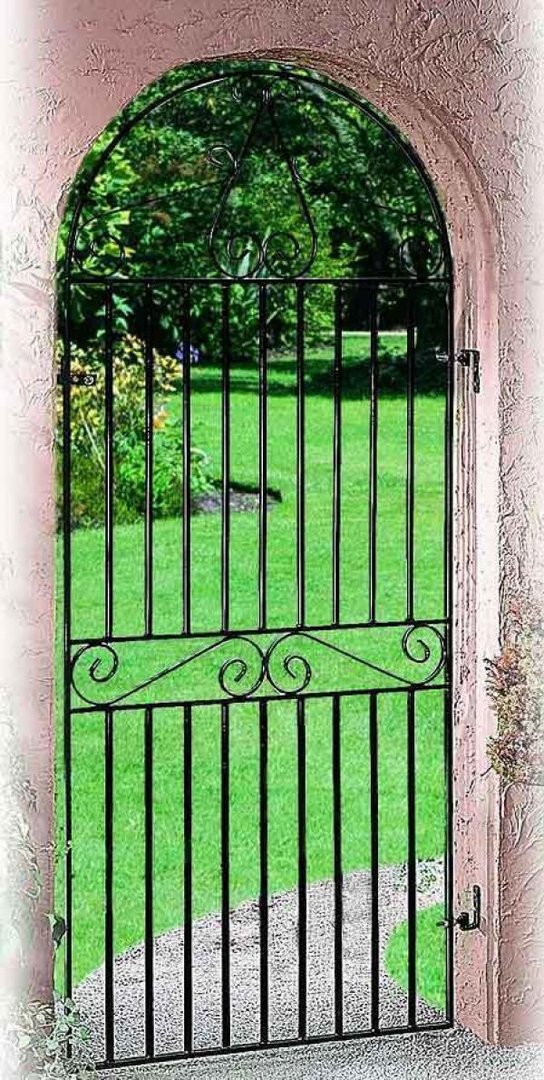

Marlborough Arched Wrought Iron Style Metal Side Gate

The Marlborough Arched Wrought Iron Style Side Gate is available to buy online in various sizes to suit any residential requirements. It benefits from a timeless arch top, solid steel components and elegant scrollwork for enhanced decorative effect.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

The Marlborough Arched Wrought Iron Style Metal Side Gate is available to buy online in a choice of sizes to suit many common residential openings. Constructed using solid steel components, the gate features a timeless arch top and decorative scrolls to achieve a traditional appearance and a very competitive price. Supplied primed black (undercoat) as standard, the Marlborough design is made up using 20mm x 8mm flat bar metal frames, 10mm infill bars and 10mm x 3mm decorative scrollwork. Included within the price are surface mounted adjustable hinges and a universal latch mechanism which allows the gate to be installed left or right hand hanging depending upon your individual requirements.

Marlborough Arched Metal Side Gate Specification

  • Visually appealing arch top.

  • Suitable for an array of home and garden locations.

  • Manufactured in the UK.

  • 20mm x 8mm solid metal framework and 10mm infill bars.

  • 10mm x 3mm decorative wrought iron style scrollwork.

  • Supplied with adjustable hinges and a universal latch.

  • Primed black (undercoat) ready for painting prior to installation.



Ordering Sizes

  • Width: Measure the distance between the brickwork or existing posts to determine the ordering width. Make no further calculations because the "fits opening" measurement in the drop-down box includes the space required for the hinges and latch.

  • Height: The "Height (once installed)" dimension is measured from the floor level to the top of the arch. This measurement already includes 50mm (2”) for ground clearance.

View the measuring guide - Click here


If the space between existing posts or brickwork measures 1000mm you should order a gate to “fit opening 1000mm”.

Do You Need to Install Posts?

For installations that need metal posts (due to a lack of suitable masonry or support structure), you will need to make sure that additional space is available for these items.

Example – A gate to fit an opening of 1000mm combined with 2 x 50mm posts will need an overall space of 1100mm.



Looking for a Powder Coated Finish?

Please complete our enquiry form for more information about our zinc-plated and black powder-coated paint options. We will happily provide you with more details and answer any questions.



Looking for More Details About Our Wrought Iron Style Metal Side Gates?

Please read our measuring guide if you need help with ordering sizes or view the FAQ to find answers to your general questions. We also cover other topics in the buying guideordering guideinstallation guidancetechnical advice, and case studies pages.

Learn more about our made to measure side gates - Click here

Alternatively, if your opening is a non-standard size, please go to our made to measure gates page or contact us if you have additional queries.



Marlborough arched side gate measuring guide

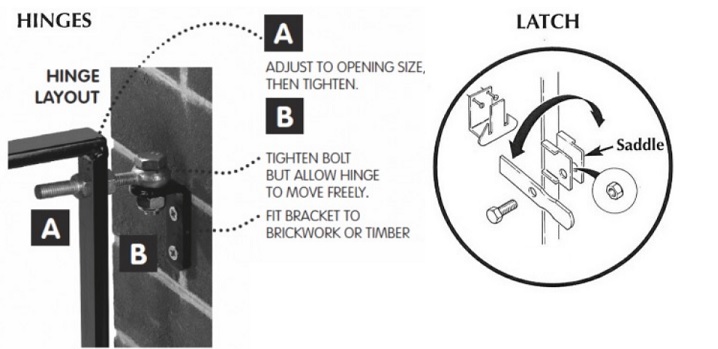

Marlborough arched side gate adjustable hinges and latch layout
