Marlborough Wrought Iron Style Bi Folding Metal Driveway Gates | 3ft High

Marlborough Wrought Iron Style Bi Folding Metal Driveway Gates | 3ft High

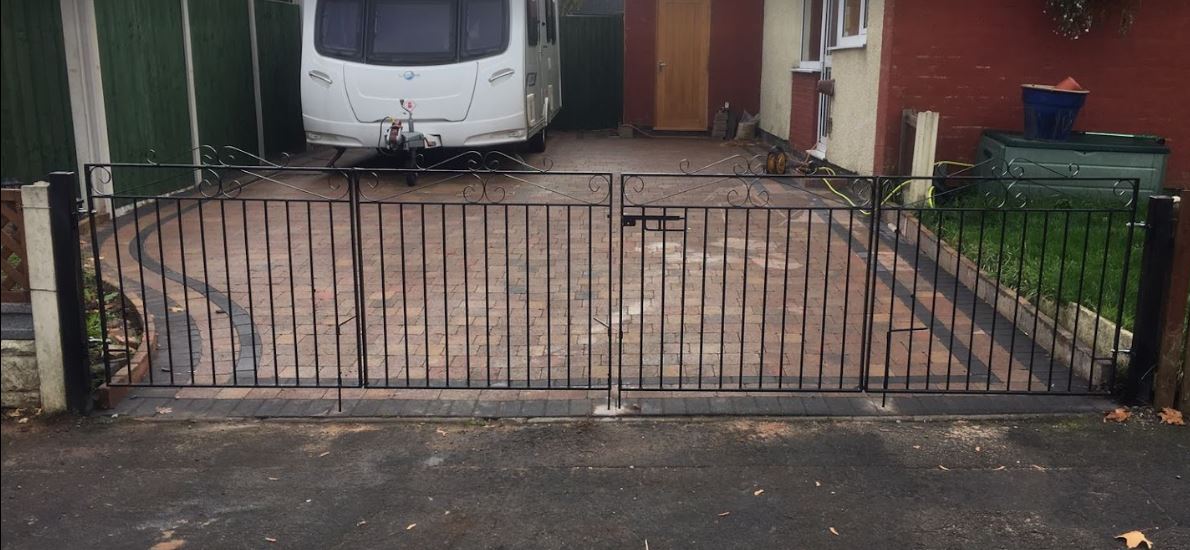

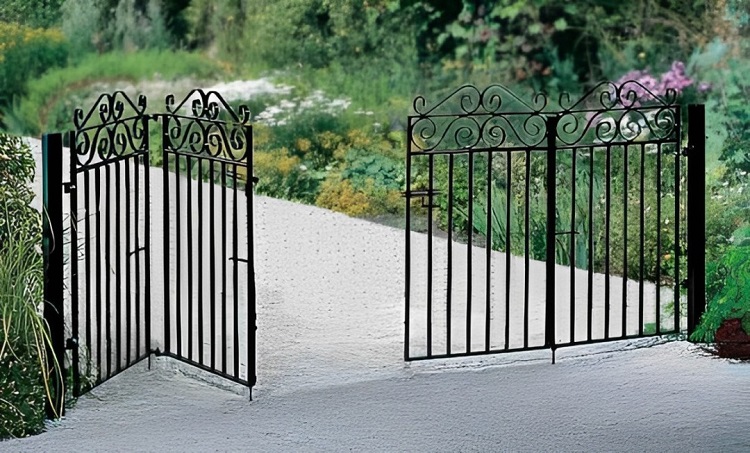

The space-saving Marlborough Bi-Folding Wrought Iron Style Driveway Gates are perfect for securing the main entrance of your home even if the drive slopes or has limited space. They feature a double hinge system meaning the gates take up only half the room a standard hinged design would require.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

The Marlborough Bi-Folding Wrought Iron Style Metal Driveway Gates are a great space-saving option for any property owner with restricted space to open and close the gates. They are perfect for short driveways, sloping ground or any other location where a reduced swinging radius will prove beneficial. Handmade in the UK to an industry-leading standard, the Marlborough bi-fold design represents exceptional value for money compared to similar options. Featuring a double-hinged design, they need only half the space of a standard 50/50 split configuration allowing you to maximise the use of the driveway space available. Constructed from 20mm x 8mm flat bar solid steel frames, 10mm infill bars and 10mm x 3mm wrought iron style scrolls, the simple, timeless appearance will blend well with any residential architecture. Available to buy online in sizes to suit most domestic requirements, the Marlborough bi-folding gates include surface mounted adjustable hinges and latch and drop bolts. They are supplied in a black primer (undercoat), ready for painting to the colour of your choice before installation.

Marlborough Bi-Folding Driveway Gates Specification

  • Saving space bi-folding design is ideal for short driveways and sloping ground.

  • Made in the UK by professional craftsmen using high-quality materials.

  • 20mm x 8mm flat bar solid steel framework

  • Metal infill bars with a diameter of 10mm.

  • Wrought iron style 10mm x 3mm decorative scrolls.

  • Solid steel construction.

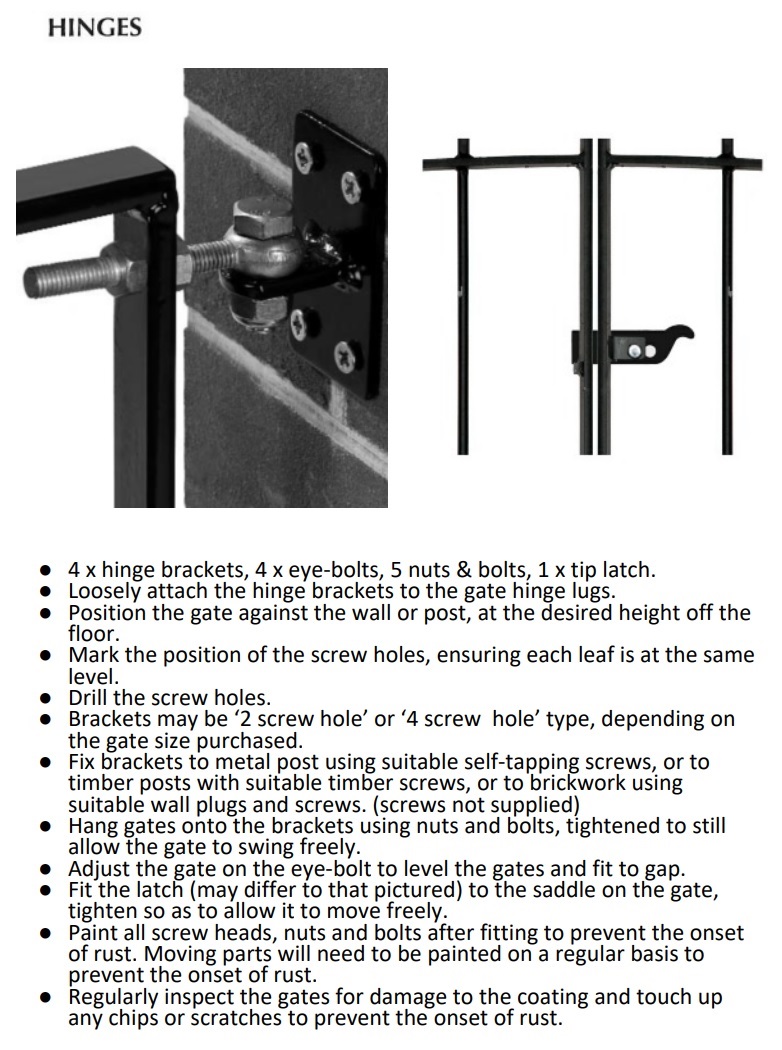

  • The gates include adjustable hinges, a latch, and drop bolts.

  • Black primer (undercoat) - You must paint all exposed surfaces with exterior grade paint before installation.


Height (once fitted)

  • 914mm (3ft)



Ordering Sizes

  • Width: To calculate the size of the opening, measure the distance between the walls or existing posts. This measurement will be the size you need to order. No further allowances are necessary since our "fits opening" measurement in the options menu already includes the space required for the hinges and latch.

  • Height: The "fitted height" is the size of the gates after they have been installed and includes a 50mm allowance for ground clearance (2"). The distance is measured from the ground to the top of the horizontal framework. This measurement doesn't include the topmost scrollwork above this.

View the measuring guide for help with ordering sizes


If the gap between existing posts or brick pillars is 8ft 6", the gates should be ordered to "fit opening 8ft 6".

Is it Necessary to Install Metal Posts?

When metal posts are required (due to a lack of walls or pillars), you must consider the additional space needed for these items.

Example – Gates to fit an opening of 8ft 6" combined with 2 x 2" posts will require a total overall space of 8ft 10".



Looking for a Powder Coated Finish?

Please complete our enquiry form for more information about the zinc-plated and black powder-coated paint options available for wrought iron style metal driveway gates. We will happily provide you with more details and answer any questions.



Do you Require Assistance or Advice Before Ordering Driveway Gates Online?

Before buying online, please read our measuring guide or view our FAQ section if you need more information. You can also find a broad range of topics covered in our buying guideordering guideinstallation guidancetechnical advice, and case studies pages.

Learn about our made to measure gates here

If you have not found the size you need, read about our made to measure service or contact us today if you have any other queries concerning the Marlborough Bi-Folding Wrought Iron Style Metal Driveway Gates.



Marlborough bi fold driveway gates measuring guide

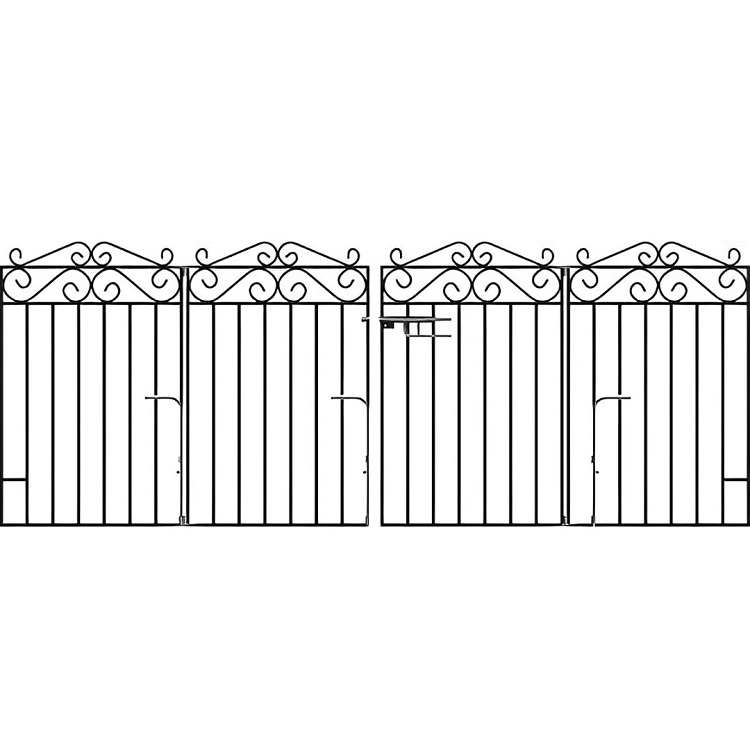

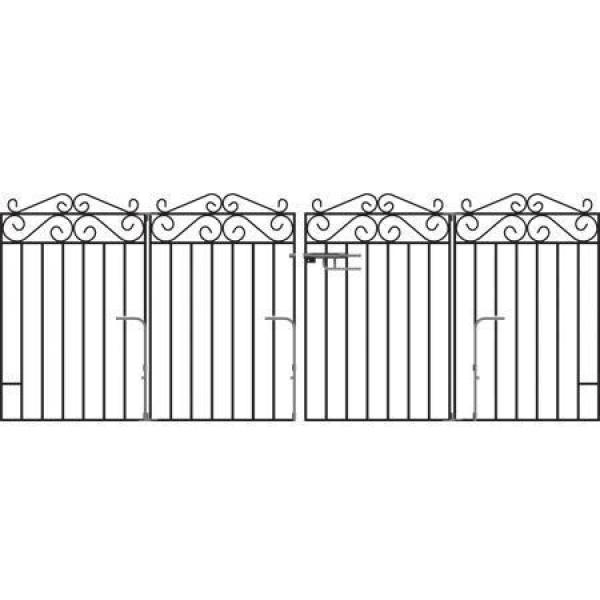

Bi folding gates hinge and latch layout diagram
