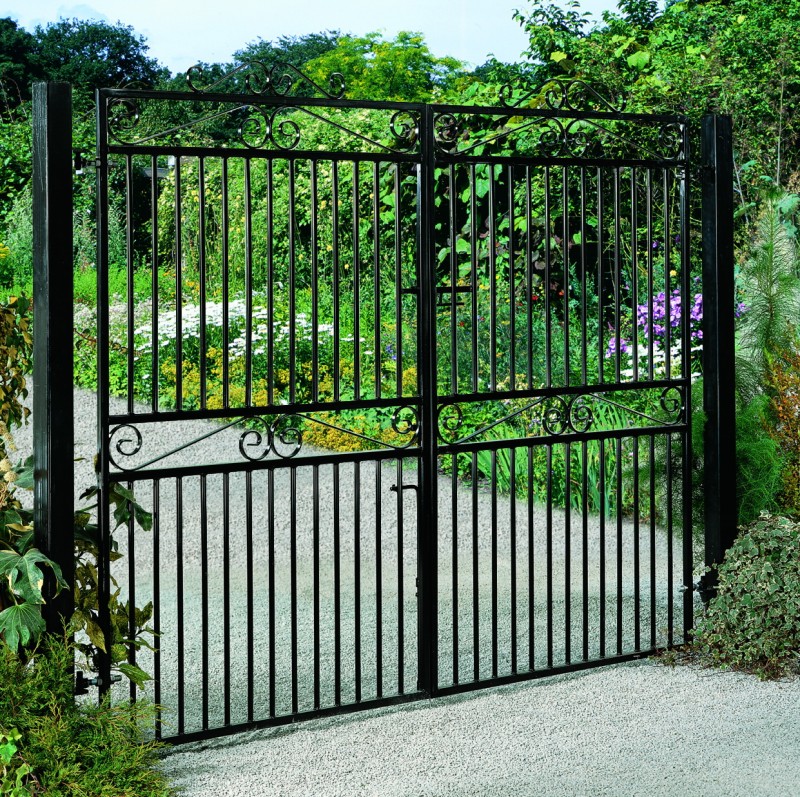

Marlborough Wrought Iron Style Estate Gates

The Marlborough Wrought Iron Style Estate Gates are exceptional value for money and are handcrafted in the UK in a classic design, making them an excellent choice for any residential driveway entrance.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

The Marlborough Wrought Iron Style Metal Estate Gates are a practical and economical way to secure your property's main driveway entrance at a competitive online price. Manufactured in the UK using high quality materials, the gates have a timeless overall appearance enabling them to be fitted to a wide range of property types. Available to order online in a range of opening widths between 7ft 6” though to 12ft, the Marlborough design stands at 6ft in height once installed and will therefore provide adequate levels of security and privacy giving you peace of mind your home will remain safe from the threat of criminals and trespassers. Constructed using 25mm x 25mm welded box section metal frames,16mm tube infill bars and 10mm x 3mm decorative wrought iron style scrolls. Supplied complete with easy to install surface mounted adjustable hinges which are suitable for mounting to any adequate support structure, the gates also include a simple to operate latch mechanism and in ground drop bolt. Primed black (undercoat), it is important to note that the Marlborough double gates will need to be painted prior to installation to ensure proper levels of protection against rust and corrosion is achieved.

Marlborough Estate Gates Specification

  • Simple no nonsense styling.

  • Available to buy online in a choice of sizes to suit most residential requirements.

  • Sturdy metal frames and infill bars.

  • Manufactured in the UK.

  • Attractive wrought iron style decorative scrollwork provides added visual appeal

  • 25mm x 25mm box section steel framework.

  • 16mm tube metal infill bars.

  • 10mm x 3mm decorative wrought iron style scrolls

  • Supplied with adjustable hinges, latch and drop bolt.

  • Primed black (undercoat) – All exposed metal surfaces must be painted prior to installation using a high-quality exterior grade paint.


Height (once fitted)

  • 1830mm (6ft)



Extras (available as an option)

If you'd like to incorporate any of the following features, please feel free to contact us for pricing.

  • Zinc plated (electro galvanised) and black powder coated paint finish.

  • Heavy duty mortise lock (with handle and keys).

  • Pad lockable drop bolts.



Ordering Sizes

  • Width: The "fits opening" dimension shown in the drop-down menu already includes the space necessary for the hinges and latch. To establish the size you need to order simply measure the gap between your existing brickwork or supports and this will be the size you need to order. No other calculations are necessary.

  • Height: The “height once fitted” measurement makes an allowance of 50mm (2”) for ground clearance. This dimension is measured from ground level to the top of the horizontal framework. The top scrolls above the uppermost horizontal frame are not included within this measurement.

Learn how to measure the opening correctly

Ordering Example

If the gap size between walls measures 12ft you should order the gates to “fit opening 12ft”.

Do you Need to Order Metal Posts?

If the gates are to be freestanding away from any masonry support structure, then you will need to purchase appropriate sizes metal posts. Please note that in these instances you will need to factor in the additional space taken up by these items.

Example – Gates to fit an opening of 2740mm combined with 2 x 100mm posts will require a total overall space of 2940mm.



Looking for Help and Advice Before Ordering?

Discover more information about how to select the correct sizes gates by reading the measuring guide or if you have not found the size you need, please refer to our made to measure service. For any other query relating to the Marlborough estate gates browse through our frequently asked questions page of contact us for support.

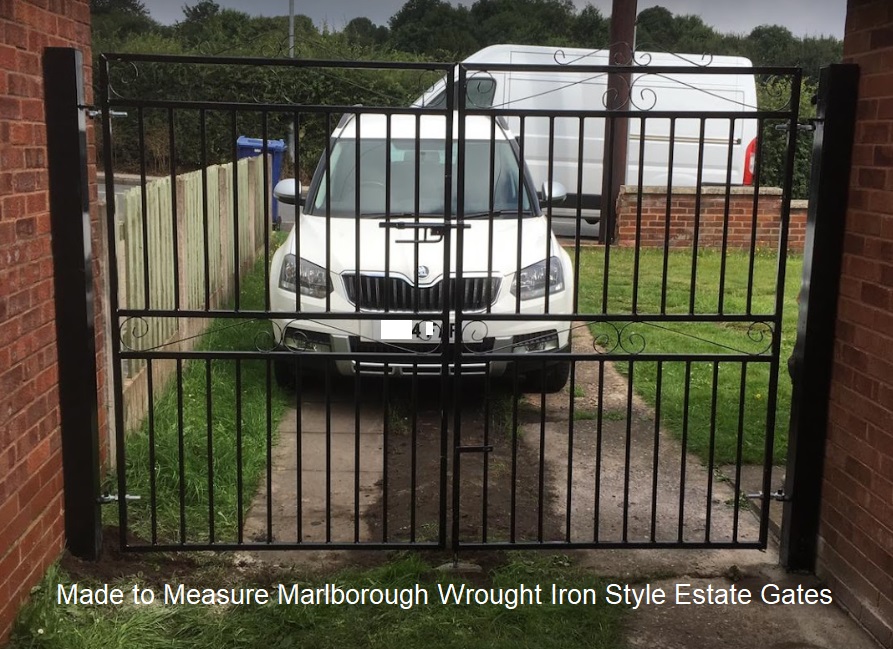

Made to measure gates are available

Other Useful Pages

You can find additional help and advice online within our Buying GuideOrdering GuideInstallation AdviceTechnical Advice and Case Studies pages.

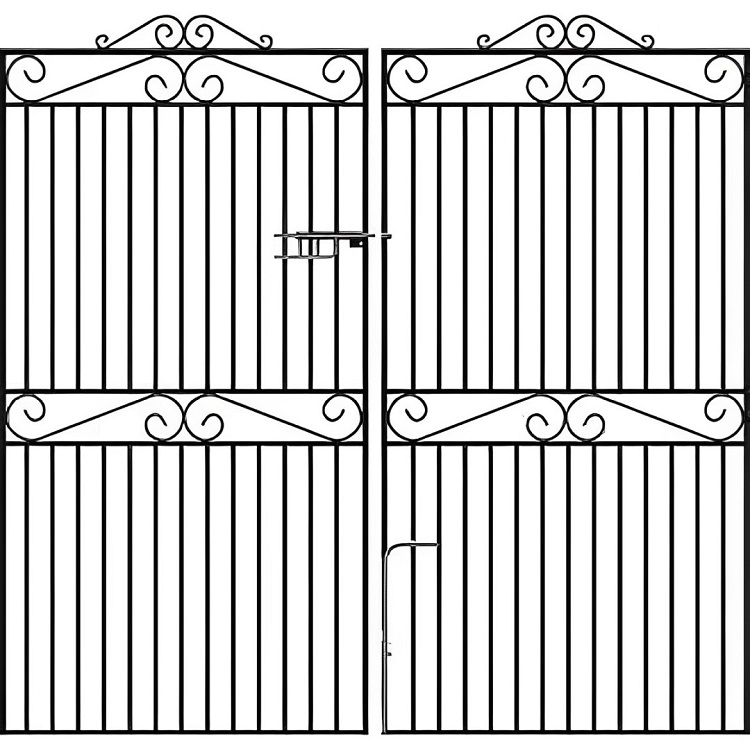

Marlborough estate gates measuring guide

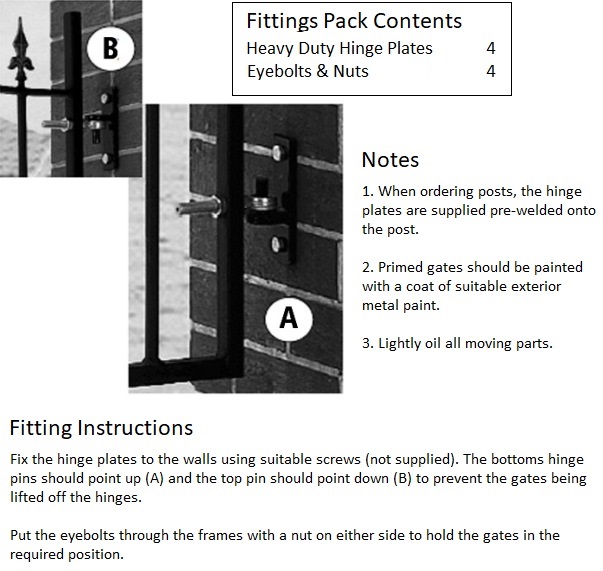

Marlborough heavy duty hinges diagram
