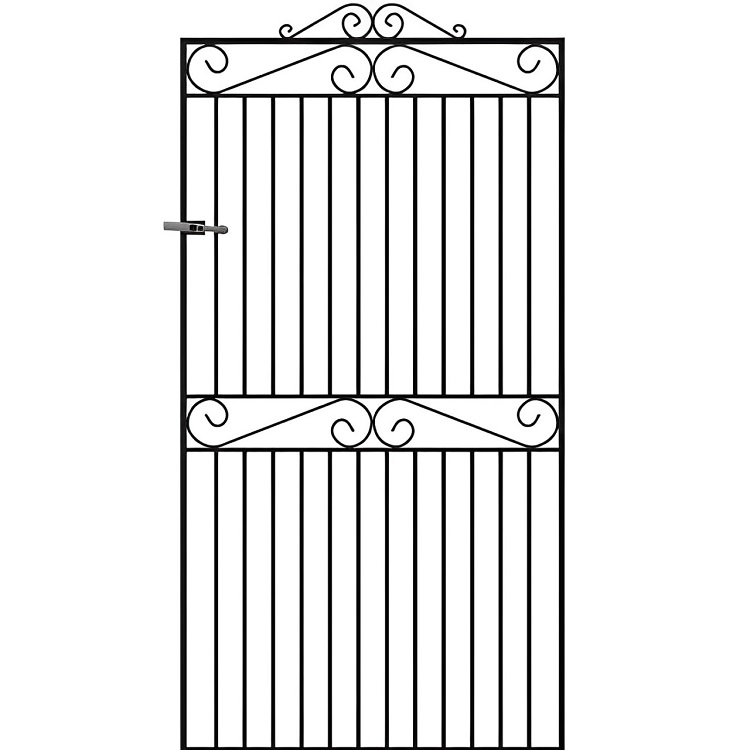

The Marlborough Wrought Iron Style Metal Side Gate is one of our best-selling designs thanks to the timeless design elements and competitive price structure. Suitable for many locations around the home and garden, the gate is handmade in the UK from solid steel components to ensure strength and durability whilst the surface mounted adjustable hinges and latch allow for easy DIY installation to a variety of masonry structures and metal or wooden posts. Supplied primed black (undercoat) as standard, the gate features 20mm x 8mm flat bar steel frames, 10mm infill bars and 10mm x 3mm decorative scrollwork.

Marlborough Metal Side Gate Specification

• Available in a choice of popular sizes.

• Timeless appearance.

• 20mm x 8mm solid steel frames

• 10mm diameter round metal infill bars

• 10mm x 3mm wrought iron style scrollwork

• Manufactured in the UK to exacting tolerances.

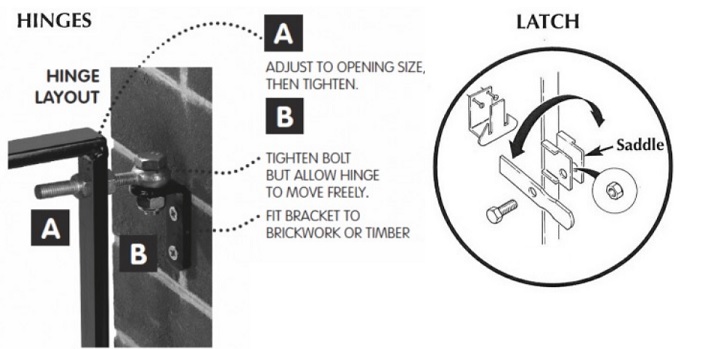

• Supplied with adjustable hinges and a universal latch.

• Suitable for hanging left or right handed depending upon your requirements.

• Primed black (undercoat) ready for painting prior to installation.

Height (once installed)

• 1830mm (6ft)

Ordering Sizes

• Width: To establish the size to order, simply measure the distance between brick walls or existing posts. You do not need to make any other allowances as our "fits opening" width shown in the drop-down menu already includes the space required for the hinges and latch.

• Height: The "Height (once installed)" is measured from the ground to the top of the horizontal frame. This measurement includes 50mm (2”) for ground clearance but does not include the height of the scrollwork on top of the gate.

Example

If the distance between existing posts or brick walls measures 1220mm you should order a gate to “fit opening 1220mm”.

Do You Need to Install New Posts?

When metal posts are required to install the gate (due to the absence of masonry or suitable support structure), you will need to ensure that there is adequate space is available for these items.

Example – A gate to fit an opening of 1220mm combined with 2 x 50mm posts will need an overall space of 1320mm.

Looking for a Powder Coated Finish?

Please complete our enquiry form for more information about our zinc-plated and black powder-coated paint options. We will happily provide you with more details and answer any questions.

Do You Need Extra Help & Advice Before Purchasing a Wrought Iron Style Metal Side Gate ?

View the measuring guide if you need help selecting the right size gate. You can also discover find answers to common questions on our FAQ page. We also provide you with lots of other information in the buying guide, ordering guide, installation guidance, technical advice, and case studies pages.

If you have not been able to find the exact size gate you need, go to our made to measure gates category. If you have any other concerns, please contact us for guidance.
