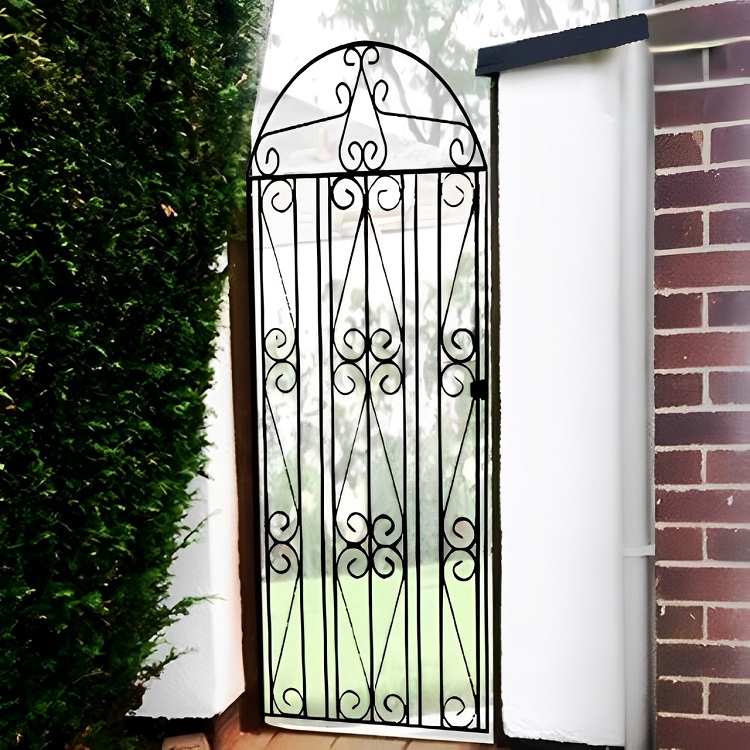

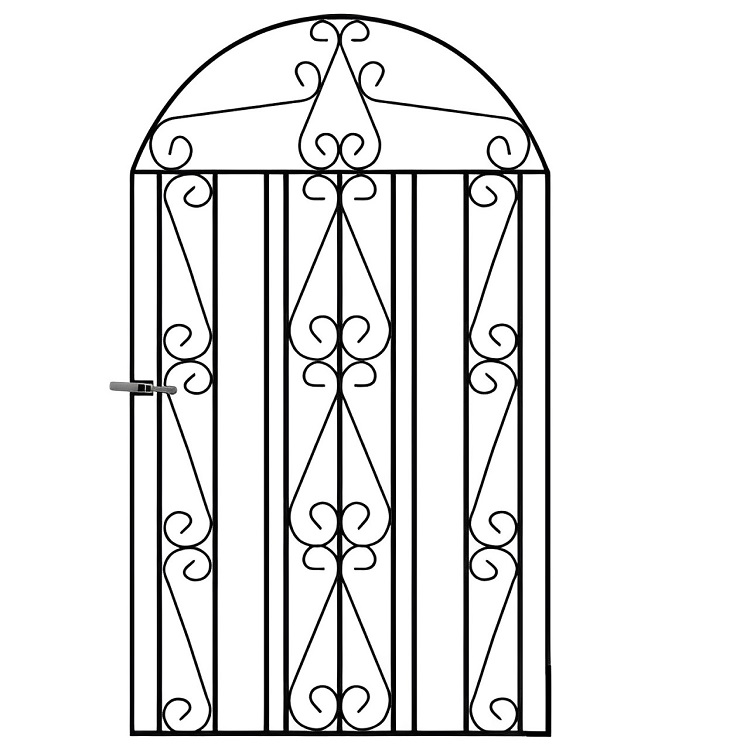

The Buckingham Arched Wrought Iron Style Metal Side Gate boasts a classic arch top paired with ornamental scrollwork, which delivers a beautiful aesthetic at an affordable online price. Carefully handcrafted in the UK, the Buckingham design uses solid 20mm x 8mm flat bar frames, 10mm round infill bars, and intricate 10mm x 3mm scrollwork for its construction, whilst the surface-mounted hinges and latch allow for easy DIY installation.

Buckingham 6ft High Arched Metal Side Gate Specification

• Attracitve arch top design .

• Made in the UK.

• 20mm x 8mm solid steel frames.

• 10mm metal infill bars.

• 10mm x 3mm intricate scrollwork.

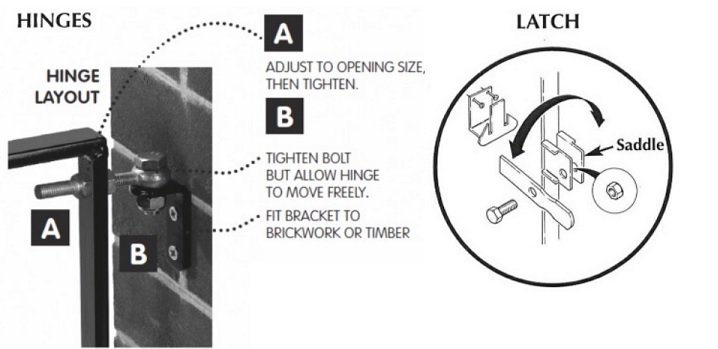

• Comes with adjustable hinges and a universal latch.

• Pre-painted with a black primer (undercoat).

Ordering Sizes

• Width: To find the ordering size, measure the gap between walls or posts. There's no need to adjust this measurement as the "fits opening" size shown in the menu already accounts for the space required for the hinges and latch.

• Height: The "Height (once installed)" measurement is the approximae distance from the ground to the top of the arch. This includes a 50mm (2") allowance for ground clearance. Please note that due to the unique shape of the arch, the heights are subject to minor variations depending on the width you order.

Example

If the distance between your brickwork is 1070mm, you should order a gate that reads "fit opening 1070mm".

Do You Require Posts for Installation?

There may be instances where metal posts are necessary for the gate's installation. In these situations, you must account for the additional space these components will occupy.

Example: If you order a gate that fits an opening of 1070mm and combine it with 2 x 50mm posts, the total space you require is 1170mm.

Considering a Powder Coated Finish?

If you want to learn more about our zinc-plated and black powder-coated finishes, please complete our enquiry form.

Seeking More Information About Wrought Iron Style Metal Side Gates?

Before placing an order you can access resources like the measuring guide and the FAQ page for supplementary information. Additionally, explore our buying guide, ordering guide, installation guide, technical advice, and case studies pages.

If you haven't found the size you need, please visit our made-to-measure page or contact us if you have any further queries.
