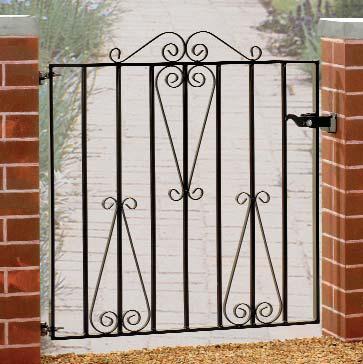

Winchester Wrought Iron Style Metal Garden Gate

The Winchester Garden Gate is suitable for a range of pedestrian entrances where providing a physical security barrier will benefit the property owner. Handmade in a traditional wrought iron style, this timeless metal gate design is available in a choice of sizes and is outstanding value for money.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

The Winchester Wrought Iron Style Metal Garden Gate is affordable, durable and visually appealing, making it a popular choice with homeowners looking to add a cost-effective physical security barrier to any pedestrian entrances around their homes and gardens. Handmade from solid steel components, it features a 20mm x 8mm welded frame, 10mm metal infill bars and attractive scrolls, providing enhanced aesthetic appeal. Easy to install, the gate is available in a choice of popular size options and includes a pair of surface-mounted hinges and a latch mechanism as standard, enabling it to be attached directly to various suitable surfaces, including metal, masonry and wood.

Winchester Garden Gate Specification

  • Manufactured in the UK from high-grade steel components.

  • Available in a selection of standard-size options.

  • Decorative 10mm x 3mm metal scrolls.

  • 20mm x 8mm flat steel bar framework.

  • 10mm round metal infill bars.

  • Supplied complete with adjustable hinges and a universal latch.

  • Suitable for left or right-hand hanging.

  • Primed black (undercoat).


 Fitted Height

  • 920mm (3ft) + top scrolls



Ordering Sizes

  • Width: The "fits opening" size displayed in the drop-down menu already includes the space required for the hinges and latch. For further clarification, refer to the example below.

  • Height: The "fitted height" already includes an allowance of 50mm (2") for ground clearance. This measurement is taken from ground level to the top of the horizontal frame. The top scroll is not included in this measurement.

View the measuring guide if you need help choosing the right size


If the width of your opening between your brick walls measures 760mm, you should select a gate that "fits an opening of 760mm".

Do You Need to Install Metal Gate Posts?

If you need to install metal posts, you must factor in the extra space required for these components.

Example – A garden gate to fit an opening of 760mm combined with 2 x 50mm posts will need an overall space of 860mm.



Looking for a Powder Coated Finish?

Please complete our enquiry form for more information about our zinc-plated and black powder-coated paint options. We will happily provide you with more details and answer any questions.



Do You Need More Information About Garden Gates?

Please see our measuring guide or head to the FAQ area if you require extra details before purchasing online. We also offer more general topics in the buying guideordering guideinstallation guidancetechnical advice, and case studies section.

We have a made to measure service available - Click here to find out more

Alternatively, if you cannot find the size you need to fit the space between your walls, please read more about our made-to-measure service or get in touch if you have any other questions.



Measuring Diagram

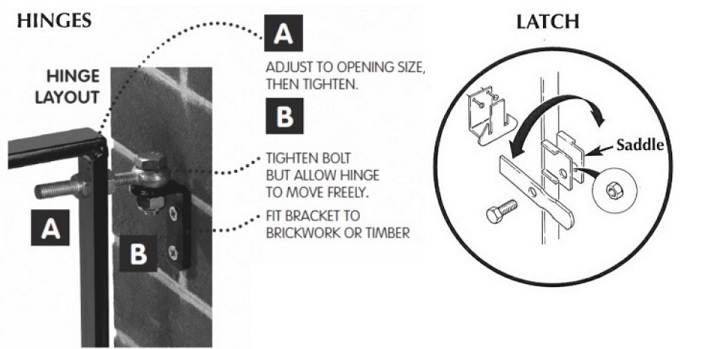

Adjustable hinges and latch fitting diagram
