Manor Flat Top Wrought Iron Style Double Metal Driveway Gates

Manor Flat Top Wrought Iron Style Double Metal Driveway Gates

The Manor Flat Top Double Metal Driveway Gates are a simple and cost-effective way to secure the entrance of your driveway. Suitable for openings between 7ft - 12ft, they feature a solid steel construction, include ball top finials and have a hardwearing zinc plated and black powder coated paint finish as standard.

Other Options & Accessories

The Manor Flat Top Wrought Iron Style Driveway Gates will significantly add to any residential driveway entrance. Featuring a timeless design, these superb value double gates are carefully constructed to a high standard and include a substantial 25mm x 10mm flat bar solid steel framework, 12mm diameter round metal infill bars and a single row of ball top finials mounted on top of the upper horizontal rail. They are pre-finished with a zinc-plated and black powder-coated paint and include surface-mounted hinges, a latch, and a drop bolt as standard, making them the ideal choice for mounting directly to various surfaces such as brickwork, timber or metal posts.

Manor Driveway Gates Specification

  • The simple design will suit a wide range of property types.

  • Flat bar solid steel 25mm x 10mm framework

  • 12mm diameter round metal infill bars.

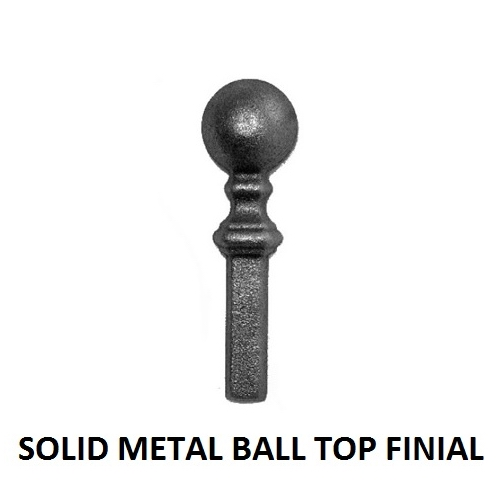

  • A single row of ball top finials provides additional aesthetic appeal.

  • Includes adjustable hinges, a latch, and a drop bolt as standard.

  • Low maintenance zinc plated (electro-galvanised) and black powder-coated paint finish.


Physical Height

  • 914mm



Ordering Sizes

  • Width: To establish the size you need to order, measure the gap between existing walls or posts. You do not need to make any allowances because our "fits opening" measurement already includes the space necessary for the hinges and latch.

  • Height: This measurement refers to the actual height of the gates and is measured from the underside of the framework to the top of the finials. When installing the driveway gates, we recommend you leave 50mm (2") for ground clearance.

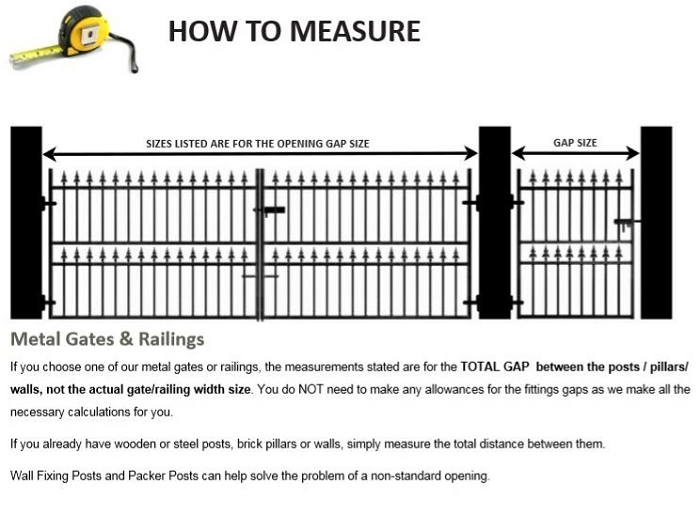

Review the measuring guide for help with oredering sizes

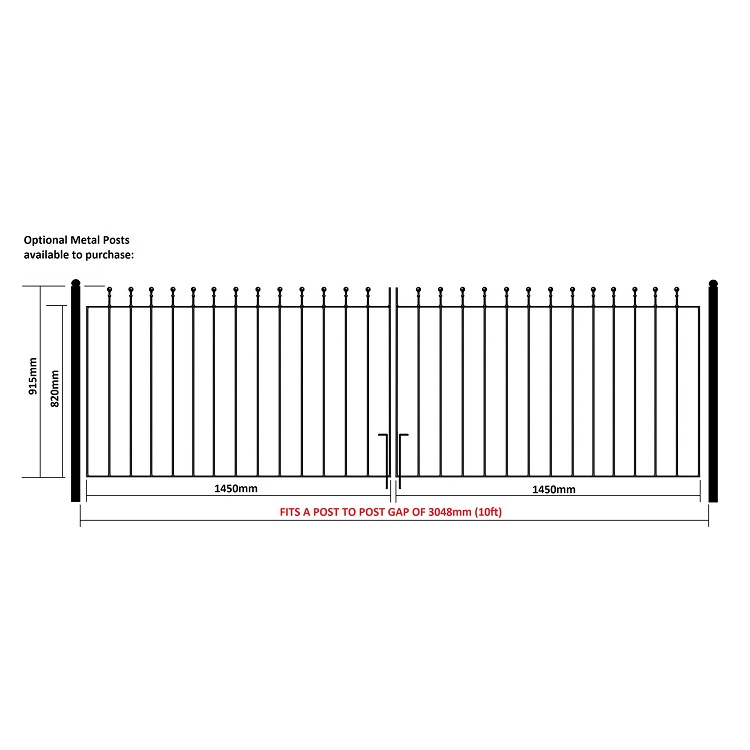

You should select the gates that "fit an opening" of 3048mm (10ft) if the width between the walls is 3048mm (10ft).

Do You Require Metal Posts?

If you require posts for the Manor Flat Top Driveway Gates, you can select the appropriate option from the accessories menu. Please note that for projects that need these components, extra space will be necessary for installation.

Example - Gates to fit an opening of 3048mm combined with 2 x 70mm posts will require a total overall space of 3188mm.



Are You Confused About Ordering Manor Driveway Gates Online?

Read our measuring guide or view the frequently asked questions page for information on common queries. Alternatively, don't hesitate to contact us if you can't find the information you are looking for.

We have a made to measure service available - Click here to learn more

You can also find additional guidance and advice within our buying guideordering guideinstallation advicetechnical advice, and case studies pages.

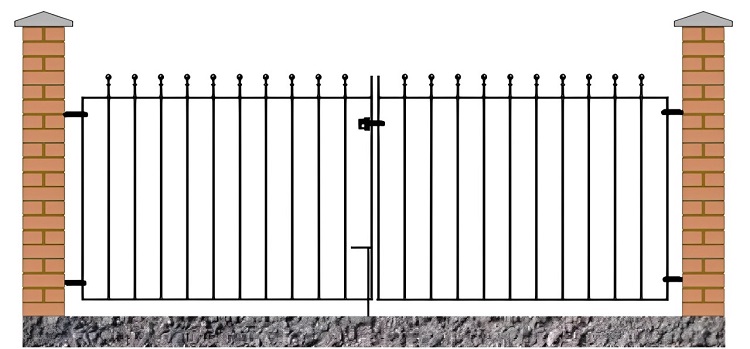

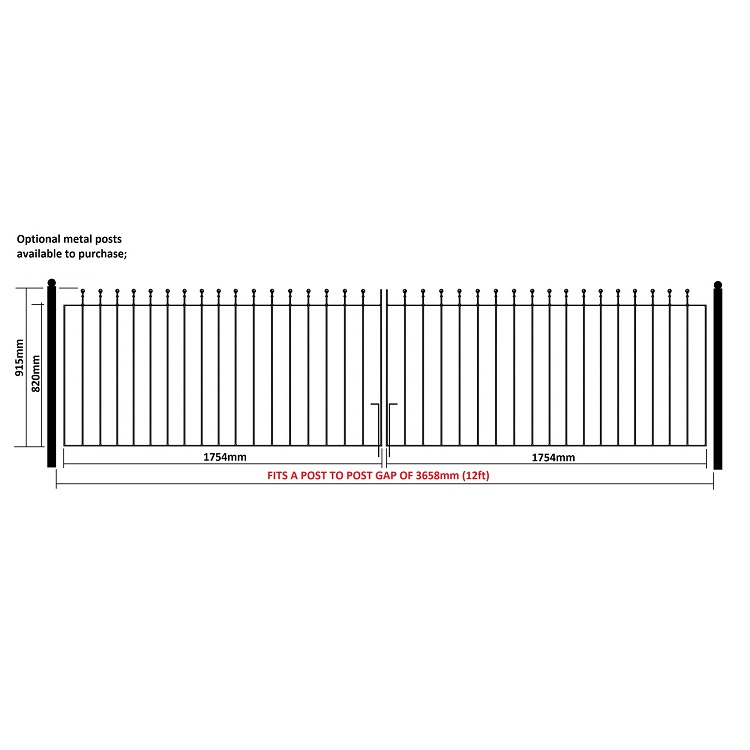

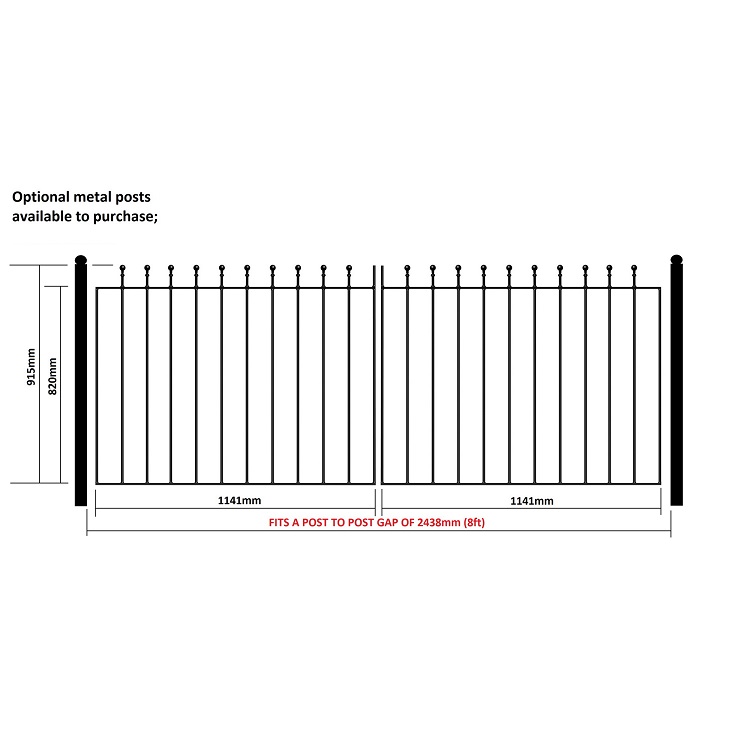

Manor double gate measuring diagram

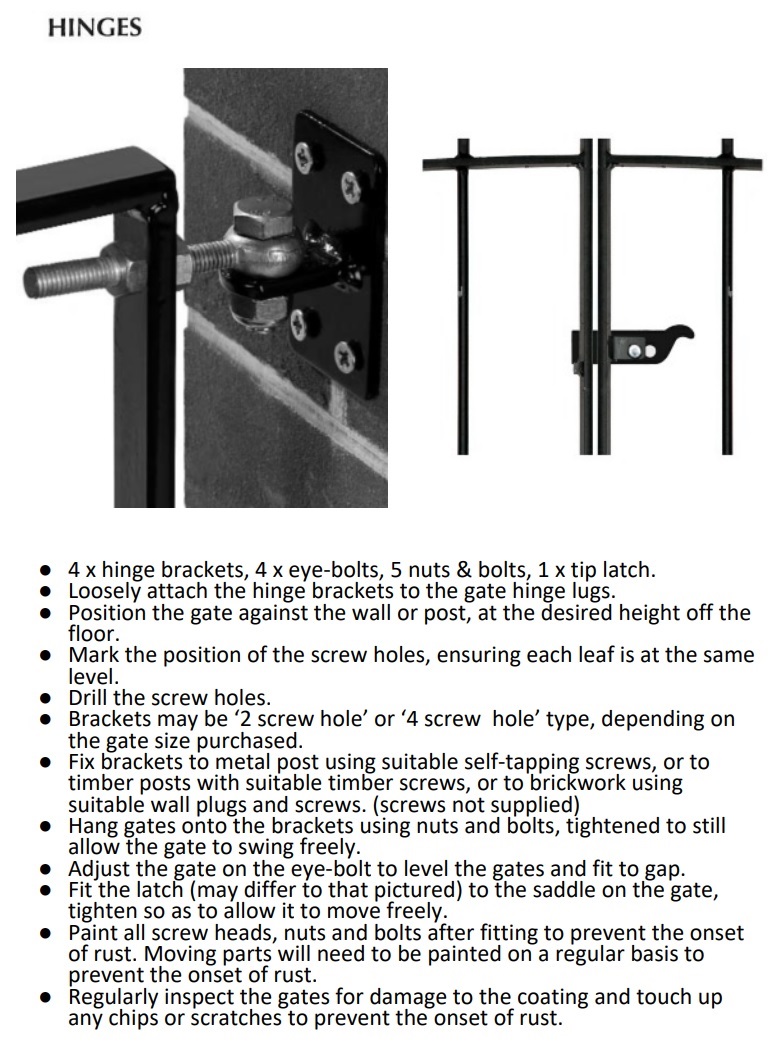

Manor driveway gate hinge and latch fitting diagram

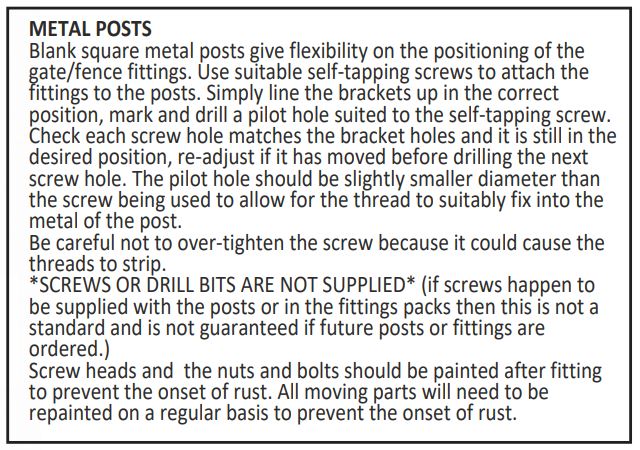

Univeral metal post installation guide
