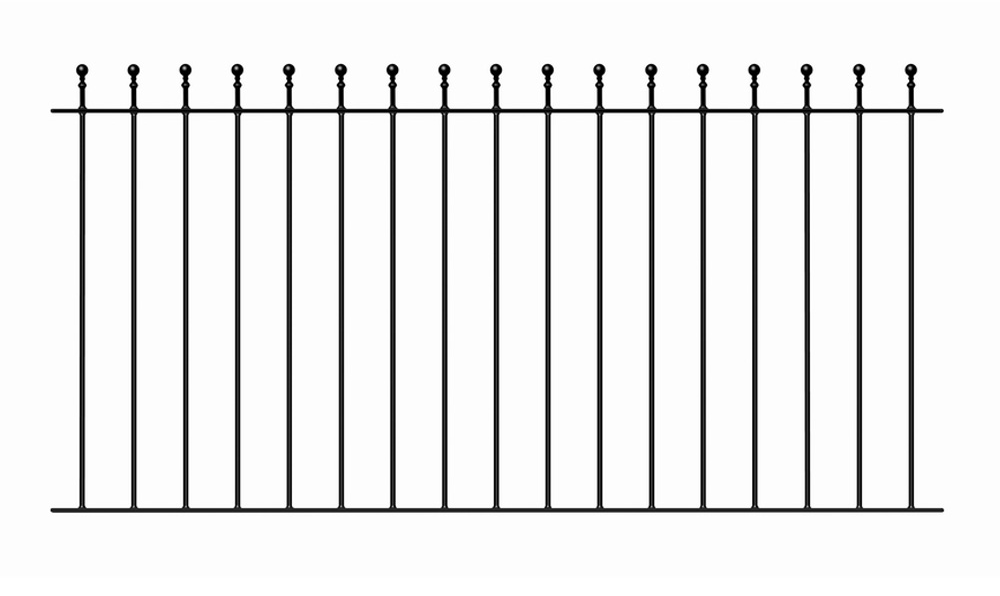

Manor Wrought Iron Style Metal Garden Fence Panel | 914mm (3ft) High

Manor Wrought Iron Style Metal Garden Fence Panel | 914mm (3ft) High

The Manor Wrought Iron Style Metal Fence Panels are excellent for any residential boundary. They are manufactured from solid steel components and benefit from ball top finials for a timeless appearance.

The 3ft high Manor Wrought Iron Style Metal Fencing is our best-selling design. It has a simple appearance which allows it to blend with virtually any type of UK architecture and is manufactured from solid steel components. Each fence panel features a 25mm x 10mm flat bar framework, 12mm round metal infill bars, and a single row of ball top finials across the top. The Manor design will make a splendid statement to any boundary and is an effective means of keeping trespassers out and children and pets within the bounds of the property. Each panel comes as standard with the benefit of a rust and corrosion-resistant zinc plated and black powder-coated paint finish and includes the fitting brackets for easy installation to various pre-existing structures such as brickwork, metal posts or wooden fencing.

Manor 3ft High Ball Top Metal Fencing Specification

  • Simple yet effective style.

  • A choice of height options.

  • Suitable for a variety of home and garden settings.

  • Constructed from 25mm x 10mm solid metal frames and 12mm infill bars.

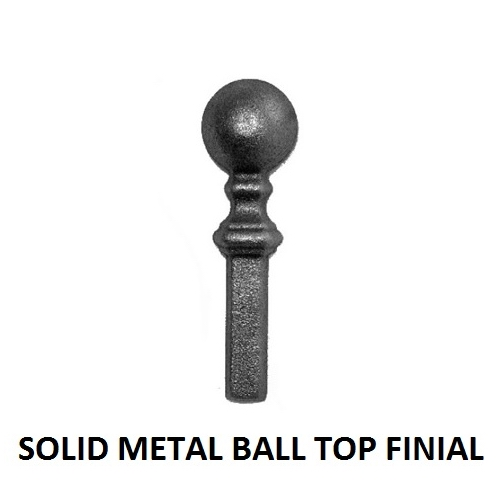

  • Fitted with ball top finials.

  • Zinc-plated and powder-coated black.

  • Supplied with fitting brackets.

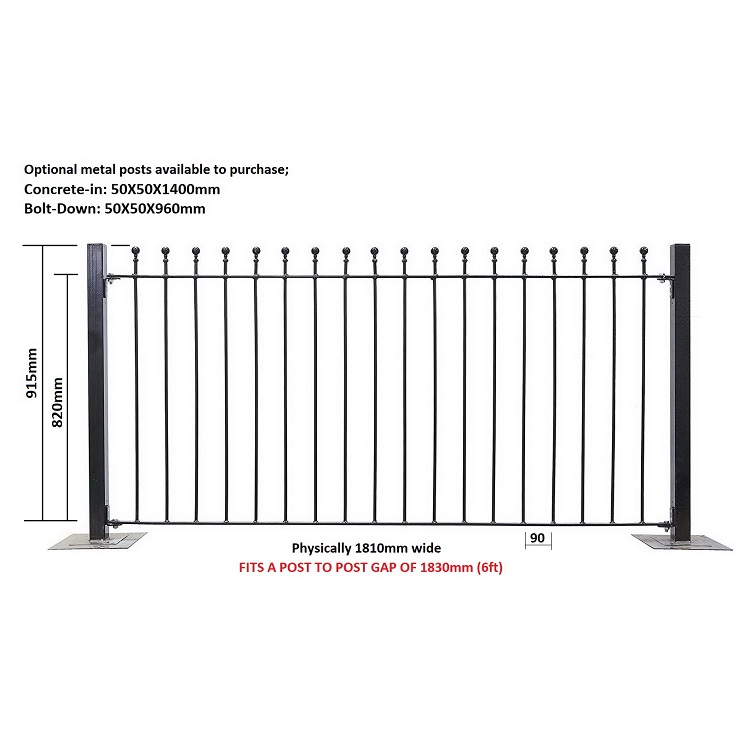

Fits Opening

  • 1830mm (6ft)


Physical Height

  • 914mm (36")



Ordering Sizes

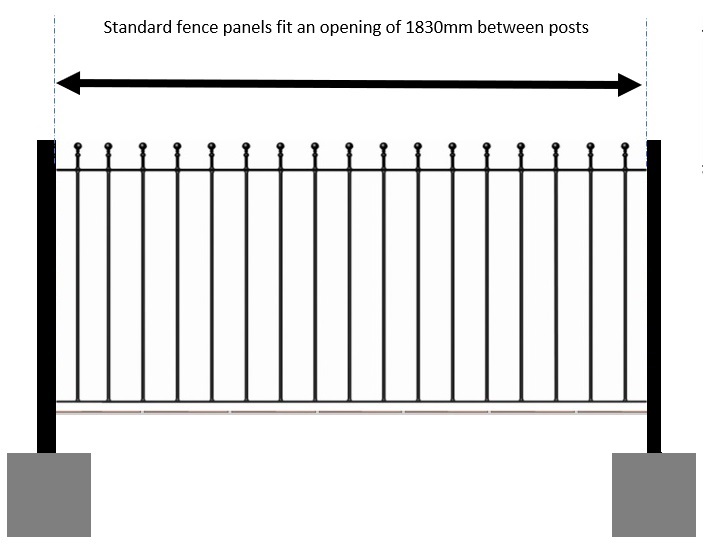

  • Width: The "fits opening" dimension is the gap size required to fit each panel. This measurement includes the space needed for the fixing brackets. Therefore, you will need to have an opening between pillars, posts, or other existing support structures of 1830mm.

  • Height: The "physical height" shown above does not include any allowance for ground clearance. When installing the item, we recommend allowing 50mm from the finished floor level to the underside of the metal frame.

Read the measuring guide by clicking here

Do you Need Metal Posts?

When no existing support structure is available, or several panels are required, you will need to install metal posts to join each section together.


  • 1 x panel and 2 x 50mm posts will need a total space of 1930mm.

  • 2 x panels and 3 x 50mm posts will need a total overall span of 3810mm.

  • 3 x panels and 4 x 50mm posts will need an overall space of 5690mm.



Compatible Metal Fence Posts

If you need to order relevant posts, these can be found here:



Do you Need More Information Before Buying Online?

For additional help, please read the measuring guide. Alternatively, if you require a made to measure size or want support and guidance before ordering, please get in touch with us.

Discover more about our made to measure fencing - Click here

Other Useful Pages

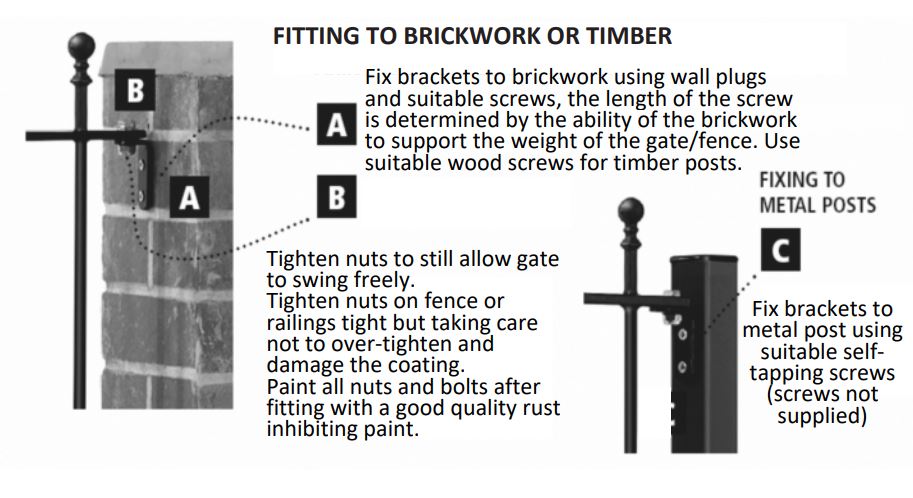

You can also find more information online in our frequently asked questions section or within the buying guide and ordering guide. For help with fitting, please read the installation advice pages. You can also view past customer projects within our case studies section.
