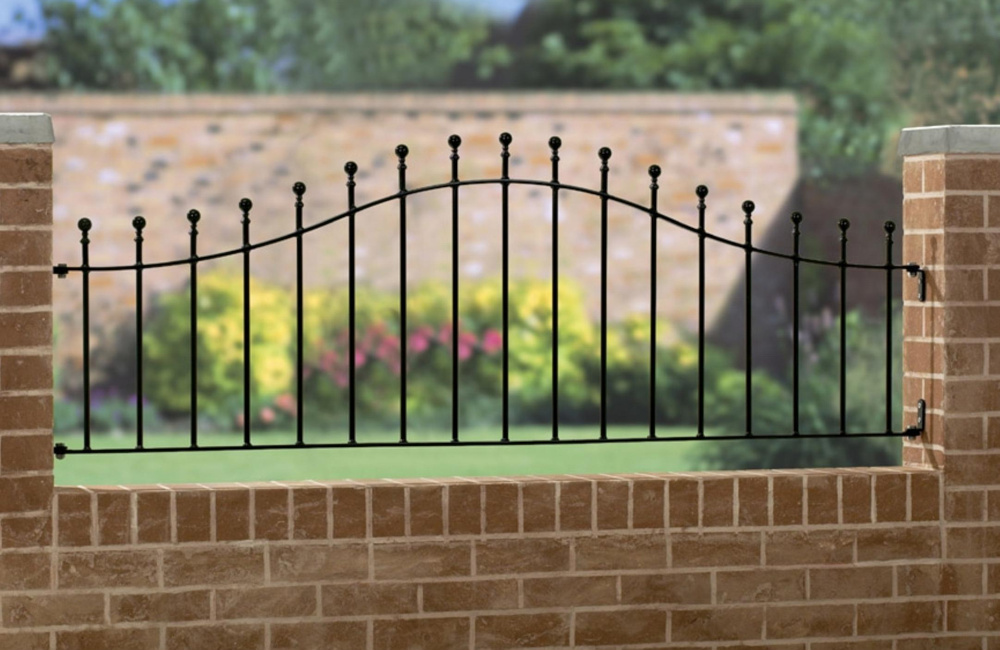

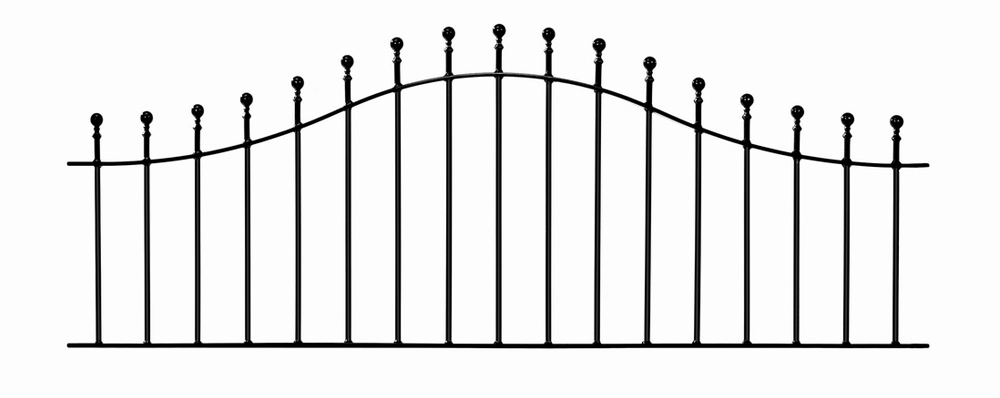

The Manor Shaped Wrought Iron Style Metal Garden Railings feature a distinct curved top and ball top finials making them ideal for various residential applications where improved aesthetic appeal combined with added privacy and security will prove beneficial to the property owner. Manufactured from solid steel components, including 25mm x 10mm flat bar frames and 12mm diameter round infill bars, these timeless railings come as standard with the benefit of zinc plated and black powder-coated paint finish for added protection against rust and corrosion. For ease of installation, each railing includes 4 x mounting brackets suitable for attaching directly to brickwork, timber, or metal posts.

Manor Shaped Railings Specification

• Suitable for a variety of locations.

• Manufactured from solid steel components.

• 25mm x 10mm flat bar frames and 12mm infill bars.

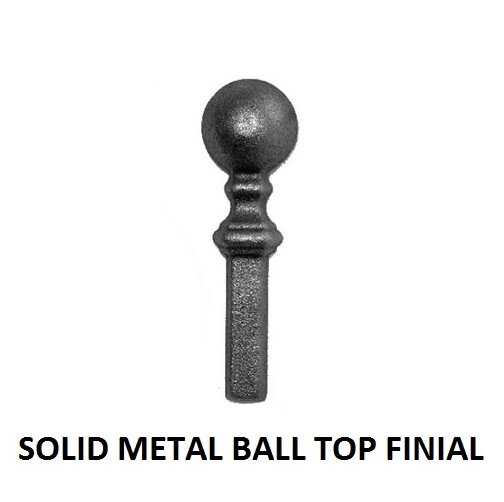

• Fitted with ball top finials.

• Low maintenance zinc-plated and black powder-coated paint finish.

• Includes fitting brackets.

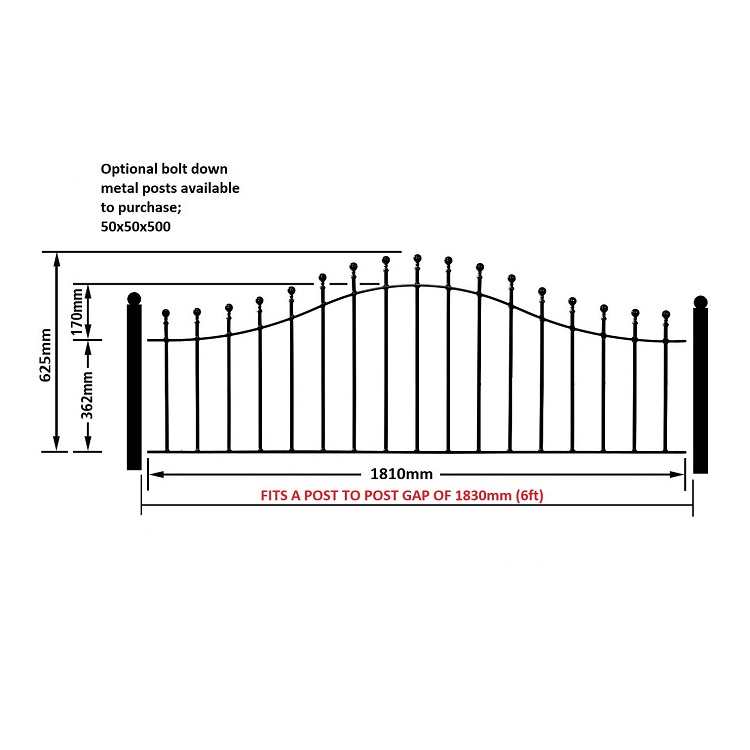

Fits Opening

• 1830mm (6ft)

Physical Height

• 625mm to the top of the highest finial reducing to 455mm at the lowest finial

Ordering Sizes

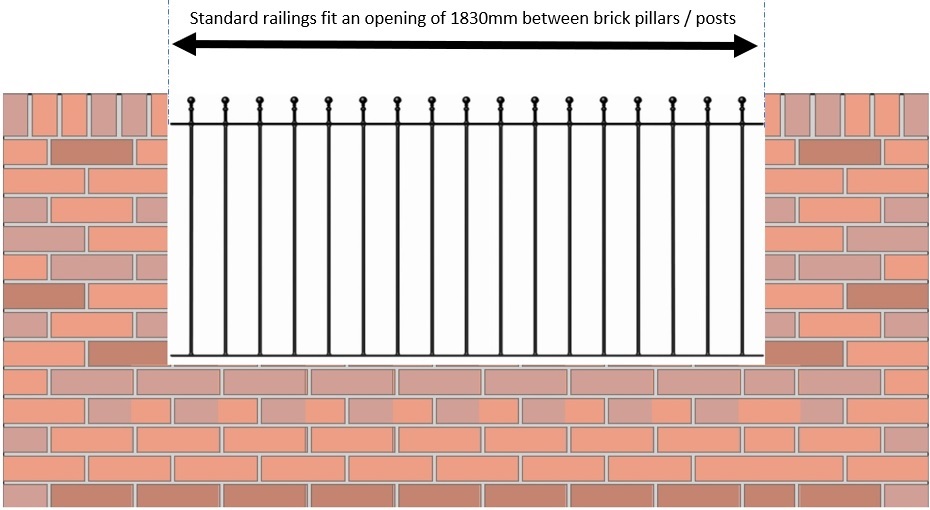

• Width: The “fits opening” dimension shown is the gap size you will need between existing support structures (such as brick pillars or posts). Included in this measurement is the space required for the mounting brackets. Please do not make any other calculations as this will lead to installation issues.

• Height: The “physical height” is the actual height of the railing. It does not include any allowances for ground clearance. When installing the railings, we recommend leaving a 50mm (2”) gap between the bottom of the railing and the top of the wall.

Do you Need to Add Metal Posts to Provide Support?

When installing the railings to a wall without existing pillars, you must order metal posts to provide support. In these instances, make sure you factor in the space taken up by the posts.

Examples

• 1 x railing and 2 x 50mm bolt down posts will need a total space of 1930mm.

• 2 x railings and 3 x 50mm bolt down posts will need a total space of 3810mm.

• 3 x panels and 4 x 50mm bolt down posts will need a total space of 5690mm.

Compatible Metal Posts

If posts are required to provide support to the railing, we recommend using the following items:

• Flat Top Square Metal Post (Bolt Down)

• Ball Top Metal Post (Bolt Down)

Do you Need Guidance Buying Wrought Iron Style Metal Railings Online?

Please read our easy to understand measuring guide if you require support with ordering sizes. When a made to measure size is necessary, or you would like honest advice before ordering, please contact us for support.

Other Useful Pages

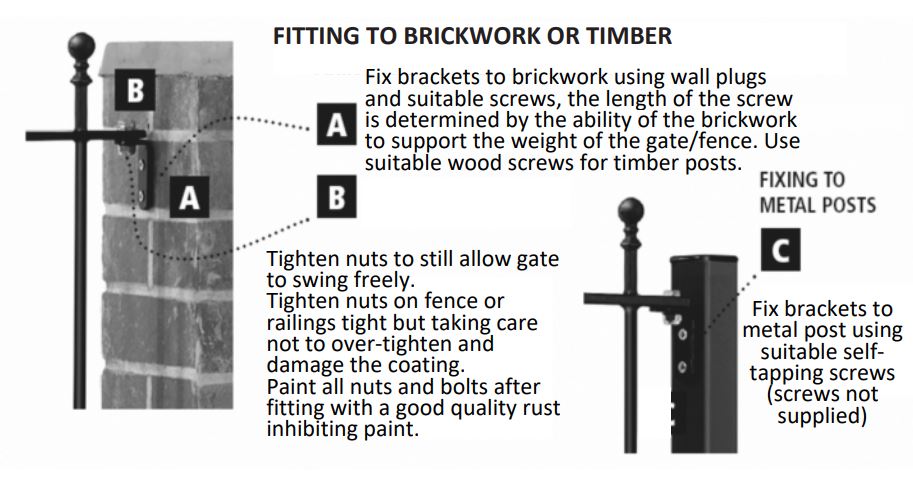

To make your purchase as simple as possible, we have taken the time to provide you with plenty of valuable facts on our website. If required, you can find relevant information on the frequently asked questions page or within the buying guide and ordering guide. Please also consider reading the installation instructions for advice about fitting the railings. You may also want to see examples of previous customer undertakings within our case studies section.
