Royale Gothic Wrought Iron Style Metal Side Gate

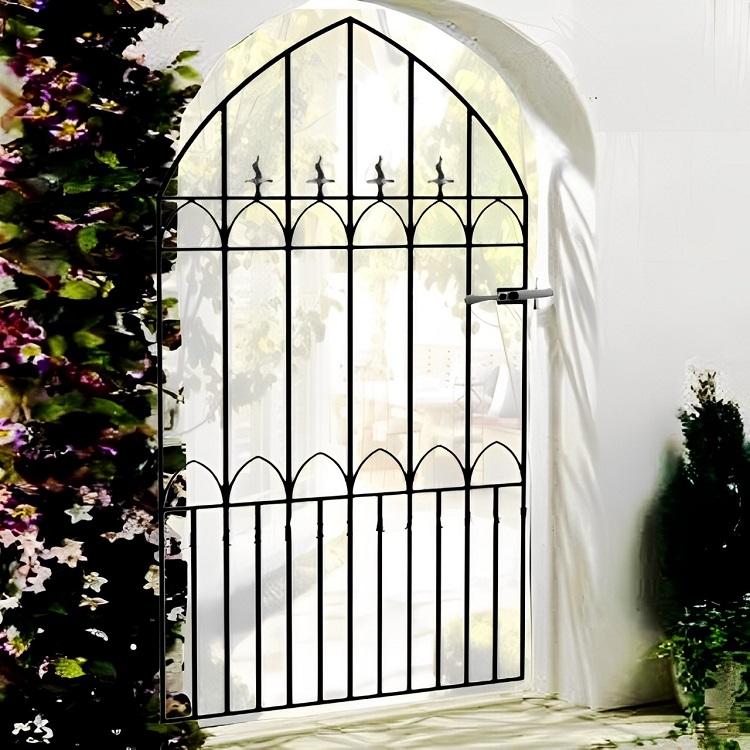

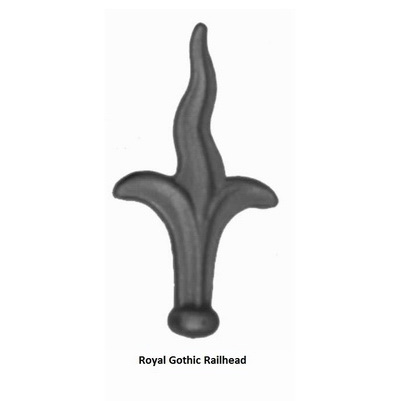

The handmade Royale Gothic Wrought Iron Style Side Gate is a premium quality design with heavy-duty steel components. It is handmade in the UK, has an aesthetically pleasing appearance, a durable construction and benefits from an imposing arched top, a row of finials, and dog bars in the lower section that grab the eye.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

Standing 6ft 6" tall, the Royale Gothic Wrought Iron Style Side Gate offers exceptional value and can be purchased online in various standard sizes to meet your needs. Expertly crafted in the UK, this gate features a high-grade, solid steel framework with a sturdy 40mm x 30mm flat bar hanging stile paired with a 40mm x 10mm closing stile and cross rails. Additionally, it boasts 16mm round metal infill bars that are fully welded for exceptional strength and durability. Regardless of the size you select, the Royale Gotihic design includes heavy-duty surface-mounted adjustable hinges and a latch mechanism, ensuring the perfect balance between aesthetics and security features.

Royale Gothic Side Gate Specification

  • Heavy-duty solid steel construction.

  • Highly striking individual design.

  • Suitable for any garden location.

  • Manufactured in the UK by skilled craftsmen.

  • 40mm x 30mm hanging stile, 40mm x 10mm closing stile and cross rails.

  • 16mm diameter solid metal infill bars

  • Supplied with adjustable hinges and a latch.

  • Primed black (undercoat) ready for painting before installation.

  • Designed to be RIGHT hand hanging only (as viewed from the roadside).


Height (once fitted)

  • 1981mm (6ft 6")



Ordering Sizes

  • Width: To determine the ordering size, you must measure the distance between the existing brick walls or posts. You do not need to perform any further calculations because our "fits opening" size, displayed in the drop-down menu, already includes the space necessary for the hinges and latch.

  • Height: The "Height (once fitted)" dimension includes an allowance of 50mm (2") for ground clearance. This is measured from the floor to the top of the framework. Please note that due to the unique shape of the arch, the heights are subject to minor variations depending on the width you order.

View the measuring guide here if you need help with ordering sizes


If you measure the distance between your existing brickwork and it comes to 3ft 6", you should select the "fit opening 3ft 6" option when ordering your gate.

Do You Need Metal Gate Posts?

Metal gate posts are necessary if there isn't a suitable existing structure to secure the hinges and latch. In these instances, additional space is required.

Example - If you're installing a gate designed to fit an opening of 3ft 6" and require 2 x 4" posts, your overall space requirement will be 4ft 2".



Looking for a Powder Coated Finish?

Please complete our enquiry form for more information about our zinc-plated and black powder-coated paint finish.



Need More Information About Our Wrought Iron Style Metal Side Gates?

For measuring your opening, check out our measuring guide page or to find answers to common questions, visit our FAQ section. You can also browse our buying guideordering guideinstallation guidancetechnical advice, and case studies pages for other helpful information. Alternatively, iIf you need cant find the size you need, visit our made-to-measure gates category to explore bespoke options.

Learn about our made to measure service - Click here

Still, have concerns or need assistance? Please get in touch with us, and we'll be more than happy to help.

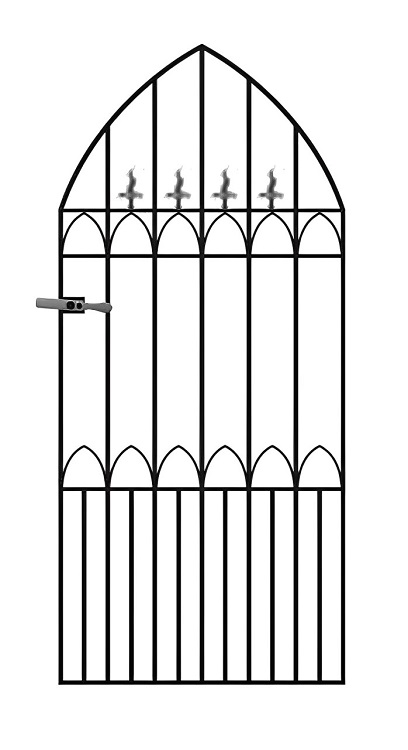

Royale Gothic side gate measuring guide

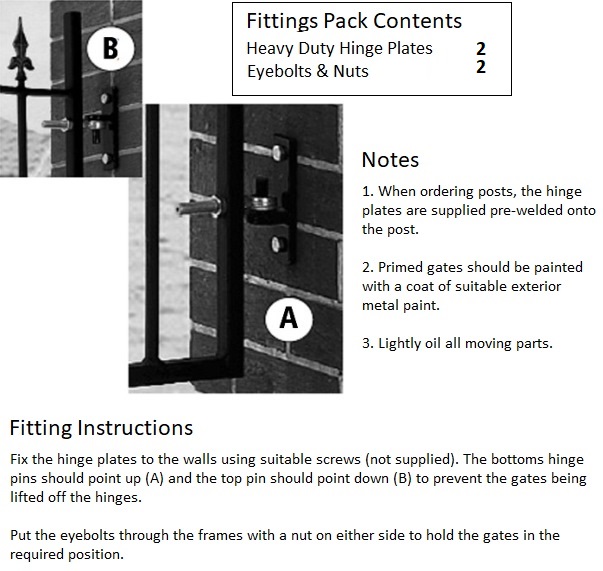

Royale Gothic side gate adjustable hinges and latch layout
