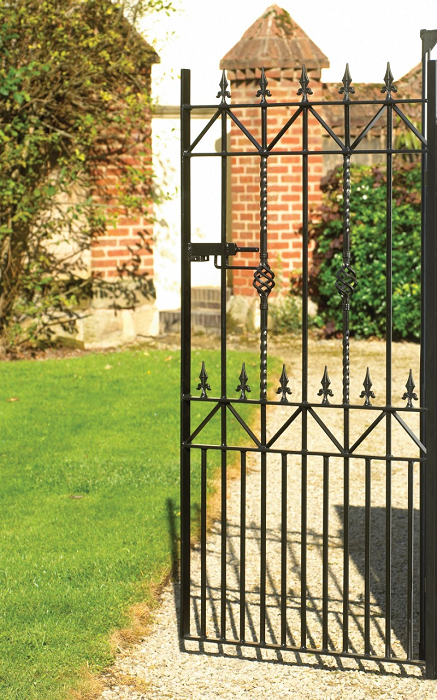

The Royale Ascot Wrought Iron Style Metal Side Gate will provide a stunning focal point to any pedestrian entrance around your home and garden. Available to buy online in various sizes, the Ascot side gate is manufactured in the UK from heavy-duty solid steel components to ensure strength and rigidity whilst the decorative design elements provide visual appeal. Supplied as standard with the hinges and latch mechanism, which can be mounted direct to brickwork, metal or timber posts, the gate is primed black (undercoat), ready to be painted to the colour of your choice before installation.

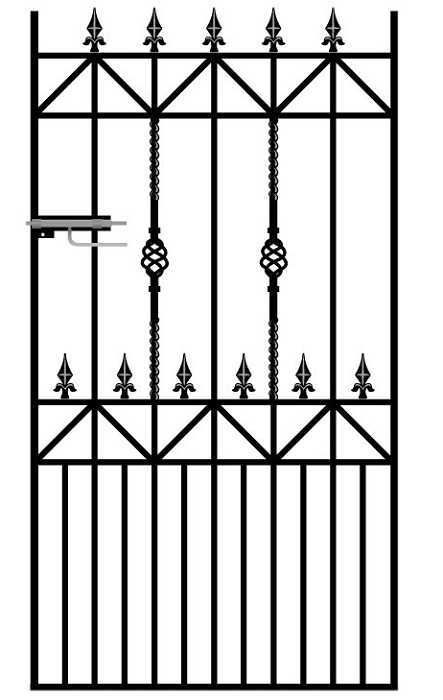

Royale Ascot Side Gate Specification

• Heavy-duty solid steel construction.

• Highly striking individual design.

• Suitable for any garden location.

• Manufactured in the UK by skilled craftsmen.

• 40mm x 30mm hanging stile, 40mm x 10mm closing stile and cross rails.

• 16mm diameter solid metal infill bars

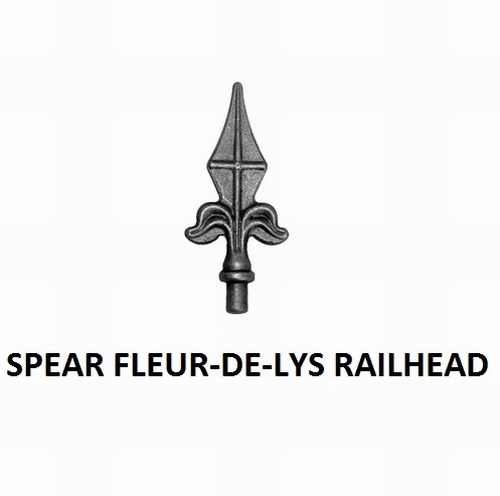

• A double row of fleur-de-lys finials provides visual appeal.

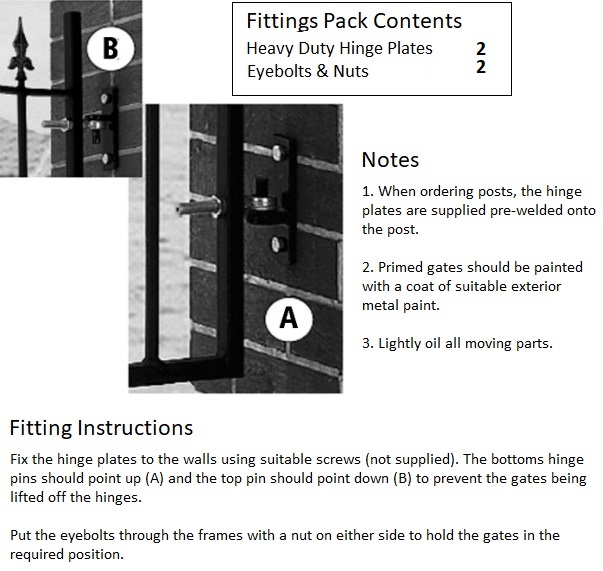

• Supplied with adjustable hinges and a sliding latch.

• Primed black (undercoat) ready for painting before installation.

• Designed to be RIGHT hand hanging only (as viewed from the roadside).

Height (once installed)

• 1830mm (6ft)

Ordering Sizes

• Width: To determine the ordering size, you must measure the distance between the existing brick walls or posts. You do not need to perform any further calculations because our "fits opening" size, displayed in the drop-down menu, already includes the space necessary for the hinges and latch.

• Height: The "Height (once installed)" dimension includes an allowance of 50mm (2") for ground clearance. This is measured from the floor to the top of the horizontal framework. Please note that this does not include the finials on the top rail.

Example

If the space between existing brickwork measures 3ft 6", you should order the gate to "fit opening 3ft 6".

Do You Need Metal Gate Posts?

Metal posts will be required if there isn't an appropriate support structure in place to attach the hinges and latch, so bear in mind that you'll need additional space to accommodate these items.

Example – A gate to fit an opening of 3ft 6" combined with 2 x 4" posts will need an overall space of 4ft 2".

Looking for a Powder Coated Finish?

Please complete our enquiry form for more information about our zinc-plated and black powder-coated paint options. We will happily provide you with more details and answer any questions.

Do you Need More Information About Our Wrought Iron Style Metal Side Gates?

Go to the measuring guide page to learn how to measure the opening or discover solutions to many simple questions in our FAQ section. Further details are also included within the buying guide, ordering guide, installation guidance, technical advice, and case studies pages.

If you have not seen the correct size gate required to fit your exact requirements, head to our made to measure gates category to learn more about this popular option. If you have any other issues, don't hesitate to get in touch with us for advice.
