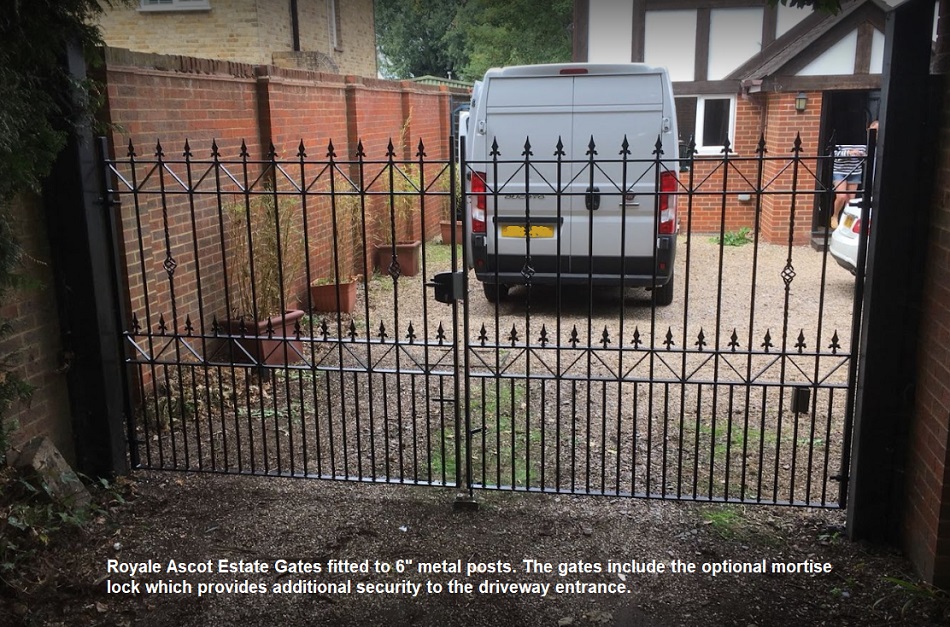

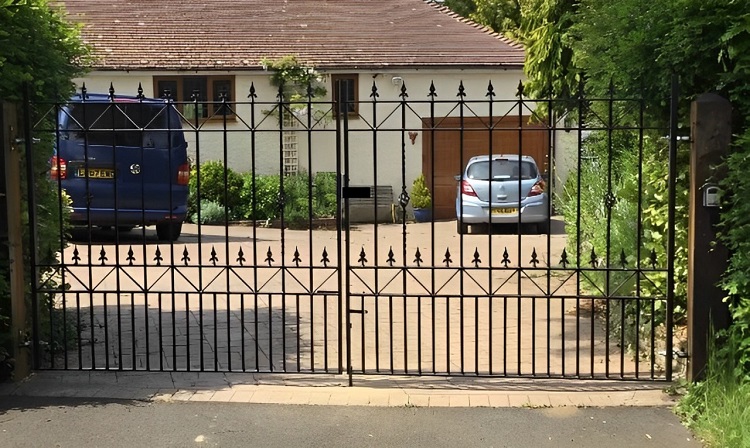

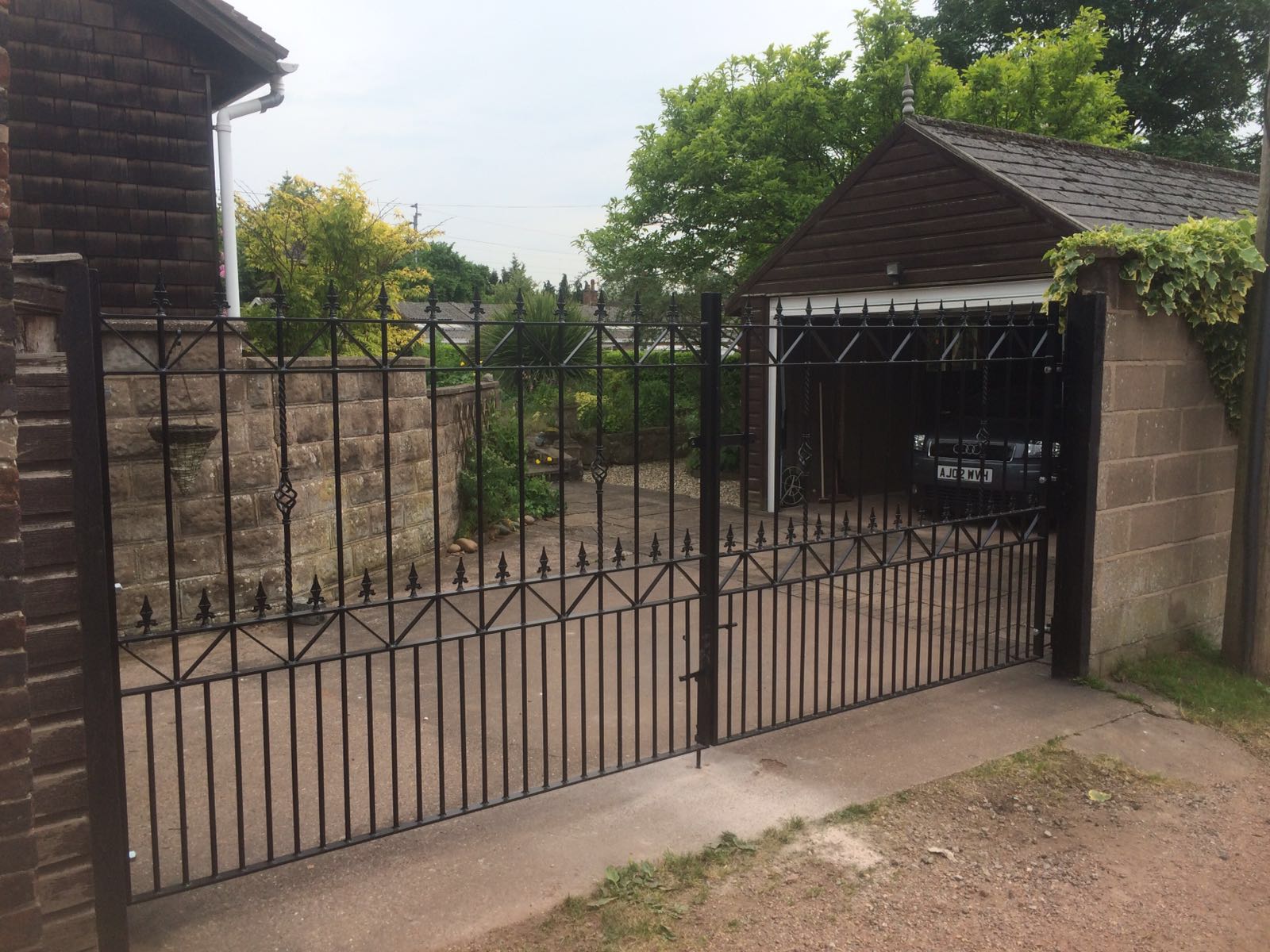

Royale Ascot Wrought Iron Style Estate Gates

The attractive Royale Ascot Estate Gates are part of our heavy duty Signature Collection. They are handcrafted in the UK and have a wrought iron style solid steel framework to provide structural strength and stability.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

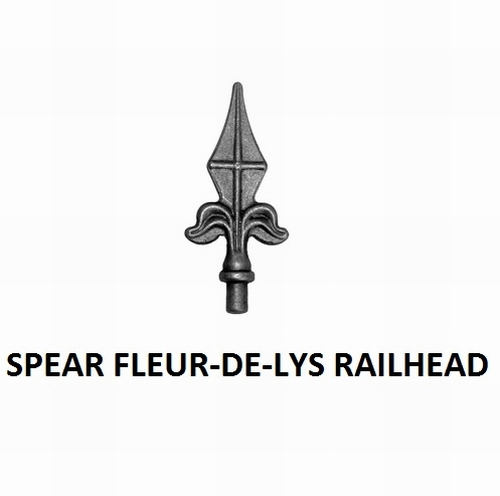

The Royale Ascot Wrought Iron Style Estate Gates are handmade in the UK to an industry leading standard to ensure strength, performance, and reliability. Suitable for any residential location where restricted access will prove beneficial, these stunning double metal gates will offer privacy and security at an incredibly competitive price. Available to buy online to suit a range of driveway entrances ranging from 8ft up to 16ft, the gates include surface mounted adjustable hinges, a latch mechanism and drop bolt making them ideal for DIY installations. With a heavy-duty solid steel construction consisting of 40mm x 30mm hanging stiles, 40mm x 20mm closing stiles and cross rails and 16mm solid metal infill bars they are incredibly strong and rigid meaning they are more than capable of withstanding the rigours of regular use. For improved visual appeal, decorative wrought iron style elements are included such as fleur de lys finials and cage infill bars. Supplied primed black as standard, it is essential that all metal surfaces are painted with a minimum of 2 coats of exterior grade paint prior to installation to ensure maximum levels of protection against rust and corrosion.

Royale Ascot Estate Gates Specification

  • Provides security and privacy to any residential driveway

  • High quality steel construction.

  • Handmade in the UK to a high standard.

  • Available to buy online in a selection of standard sizes to suit many driveway openings.

  • Attractive wrought iron style design elements

  • High grade 40mm x 30mm hanging stiles, 40mm x 20mm closing stiles and cross rails

  • 16mm solid metal infill bars.

  • Supplied complete with surface mounted adjustable hinges, latch mechanism and in ground drop bolt.

  • Primed black (undercoat) – The Ascot gates must be painted before installation. For optimum performance, we recommend applying a minimum of 2 coat of a high-quality exterior grade paint.


Height (once fitted)

  • 1830mm (6ft)



Extras (available as an option)

Please feel free to contact us for prices if you'd like to include any of the following elements.

  • Zinc plated (electro galvanised) and black powder coated paint finish.

  • Heavy duty mortise lock (with handle and keys).

  • Pad lockable drop bolts.



Ordering Sizes

  • Width: The "fits opening" measurements displayed in the drop-down menu already includes the space necessary for the hinges and latch. You should therefore measure the gap between existing masonry supports then find a size within our options that matches this measurement. Do not perform any other calculations as this will lead to ordering errors.

  • Height: The “height once fitted” includes an allowance of 50mm (2”) for ground clearance and is measured from the floor to the top of the horizontal frame. The finials above are not included within this measurement.

Need help choosing the right size? Read the measuring guide here

Ordering Example

If the size of the opening between brick pillars measures 10ft 6” you should order the gates to "fit an opening" of 10ft 6”.

Do you Need to Install Metal Posts?

If these items are required, you should select the appropriate size posts from the options and accessories menu shown above. When doing so you should bear in mind that additional space will be necessary.

Example – Gates to fit an opening of 4270mm combined with 2 x 150mm posts will require a total overall space of 4570mm.



Confused About Ordering Wrought Iron Style Metal Estate Gates Online?

For more information relating to ordering sizes please refer to the measuring guide. To find answers to common queries read the frequently asked questions page. Alternatively, if you have not found the size you need to order refer to our made to measure service page. For all other enquiries please contact us for support.

Discover more about our made to measure wrought iron estate gates

Other Useful Pages

You can find additional help and advice online including our Buying GuideOrdering Guide, Installation AdviceTechnical Advice and Case Studies pages.

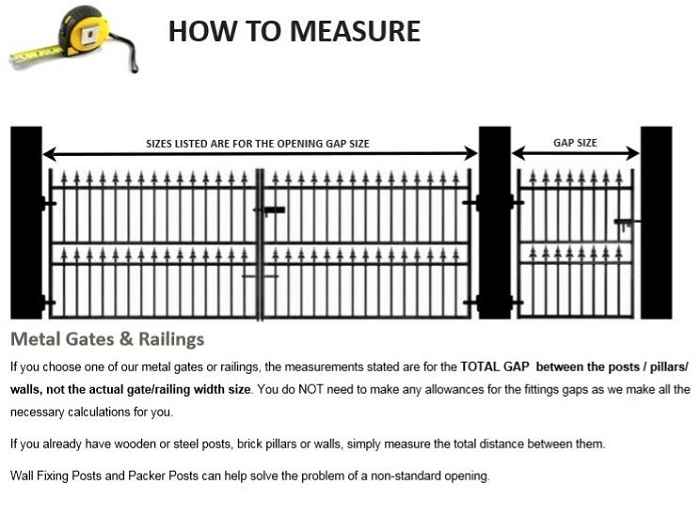

Royale Ascot estate gates measuring guide

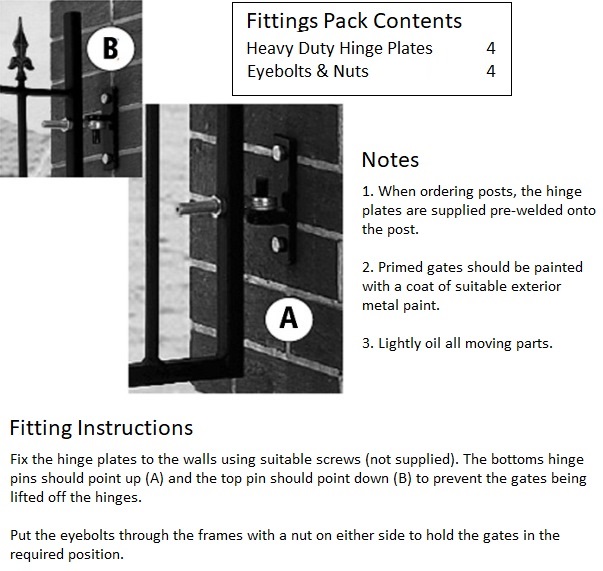

Royale Ascot heavy duty hinge diagram
