Royale Ascot Wrought Iron Style Double Metal Driveway Gates | 4ft High


Royale Ascot Wrought Iron Style Double Metal Driveway Gates | 4ft High

The Royale Ascot Wrought Iron Style Driveway Gates will suit various property designs. Part of our Signature Collection, they are manufactured using superior grade steel. They will provide outstanding levels of security to help protect the main entrance of your property.

Delivery:
Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

The Royale Ascot Wrought Iron Style Double Metal Driveway Gates are a heavy-duty design that will add a spectacular focal point to any residential property's primary vehicle entrance. These terrific value driveway gates are handcrafted in the UK from substantial solid steel components and are available to buy online in various sizes to fit most domestic applications. The Ascot design is more than capable of withstanding the rigours of daily use, thanks to strong and sturdy 40mm x 30mm flat bar steel hanging stiles, 40mm x 10mm closing stiles and cross-rails, and 16mm diameter metal infill bars. The gates have a double row of fleur-de-lys finials mixed with various ornamental features to produce an overall appearance that is just stunning. They incorporate surface mounted adjustable hinges to help level the gates and a simple latch mechanism and drop bolt to hold the gates in place when closed. The gates are primed black as standard, meaning you must paint them before installation to enable rust and corrosion protection.

Royale Ascot Driveway Gates Specification

  • Heavy-duty construction.

  • Solid steel frames and infill bars.

  • 40mm x 30mm hanging stiles.

  • 40mm x 10mm closing stiles and cross-rails.

  • 16mm diameter steel infill bars.

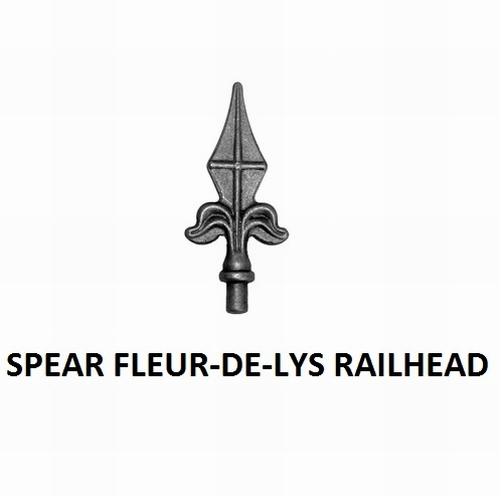

  • Fleur-de-lys finials increase aesthetic appeal.

  • Manufactured in the UK.

  • Supplied complete with adjustable hinges, sliding latch and drop bolt.

  • Black primed (undercoat) – The gates must be painted before installation.



Height (once fitted)

  • 1220mm (4ft)






Ordering Sizes

Width: Measure the current size of the opening between the walls or posts. You will use this measurement to select the ordering size. Our "fits opening" measurement, as indicated in the drop-down menu, already includes the space necessary for the hinges and latch therefore you should make no other allowances.

Height: The "fitted height" corresponds to the height of the gates once they have been installed and is measured from the ground to the top of the horizontal framework. The finials above this are not included within this size. The height dimension includes a 50mm (2") provision for ground clearance.

View the gate measuring guide - Click here

Example

If the gap between existing brickwork is 12ft 6", the gates should be ordered to "fit opening 12ft 6". ‚Äč

Do you Require any Additional Posts?

For installations without a suitable support structure to attach the hinges, metal posts will be needed, so keep in mind that you'll need more room to accommodate these items.

Example – Gates to fit an opening of 12ft 6" combined with 2 x 6" posts will require a total overall space of 13ft 6".






Looking for a Powder Coated Finish?

Please complete our enquiry form for more information about the zinc-plated and black powder-coated paint options available for wrought iron style metal driveway gates. We will happily provide you with more details and answer any questions.






Do you Have Any Concerns About Purchasing the Proper Size Driveway Gates?

If you are unsure what size to order, we recommend you read the measuring guide. You can also refer to our FAQ page if you have a general question. To find additional information take a look at our buying guideordering guideinstallation guidancetechnical advice, and case studies pages.

Discover more about our made to measure sizes - Click here

If you are unable to find a standard size option to meet your precise requirements, we also have a popular made to measure service available. To obtain a quote for this option, please contact us.

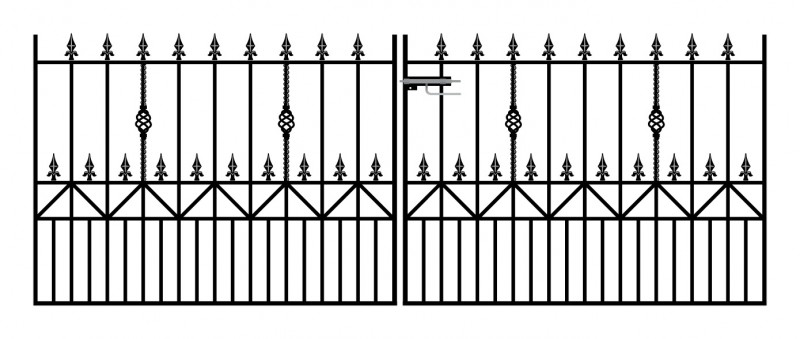

Royale Ascot driveway gates measuring guide

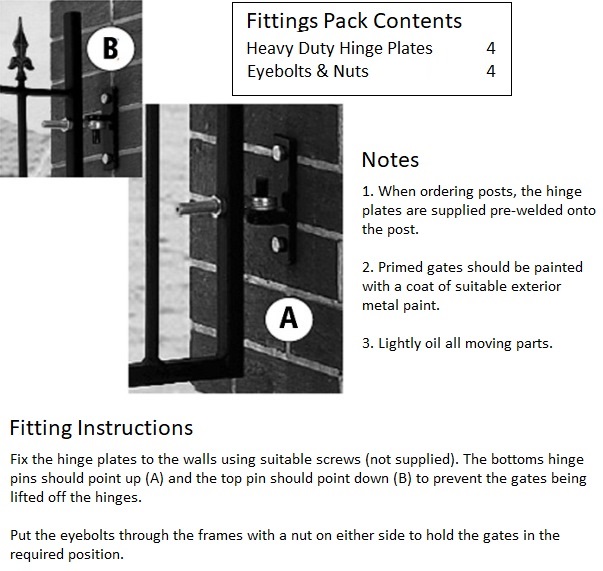

Royale Ascot driveway gate hinges illustration
