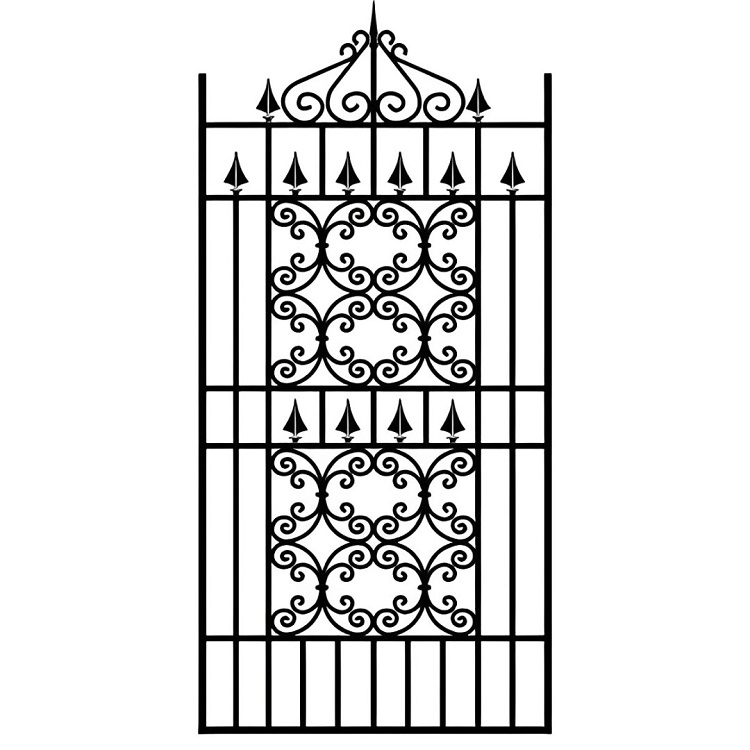

Royale Monarch Wrought Iron Style Metal Side Gate

Handmade in the UK, the Royale Monarch Wrought Iron Style Metal Side Gate is strong, robust and reliable. Suitable for a wide range of residential applications, this premium quality gate design benefits from a solid steel framework and infill bars and comprises several decorative features to provide enhanced aesthetic appeal whilst delivering a high degree of security and privacy.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

The Royale Monarch Wrought Iron Style Side Gate is a premium-grade option with a highly ornate design. Handmade in the UK and available in a choice of sizes to suit many common pedestrian entrances, it will add an elegant touch to any home or garden setting. The gate incorporates a welded framework, which includes 40mm x 30mm hanging stile, 40 mm x 10mm closing stile, 16mm x 5mm scrollwork and 16mm diameter round metal infill bars. Furthermore, for an even more imposing appearance, spear-shaped finials are mounted to three of the horizontal rails. To enable easy installation onto various surfaces, the gate has a pair of adjustable hinges and a sliding latch, which you can secure with a padlock.

Royale Monarch Side Gate Specification

  • High strength premium grade construction.

  • Handmade in the UK.

  • 40mm x 30mm hanging stile.

  • 40mm x 10mm closing stile.

  • 16mm x 5mm scrollwork.

  • 16mm infill bars.

  • Includes adjustable hinges and a sliding latch.

  • Primed black (undercoat) ready for painting before installation.

  • Designed to be RIGHT hand hanging only (as viewed from the roadside).


Fitted Height

  • 1830mm (6ft)



Ordering Sizes

  • Width: To calculate the ordering size, measure the distance between walls or posts. Make no other adjustments because the "fits opening" dimension displayed in the drop-down menu already includes the space necessary for the hinges and latch. For further clarification, please refer to the example below.

  • Height: The "Height (once fitted)" measurement includes an allowance of 50mm (2") for ground clearance. This is measured from the floor to the top of the horizontal framework. Please note that this does not include the finials or additional scrollwork mounted above the top rail.

View the measuring guide


If the measurement between your brick walls measures 1070mm, you should order a gate to "fit an opening of 1070mm".

Do You Require Posts?

For projects that require metal posts (commonly needed when a masonry support structure is not present), it's essential to consider the additional space required for these components.

Example – A gate to fit an opening of 1070mm combined with 2 x 100mm posts will need an overall space of 1270mm.



Looking for a Powder Coated Finish?

Please complete our enquiry form for more information about our zinc-plated and black powder-coated paint finish. We will be happy to provide you with the associated costs or answer any questions you may have about this subject.



Do You Need More Information About Wrought Iron Style Metal Side Gates?

If you want additional help and advice online before placing an order, we suggest you read the measuring guide or visit our FAQ page. We also provide helpful information in the buying guide, ordering guideinstallation guidancetechnical advice, and case studies pages.

Learn more about our made to measure sizes

Alternatively, if you cannot find a size to suit the width of your entrance, please refer to made the measure page or contact us if you have further questions.


Royale Monarch side gate measuring diagram

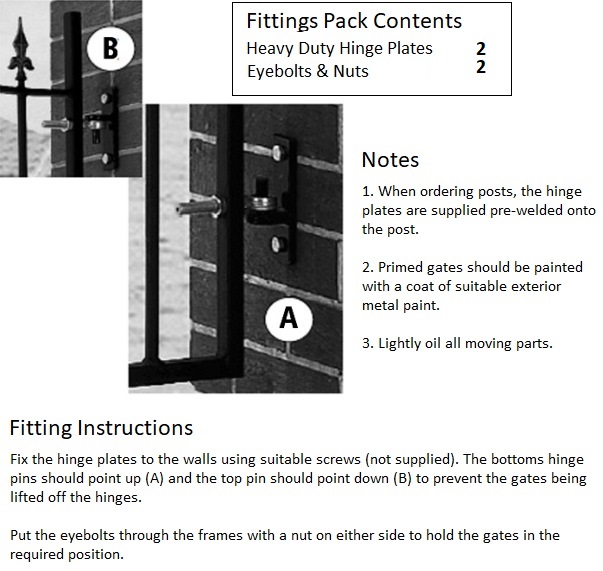

Adjustable heavy duty hinges diagram
