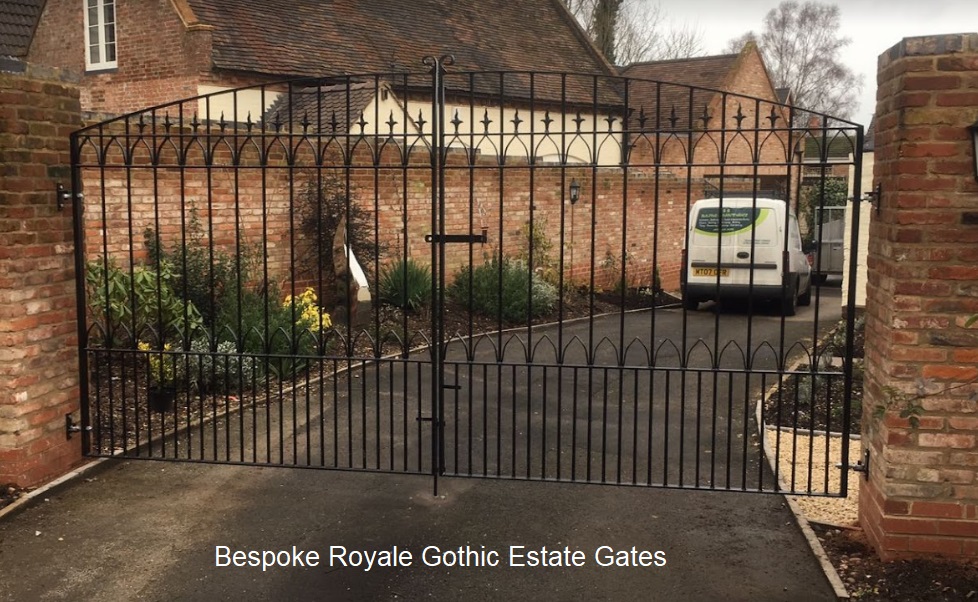

Royale Gothic Wrought Iron Style Estate Gates

The handmade Royale Gothic Estate Gates are crafted with heavy-duty steel components in the UK. They have a stunning wrought iron style appearance and feature an arched top, a row of eyecatching finials, and dog bars in the lower section.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

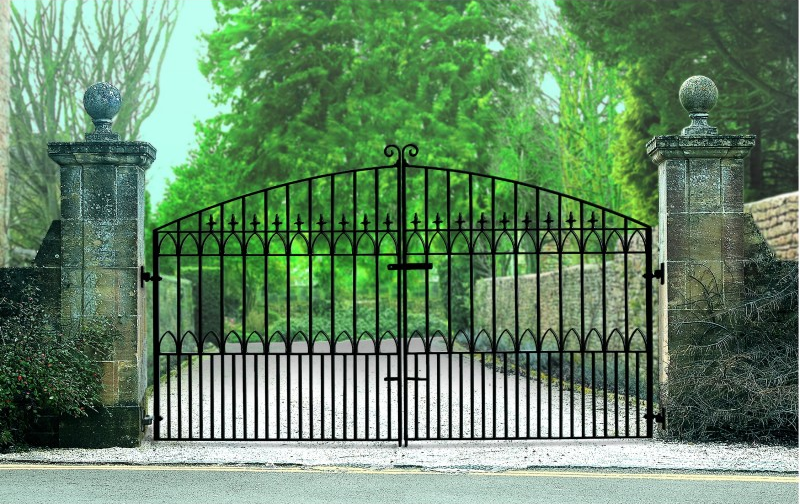

The Royale Gothic Wrought Iron Style Double Metal Estate Gates are imposing and will add security and privacy to any residential driveway entrance. Measuring 7ft tall in the middle, these outstanding value double gates are available online to buy online in a selection of standard sizes that will fit openings between 8ft-16ft. They feature a high-grade solid steel framework comprising 40mm x 30mm flat bar hanging stiles combined with 40mm x 20mm closing stiles and cross rails and include 16mm round metal infill bars, which are fully welded for superior strength and reliability. For an enhanced appearance, the Royale Gothic design incorporates distinctive finials. Regardless of the size you order, each pair of gates includes heavy-duty surface-mounted adjustable hinges, a sliding latch mechanism and an in-ground drop bolt.

Royale Gothic Estate Gates Specification

  • Manufactured in the UK.

  • High-grade solid steel construction.

  • Available to order online in standard sizes to suit many driveway openings.

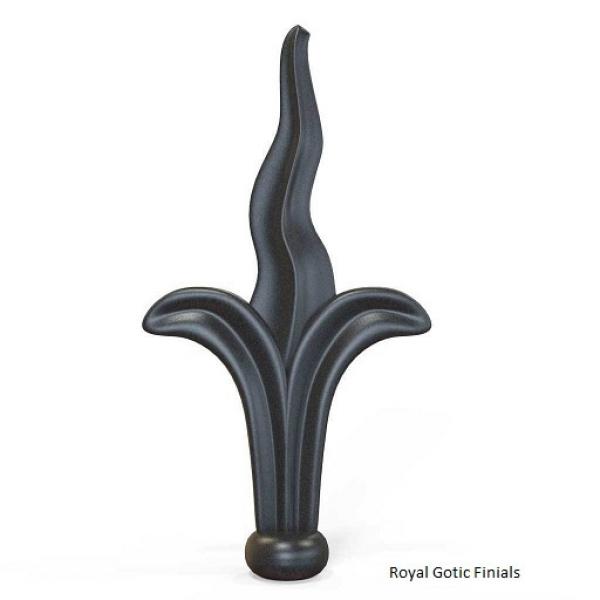

  • A single row of ornate finials

  • 40mm x 30mm hanging stiles, 40mm x 20mm closing stiles and cross rails.

  • 16mm solid metal infill bars.

  • Includes surface-mounted adjustable hinges, a latch mechanism and an in-ground drop bolt.

  • Primed black (undercoat) – To protect against rust or corrosion, we recommend applying at least two coats of high-quality exterior-grade paint before installation.


Height (once fitted)

  • 2134mm (7ft) in the centre

  • 1520mm (5ft) at the sides



Extras (available as an option)

Please get in touch with us for a price if you'd like to add any of the following features:

  • Zinc-plated (electro-galvanised) and black powder-coated paint finish

  • Heavy-duty mortise lock (with handle and keys)

  • Pad lockable drop bolts



Ordering Sizes

  • Width: Measure the space between your brick walls or other support structures. Once you have established this dimension, you should match this with one of the width options in the drop-down menu. You do not need to do any other calculations, as the "fits opening" width already includes the space necessary for the hinges and latch.

  • Height: This includes an allowance of 50mm (2") for ground clearance.

View the gate measuring guide here

Ordering Example

If the measurement between your existing brick pillars measures 15ft, you should order the gates to "fit opening 15ft".

Do you Need Metal Posts?

You will need to purchase metal posts for freestanding installations where no existing support structure is in place. Appropriate size posts can be selected from the options and accessories menu above if necessary. When doing so, please remember that additional space is required for these components.

Example – Gates to fit an opening of 15ft combined with 2 x 6" posts will require a total overall space of 16ft.



Are you Unsure What to Order?

Read the measuring guide for more information about ordering sizes or understand more about our made-to-measure service if you didn't locate the size you need. If you have a query, please see our frequently asked questions or contact us with any additional concerns.

We have a made to measure service available - Click here for more information

Other Useful Pages

You can find additional help and advice online within our Buying GuideOrdering GuideInstallation AdviceTechnical Advice and Case Studies pages.

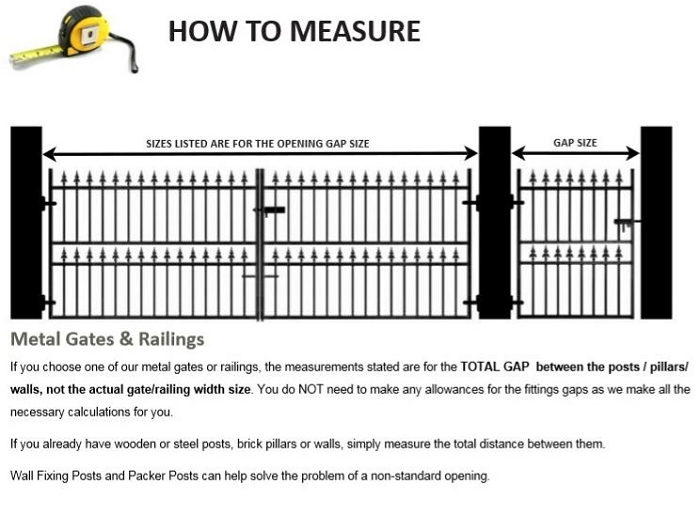

Driveway gates measuring guide

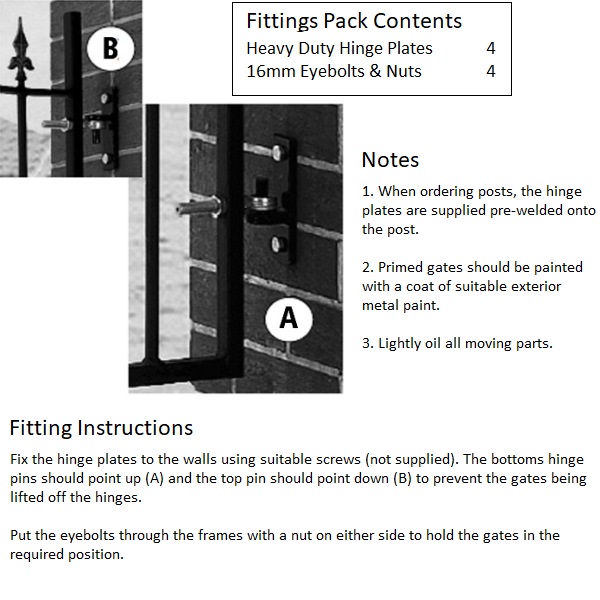

Adjustable heavy duty hinges diagram
