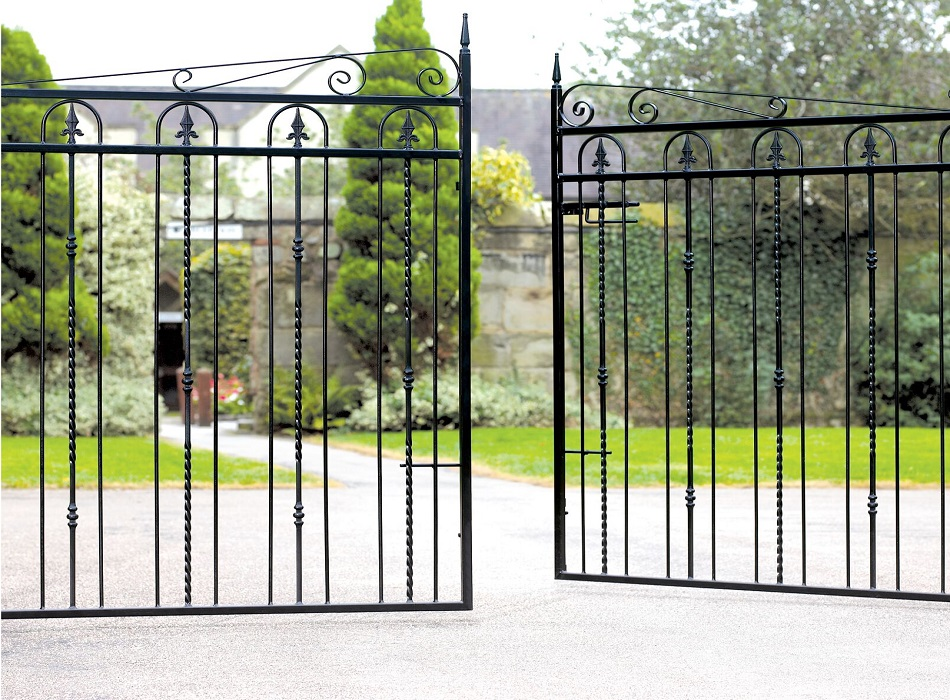

Windsor Wrought Iron Style Estate Gates

The Windsor Wrought Iron Style Estate Gates will provide privacy and protection to any driveway entrance without compromising on the aesthetic appeal of your home. Constructed in the UK using high-quality steel components, these stunning double gates are available to purchase online in sizes to suit opening widths up to 12ft.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

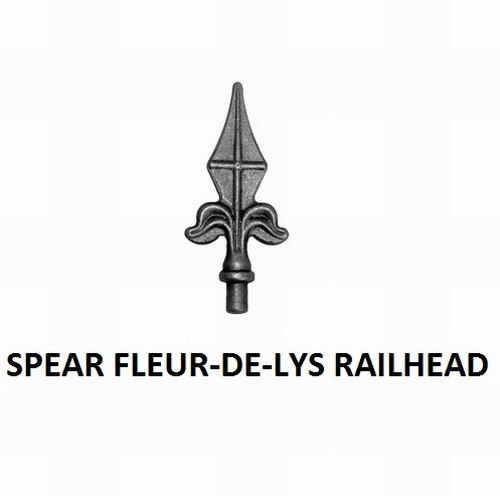

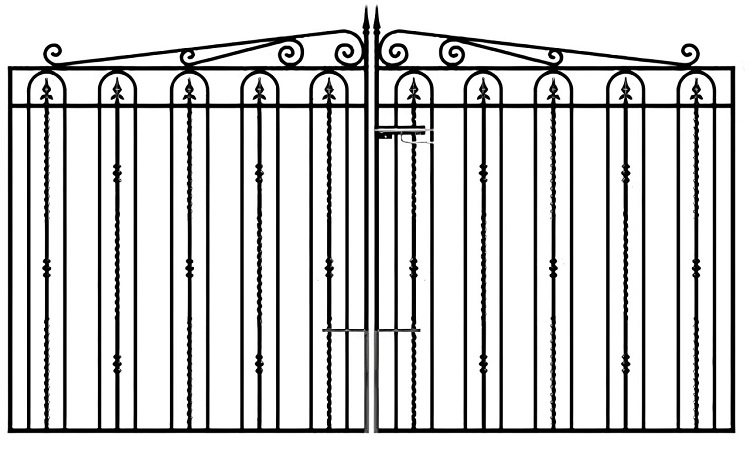

Handmade in the UK from quality grade steel, the 6ft high Windsor Wrought Iron Style Double Metal Estate Gates will make a stunning design addition to any driveway entrance. They feature a robust 25mm box section framework to provide strength and rigidity coupled with ornate elements, including decorative scrollwork, fleur de lys finials and spiral infill bars. For optimum installation flexibility, the gates come with surface-mounted hinges, a latch, and a drop bolt, which can be attached straight to masonry, brickwork, timber or metal posts.

Windsor 6ft High Estate Gates Specification

  • Handmade in the UK.

  • Range of sizes available (select the required option from the menu)

  • Ornamental scrollwork, finials and bars provide improved aesthetic appeal.

  • 25mm x 25mm box section steel framework.

  • 12mm diameter round metal infill bars.

  • Provided with adjustable hinges, a latch and a drop bolt.

  • Primed black (undercoat) – You must paint the before installation to prevent corrosion.


Fitted Height

  • 1830mm (6ft)



Ordering Sizes

  • Width: To choose the correct size to order, measure the width of your current opening using a tape measure. You must then select a size corresponding to this measurement from the size options shown at the top of the page. You do not need to make any additional calculations for the hinges and latch, as these components are already included in the "fits opening" measurement.

  • Height: The "fitted height" size includes a 50mm (2") allowance for ground clearance. This dimension is taken from floor level to the top of the uppermost horizontal rail but does not include the finials and scrollwork located above this point.

Read the double gate measuring guide


If the span measured between your walls or existing posts is 3350mm (11ft), you should order the gates listed to "fit opening 3350mm (11ft)".

Do you Need to Install Posts?

If walls or pillars are not present, metal posts will be needed to support the hinges. In these situations, it is important to remember that additional space will be required.

Example – Gates to fit an opening of 3350mm combined with 2 x 100mm posts will require a total overall space of 3550mm.



Looking for a Powder Coated Finish?

Please fill out our enquiry form for details about the zinc-plated and black powder-coated paint options for our range of estate gates. We will provide details of prices or answer any questions.



Do you Need More Information Before Ordering Driveway Gates Online?

Please view our measuring guide if you need help with measuring the opening, or read our comprehensive FAQ section to find answers to many common queries. Alternatively, we also provide a host of general information in buying guideordering guideinstallation guidetechnical advice, and case studies pages.

Discover the full details about our made to measure gates

Cant find the size you need? Use our made-to-measure service.


Measuring guide diagram for double gates

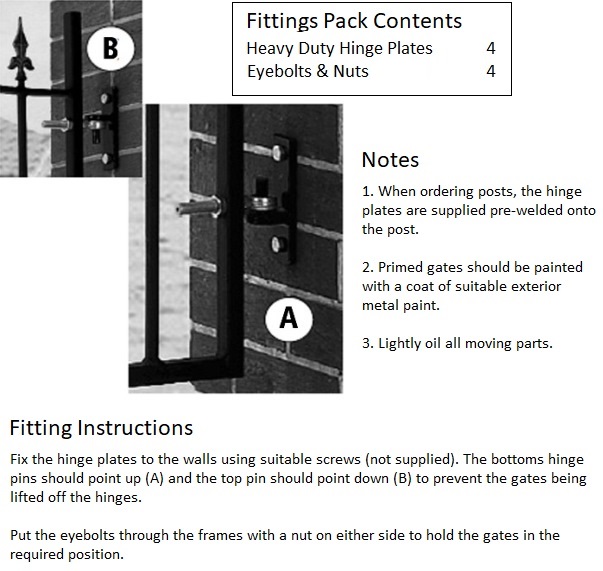

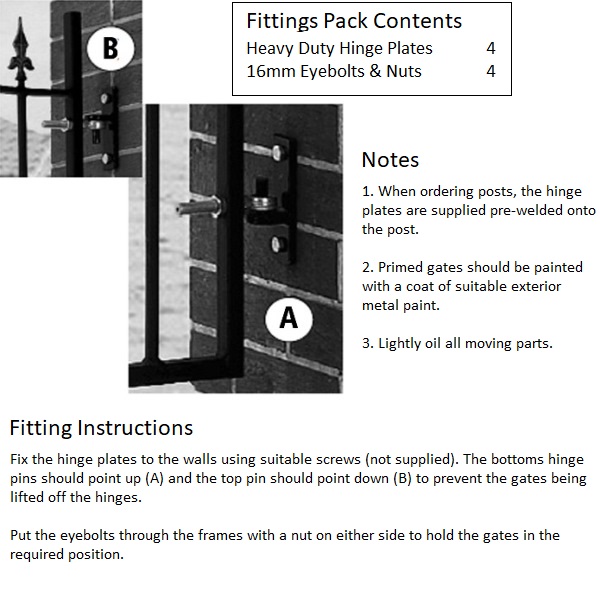

Adjustable heavy duty hinges diagram
