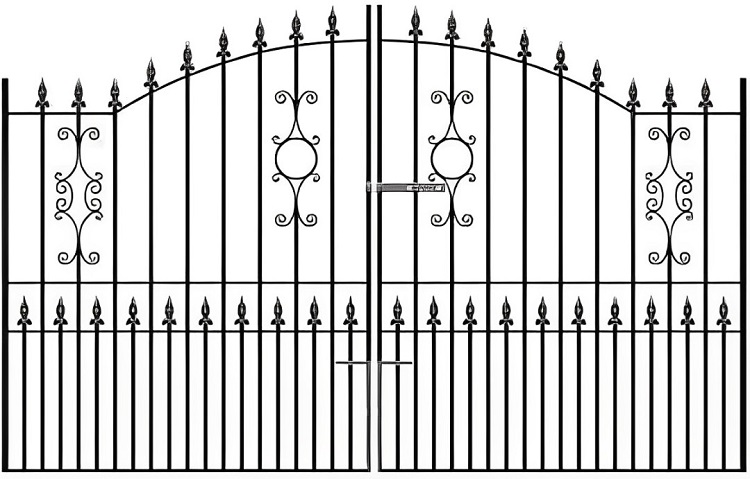

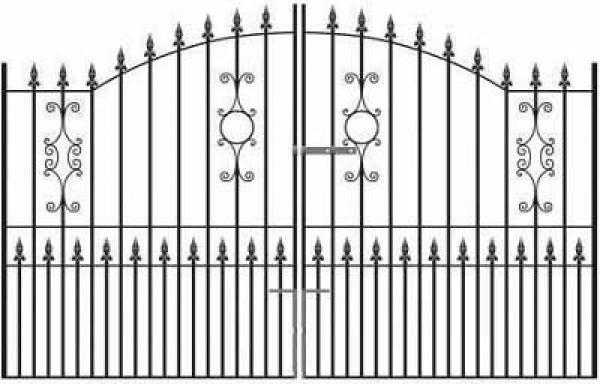

Royale Grange Wrought Iron Style Estate Gates

The Royale Grange Estate Gates are from our high-end Signature Collection. They are manufactured in the UK in an authentic wrought iron design to produce an elegant appearance at an affordable cost.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

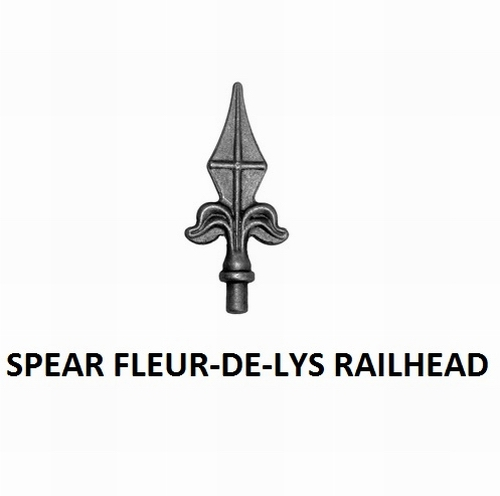

The Royale Grange Wrought Iron Style Estate Gates are handmade in the UK using heavy duty solid steel components to achieve a finished appearance that is second to none. Standing at 7ft tall once installed, these stunning double gates benefit from an arched top, decorative wrought iron style scrolls, dog bars in the bottom portion of the gates and a double horizontal rail for added strength. For improved aesthetic appeal and a more imposing appearance, fleur de lys finals are fitted in the middle and top portion of the gates. Available to buy online in a choice of popular sizes, they are suitable for automation or may be manually operated depending on specific user requirements. For added convenience they come with surface mounted adjustable hinges for easy levelling during installation together with a latch mechanism that can be secure with a padlock and in ground drop bolt to hold the gates in the correct position when closed. Featuring 40mm x 30mm flat bar hanging stiles, 40mm x 20mm closing stiles and cross rails and 16mm round metal infill bars the Grange design is primed black as standard ready for painting to the colour of your choice prior to installation.

Royale Grange Estate Gates Specification

  • Provides enhanced security and privacy to the main driveway entrance.

  • High grade solid steel construction.

  • Handmade in the UK.

  • Available to buy online in a choice of sizes.

  • 40mm x 30mm hanging stiles, 40mm x 20mm closing stiles and cross rails.

  • 16mm solid metal infill bars.

  • 12mm x 6mm decorative wrought iron style scrollwork.

  • Supplied with surface mounted adjustable hinges, latch mechanism and in ground drop bolt.

  • Primed black (undercoat) – All metal surfaces must be painted before installation. For optimum performance, we recommend applying a minimum of 2 coat of a high-quality exterior grade paint.


Height (once fitted)

  • 1830mm (6ft) at the sides rising to 2134mm (7ft) in the centre



Extras (available as an option)

If you'd like to add any of the following features, please contact us for a price.

  • Zinc plated (electro galvanised) and black powder coated paint finish.

  • Heavy duty mortise lock (with handle and keys).

  • Pad lockable drop bolts.



Ordering Sizes

  • Width: Measure the distance between existing brick wall or other appropriate support structure. Once this dimension has been established, you should simply match this with one of the width options shown in the drop-down menu. Do not perform any other calculations as the "fits opening" width already includes the space necessary for the hinges and latch.

  • Height: The “height once fitted” includes an allowance of 50mm (2”) for ground clearance. The uppermost finials above the framework are not included within this measurement.

Learn how to measure the opening here

Ordering Example

If the distance between existing brick pillars measures 8ft you should order the gates to “fit opening 8ft”.

Do you Need Metal Posts?

For freestanding installations where no existing support structure is in place you will need to purchase metal posts. If necessary, appropriate size posts can be selected from the options and accessories menu above. When doing so it is important to remember that additional space will be necessary.

Example – Gates to fit an opening of 9ft combined with 2 x 6” posts will require a total overall space of 10ft.



Are you Unsure What to Order?

Read the measuring guide for more information about ordering sizes or understand more about our made-to-measure service if you didn't locate the size you need. If you've a query, please see our frequently asked questions or contact us with any additional concerns.

Made to measure wrought iron estate gates are available - Click here to find out more

Other Useful Pages

You can find additional help and advice online within our Buying GuideOrdering GuideInstallation AdviceTechnical Advice and Case Studies pages.

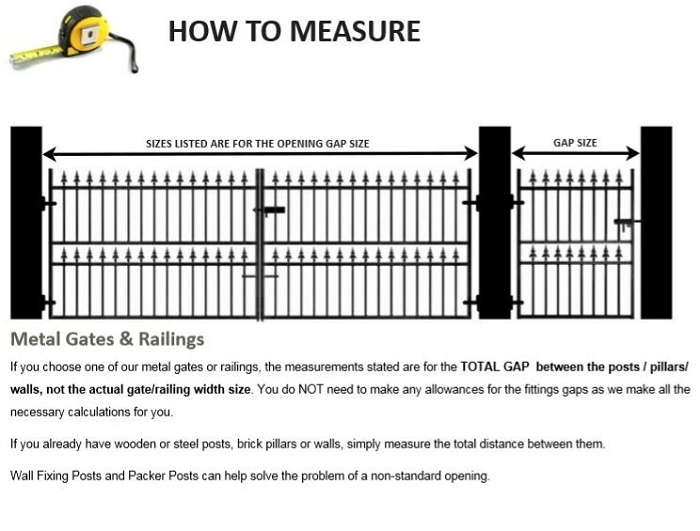

Royale Grange estate gates measuring guide

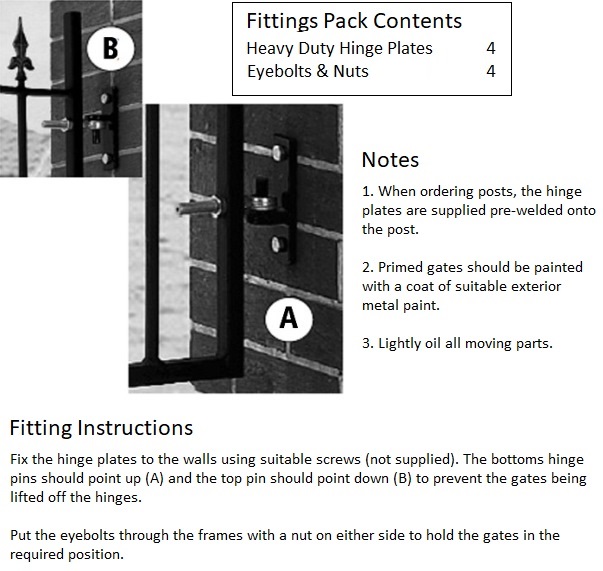

Royale Grange heavy duty hinges diagram
