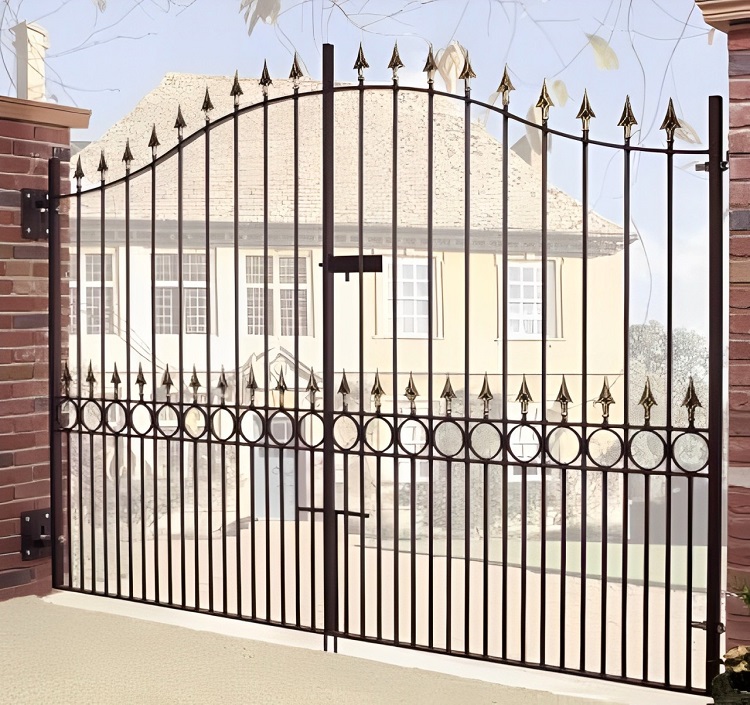

Balmoral Wrought Iron Style Metal Estate Gates

The Balmoral Wrought Iron Style Estate Gates have an imposing arch top layout and a double row of spear-shaped finials for a commanding appearance. Available in a range of sizes, they will promote privacy and access control to just about any driveway making them an excellent option for the security-conscious property owner.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

The Balmoral Wrought Iron Style Estate Gates will provide a strong and secure means of protecting the main driveway entrance of your property without compromising on functionality and aesthetic appeal. Handmade in the UK using high grade solid steel components, these stunning double metal gates benefit from an arch top design combined with spear shaped finials to create an imposing statement at an affordable online price. Manufactured with 40mm x 30mm flat bar steel hanging stiles, 40mm x 10mm flat bar closing stiles and double cross rails combined with 16mm round solid metal infill bars, the gates offer excellent levels of strength and rigidity making them perfect for any large residential opening. The bottom portion of the gates have smaller spacings between the bars which are great for ensuring pets and animals cannot squeeze through whilst the circular wrought iron style scrolls provide additional visual appeal. Included with the Balmoral estate gates are heavy duty adjustable surface mounted hinges to aid levelling during installation. They also come complete with a secure latch mechanism and in ground drop bolt to ensure the gates remain in the correct position when closed. Primed black (undercoat) as standard, it is important to note that all exposed metal surfaces will need to be painted with a minimum of 2 coats of exterior grade paint prior to installation to prevent the onset of rust and corrosion.

Balmoral Arched Estate Gates Specification

  • Suitable for any residential driveway entrance where strength and performance is a priority.

  • Traditional arch top design

  • Fully welded high grade solid steel construction.

  • Handmade in the UK.

  • Available to order online in a selection of standard sizes to suit many driveway openings.

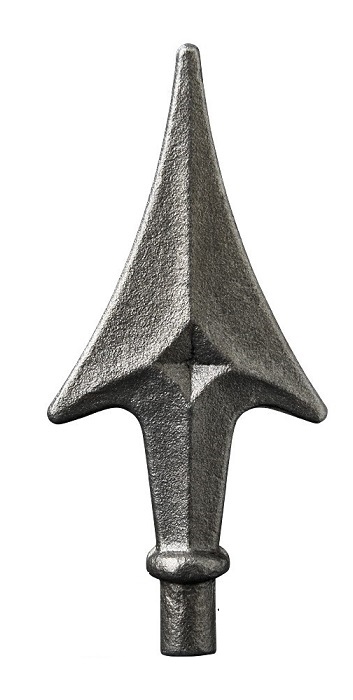

  • Wrought iron style spear shaped finials and circular scrollwork provides added visual appeal.

  • 40mm x 30mm hanging stiles, 40mm x 10mm closing stiles and cross rails

  • 16mm solid metal infill bars.

  • Supplied with surface mounted adjustable hinges, latch mechanism and in ground drop bolt.

  • Primed black (undercoat) – The gates must be painted before installation. For optimum performance, we recommend applying a minimum of 2 coat of a high-quality exterior grade paint.


Physical Height

  • 2082mm (82”)



Extras (available as an option)

If you'd like to add any of the following features, please get in touch with us for a price.

  • Zinc plated (electro galvanised) and black powder coated paint finish.

  • Heavy duty mortise lock (with handle and keys).

  • Pad lockable drop bolts.



Ordering Sizes

  • Width: The space required for the hinges and latch is already included in the "fits opening" specifications given in the drop-down menu. As a result, to establish the correct size to order, you should measure the distance between existing masonry supports then select the option that matches this measurement (as shown in the drop down menu) . Additional calculations should be avoided because they will result in ordering errors.

  • Height: This measurement refers to the actual height of the gates. This is measured from the underside of the framework to the highest point. We have not made any allowance for ground clearance you will need. For optimum results, we suggest leaving 50mm (2”) beneath the gates to ensure they are able to swing free from obstruction.

Read the wrought iron estate gate measuring guide here

Ordering Example

If the distance between brick pillars measures 3048mm you should order the gates to “fit opening 3048mm”.

Is it Necessary to Install Metal Posts?

When no existing support structure is available the use of metal posts will be necessary. These can be selected from the options and accessories menu as shown at the top of the page. Please note that if ordering these items, it's crucial to keep in mind that this will necessitate more room.

Example – Gates to fit an opening of 3048mm combined with 2 x 150mm posts will require a total overall space of 3348mm.



Unsure Which Wrought Iron Style Metal Estate Gates to Order Online?

For further information about ordering sizes, please see the measuring instructions. Answers to general queries may be found on the frequently asked questions page. If you can't find the size you're searching for, check out our made-to-measure section or if you have any more concerns, please contact us prior to ordering.

Made to measure estate gates are available for non standard opening widths

Other Help & Advice Pages

We have provided you with additional help and guidance pages online in our buying guideordering guideinstallation advicetechnical advice and case studies sections.

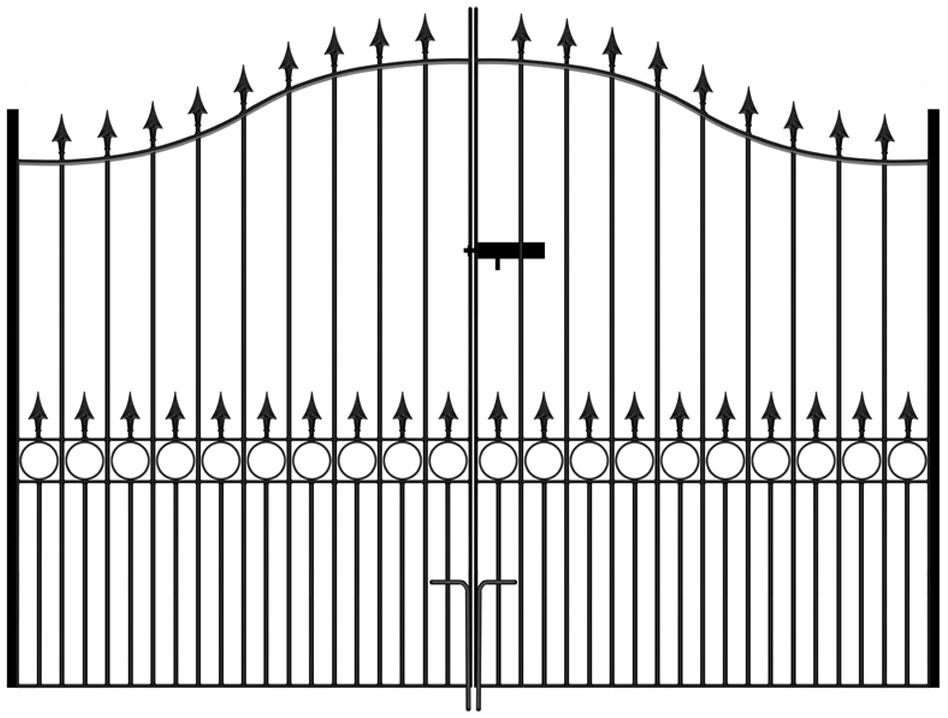

Balmoral estate gates measuring guide

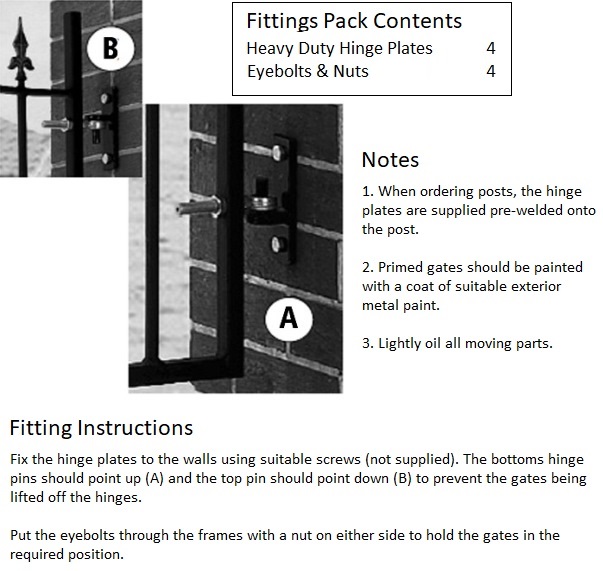

Balmoral heavy duty hinges diagram
