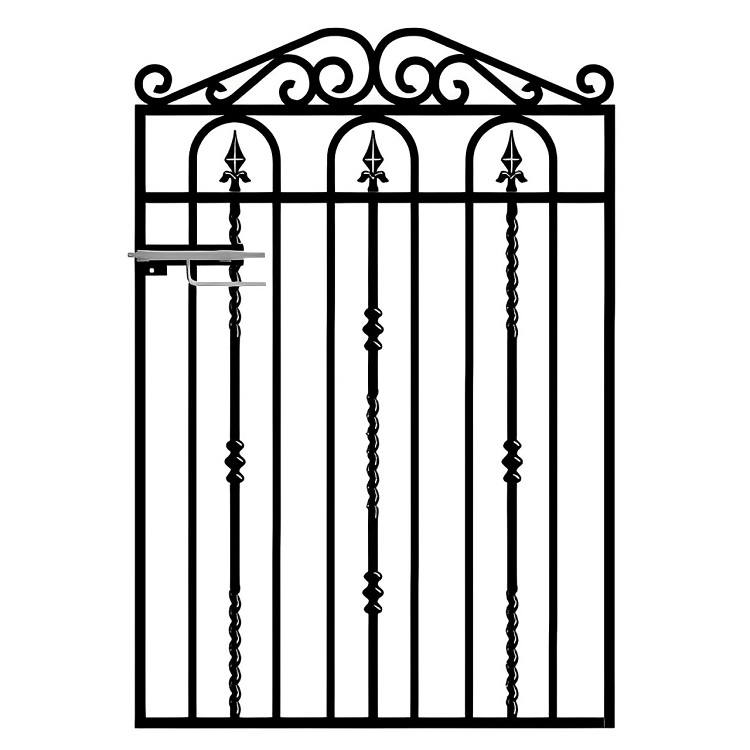

Windsor Wrought Iron Style Metal Garden Gate

The Windsor Wrought Iron Style Garden Gate design features numerous decorative elements that combine to produce a genuinely majestic overall appearance. It benefits from a box section steel framework and is available in various sizes, making it the perfect choice for the design-conscious property owner looking for security without compromising on the home's aesthetic appeal.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

The Windsor Wrought Iron Style Metal Garden Gate is handmade in the UK to an industry-leading standard and will make a bold statement to any pedestrian entrance. The gate is constructed from a strong and secure box section steel framework and features numerous decorative elements to create a bold design statement at a very competitive online price. Available buy online in a choice of sizes, the Windsor garden gate design is primed black (undercoat) as standard and includes surface-mounted hinges for ease of installation whilst the sliding latch can be secured easily using a padlock for optimum levels of security.

Windsor Metal Garden Gate Specification

  • Heavy-duty construction ensures strength and durability.

  • Features decorative wrought iron style design elements.

  • Manufactured in the UK.

  • 25mm x 25mm box section frames and 12mm infill bars

  • Supplied with adjustable hinges and a sliding latch (can be secured using a padlock).

  • Designed to be RIGHT hand hanging only (as viewed from the roadside).

  • Primed black (undercoat) ready for painting prior to installation.


Fitted Height

  • 1220mm (4ft)



Ordering Sizes

  • Width: To establish the opening size, measure the gap between existing brickwork or posts. This measurement will be the size you need to order. Our "fits opening" dimension shown in the drop-down box already includes the space required for the hinges and latch; therefore, no other allowances should be made.

  • Height: The "fitted height" is the height of the gate once installed to the top of the horizontal framework. We have included an allowance of 50mm (2") for ground clearance within this measurement. The scrollwork above the framework is not included within this measurement.

Click here to view the measuring guide


If the opening size between the walls or posts measures 920mm (3ft), you will need to order a gate that "fits opening" 920mm (3ft).

Do You Need Metal Gate Posts?

When no existing support structure is in place, you will need to install metal posts. When selecting the size to order, please remember to factor in the additional space required for these items.

Example – A garden gate to fit an opening of 920mm combined with 2 x 80mm posts will need an overall space of 1080mm.



Looking for a Powder Coated Finish?

Please complete our enquiry form for more information about our zinc-plated and black powder-coated paint options. We will happily provide you with more details and answer any questions.



Searching For More Information About Garden Gates?

Read the measuring guide if you need help picking the right size gate to order. Alternatively, go the frequently asked questions page or contact us if you have a query.

Click here to find out about our made to measure wrought iron garden gates

Other Useful Pages

We have incorporated many help and advice categories within our website. Feel free to browse our Buying GuideOrdering GuideInstallation AdviceTechnical Advice and Case Studies pages for general information about our products.



Windsor garden gate measuring guide

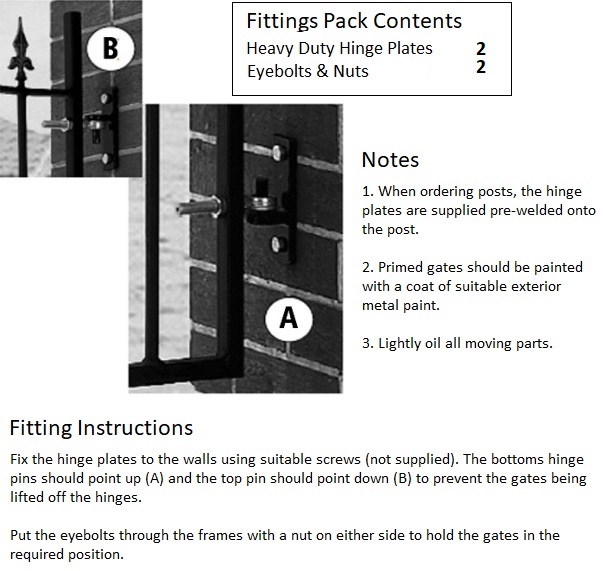

Adjustable heavy duty hinge diagram for Windsor garden gate
