Windsor Wrought Iron Style Double Metal Driveway Gates | 4ft High

Windsor Wrought Iron Style Double Metal Driveway Gates | 4ft High

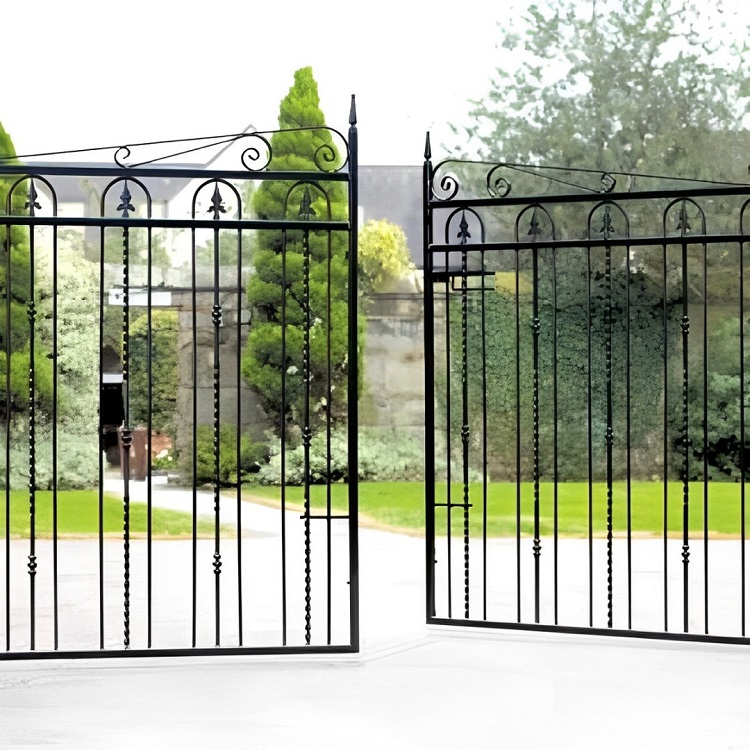

The Windsor Wrought Iron Style Driveway Gates are handmade in the UK and feature a beautiful eye-catching design. Suitable for any domestic application, they benefit from several decorative components for an ornate appearance without compromising strength and structural integrity.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

The Windsor Wrought Iron Style Double Metal Driveway Gates are available to buy online in sizes to suit many opening widths up to 12ft. They incorporate a fully welded box section framework to ensure superior levels of strength combined with decorative features such as ornamental scrollwork, spiral infill bars and fleur de lys finials. To ensure ease of installation, these great-value double metal gates include surface-mounted hinges, a latch, and a drop bolt, enabling you to mount them directly to any appropriate surface, such as masonry, brickwork, timber or metal posts.

Windsor 4ft High Driveway Gates Specification

  • Handmade in the UK to an industry-leading standard.

  • Range of sizes available (select the required option from the menu)

  • Features ornamental scrollwork, finials and bars.

  • Fully welded 25mm x 25mm box section steel framework.

  • 12mm diameter round metal infill bars.

  • Supplied with adjustable hinges, latch and a drop bolt.

  • Primed black (undercoat) – The gates must be painted before installation to prevent corrosion.


Fitted Height

  • 1220mm (4ft)



Ordering Sizes

  • Width: To select the correct size to order, measure the width of your existing opening using a tape measure. You should then select a size matching this measurement from the drop-down menu at the top of the page. Please note that you do not need to make any additional calculations for the hinges and latch, as these components are already incorporated in the "fits opening" measurement.

  • Height: The "fitted height" measurement includes a 50mm (2") allowance for ground clearance. This measurement is taken from the floor level to the top of the uppermost horizontal rail but excludes any finials and scrollwork located above this point.

Refer to our measuring guide for help with ordering sizes


If the distance measured between your walls or existing posts is 3660mm (12ft), you should order the gates listed to "fit opening 3660mm (12ft)".

Do you Need to Install Posts?

If supporting walls or pillars are not present, you will need to install metal posts, and as a result, additional space will be required.

Example – Gates to fit an opening of 3660mm combined with 2 x 100mm posts will require a total overall space of 3860mm.



Looking for a Powder Coated Finish?

Please fill out our enquiry form for details about the zinc-plated and black powder-coated paint options for our range of wrought iron-style metal driveway gates. We will happily provide details and supplementary prices or answer any questions.



Do you Need More Information About Ordering Driveway Gates Online?

Please view our measuring guide if you need clarification about measuring the opening, or read through our comprehensive FAQ section. Alternatively, we also provide more general information in our helpful buying guideordering guideinstallation guidancetechnical advice, and case studies pages.

Discover the full details about our made to measure gates

You can use our made-to-measure service if you cannot find a standard-size option to suit your needs. If this applies to your project, contact us with your measurements, and we will send you a quote.

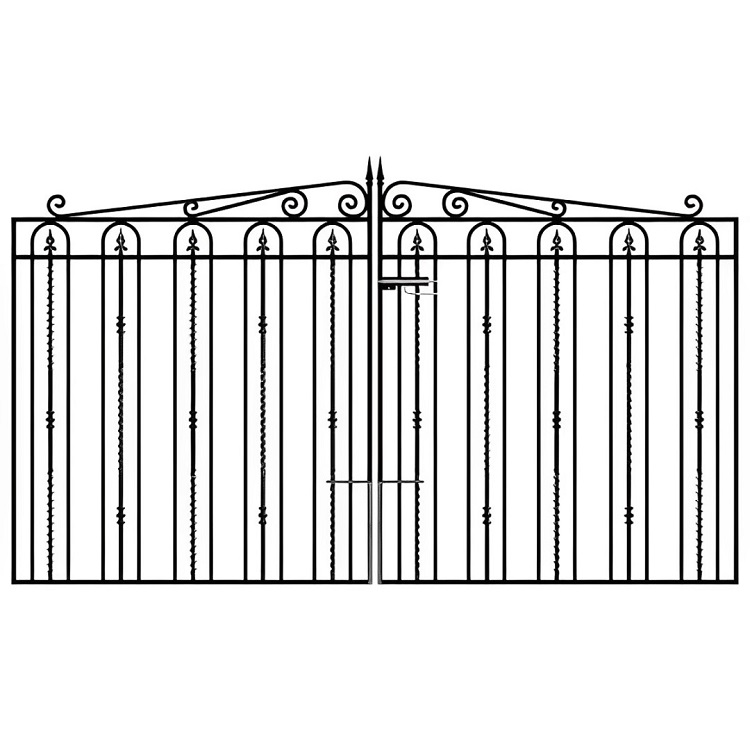

Windsor driveway gate measuring diagram

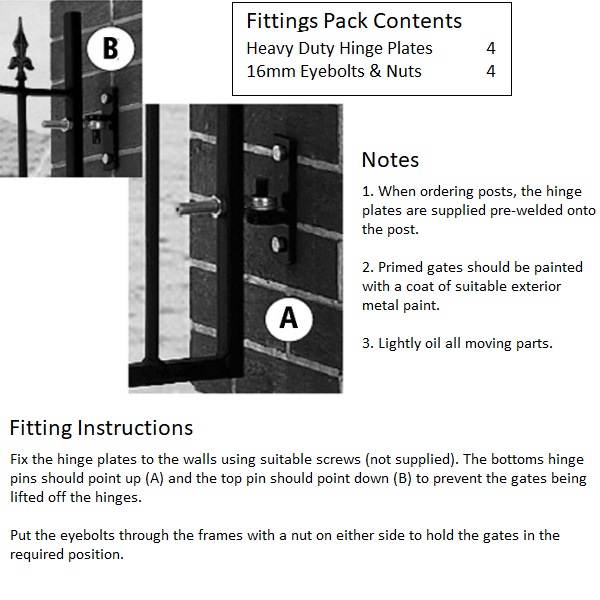

Double gate hinge layout
