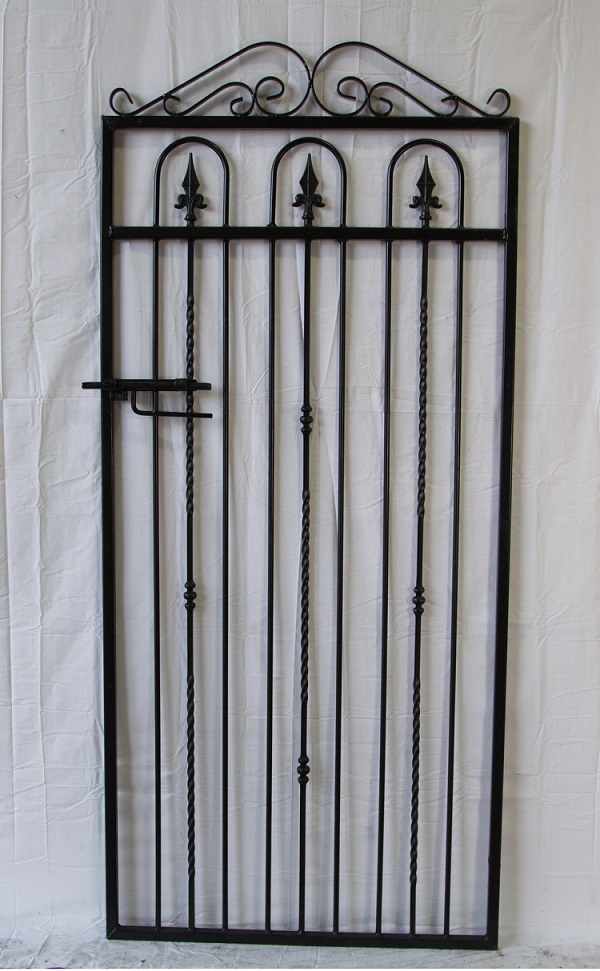

Windsor Wrought Iron Style Metal Side Gate

The Windsor Wrought Iron Style Side Gate will provide excellent privacy and security without compromising aesthetic appeal. It is handmade in the UK and features a box section framework and numerous decorative elements. It is available to buy online in varied sizes to suit many typical opening widths.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

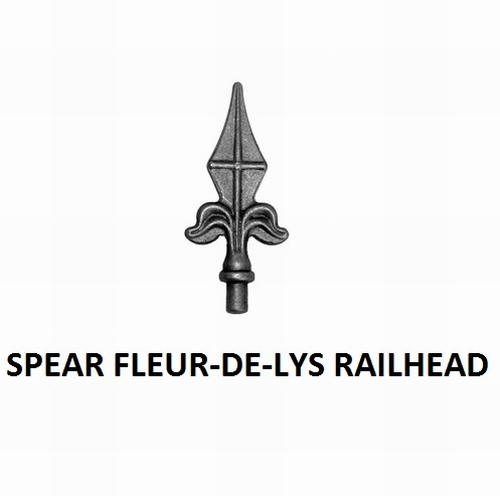

The Windsor Wrought Iron Style Metal Side Gate features distinct design elements to achieve a stunning overall appearance making it perfect for any property owner looking to maximise security without compromising on aesthetic appeal. Manufactured from 25mm x 25mm box section steel frames and 16mm tube infill bars the gate is strong, rigid, and secure making it excellent value for money. For a decorative appearance, the Windsor design incorporates spiral bars, wrought iron style scrolls and fleur de lys finials. Included with the gate are surface mounted adjustable hinges and a sliding latch mechanism to enable easy DIY installation. Supplied as standard primed black (undercoat), all metal surfaces need to be painted prior to installation to prevent the onset of rust and corrosion.

Windsor Side Gate Specification

  • 25mm x 25mm box section framework.

  • 16mm tube infill bars.

  • Decorative and eye catching wrought iron style design elements.

  • Suitable for any home and garden.

  • Manufactured in the UK.

  • Supplied with adjustable hinges and a sliding latch.

  • Primed black (undercoat)

  • Designed to be RIGHT hand hanging only (as viewed from the road side).


Height (once installed)

  • 1830mm (6ft)



Ordering Sizes

  • Width: Measure the opening between the brick walls or existing posts to establish the ordering width. Do not make any other calculations as the "fits opening" width shown in the drop-down box includes the space required for the hinges and latch.

  • Height: The "Height (once installed)" dimension is measured from the floor level to the top of the horizontal frame. This measurement includes 50mm (2”) for ground clearance.

View the measuring guide for help with ordering sizes


If the space between existing posts or brickwork measures 3ft you should order a gate to “fit opening 3ft”.

Do You Need Posts?

If there is no suitable support structure in place to attach the hinges and latch you will need to install the appropriate metal posts. Please note that in these instances, it is essential you have additional space available to house the posts.

Example – A gate to fit an opening of 920mm combined with 2 x 80mm posts will need an overall space of 1080mm.



Looking for a Powder Coated Finish?

Please complete our enquiry form for more information about our zinc-plated and black powder-coated paint options. We will happily provide you with more details and answer any questions.



Confused About Ordering a Wrought Iron Style Metal Side Gate Online?

Read the measuring guide if you dont know what size to order. You can also find answers to simple questions in our FAQ . We also provide you with other information in the buying guideordering guideinstallation guidancetechnical advice, and case studies pages.

Learn more about our made to measure service - Click here

If you have not found the size you need, visit our made to measure gates category to discover more about this popular option. If you have any other problems, don't hesitate to get in touch with us for guidance.

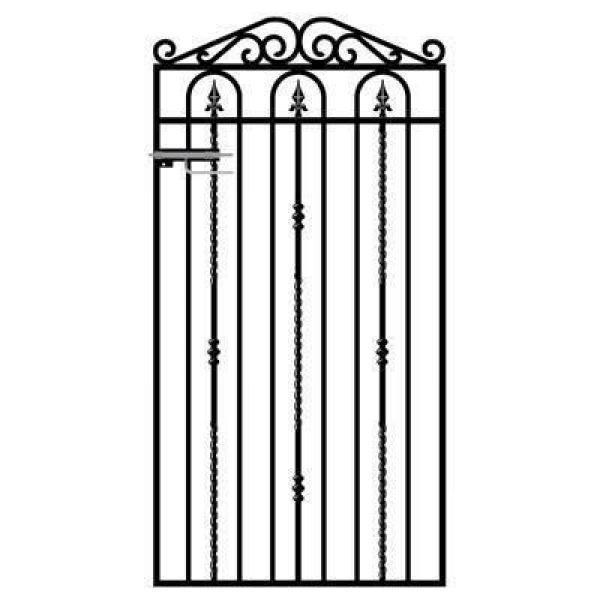

Windsor side gate measuring guide

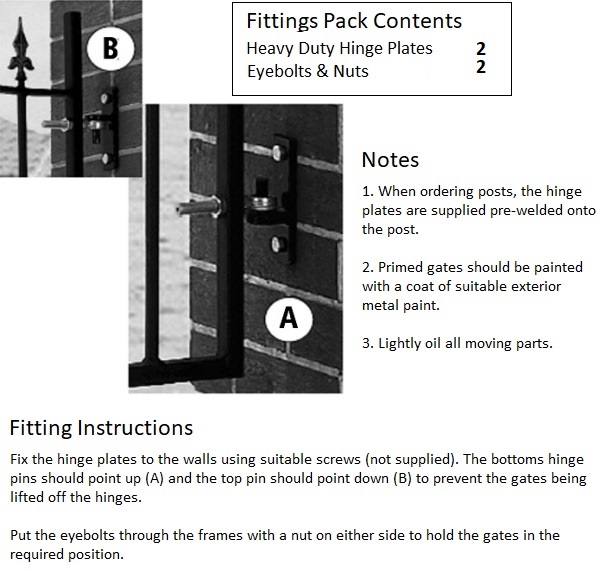

Windsor side gate adjustable hinges and latch layout
