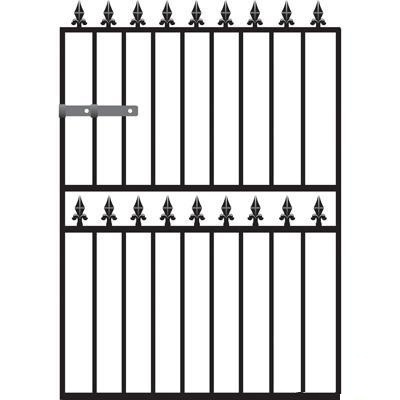

Hampton Wrought Iron Style Metal Garden Gate

The 4ft high Hampton Garden Gate has a timeless wrought iron style appearance suitable for a wide range of residential applications. This affordable metal gate design features a box section framework for strength and a double row of finials for a more austere appearance. It is ideal for many locations where restricted pedestrian access is needed.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

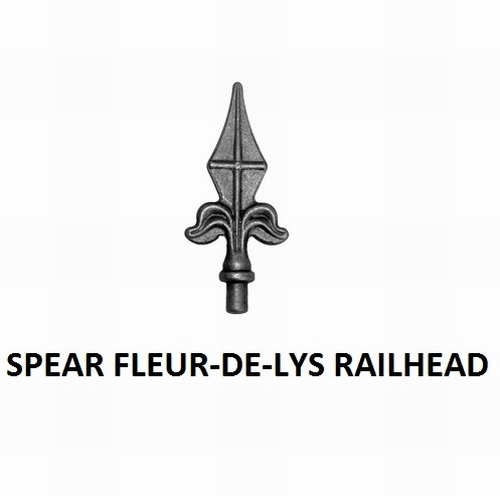

Available in a choice of sizes, the Hampton Wrought Iron Style Metal Garden Gate will provide your home with added privacy and security at a reasonable price. Handmade in the UK, it features a welded 25mm x 25mm box section steel frame, which provides excellent rigidity, whilst the 16mm tube infill bars give a robust appearance without creating excessive additional weight. Furthermore, a double row of offset fleur de lys finials is featured within the design for added visual appeal. Suitable for DIY installation, the Hampton garden gate design includes a pair of easy-to-install surface-mounted hinges, ensuring you can attach them to any appropriate support structure, such as a brick wall or timber and metal posts. Also included is a simple latch mechanism, which can be quickly secured using a padlock.

Hampton Garden Gate Specification

  • High-grade steel construction.

  • 25mm x 25mm box section frames.

  • 16mm tube infill bars

  • Supplied with adjustable hinges and a latch (can be secured with a padlock), which are compatible with fixing directly to brickwork, timber or metal posts.

  • Designed to be RIGHT hand hanging only (as viewed from the roadside).

  • Black primed (undercoat) - Additional painting is required to protect against corrosion.


Fitted Height

  • 1220mm (4ft) + finials



Ordering Sizes

  • Width: Ensure you select the appropriate size option from the drop-down menu, as the "fits opening" measurements already include the space needed for the hinges and latch. Refer to the example below for further clarification.

  • Height: The "fitted height" includes an allowance of 50mm (2") for ground clearance. This measurement is taken from ground level to the top of the horizontal frame. It does not include the finials mounted above the uppermost horizontal rail.

View the measuring guide if you need help choosing the right size


If the size of your aperture (distance between walls or posts) measures 1070mm, select a gate that "fits an opening of 1070mm".

Do You Need Metal Gate Posts?

You must use metal posts to mount the hinges and latch plate if there is no support structure. These elements require extra space, so consider this during installation planning.

Example – A garden gate to fit an opening of 1070mm combined with 2 x 80mm posts will need an overall space of 1230mm.



Looking for a Powder Coated Finish?

Please complete our enquiry form for more information about our zinc-plated and black powder-coated paint options. We will happily provide you with more details and answer any questions.



Confused About Buying Wrought Iron Style Metal Gates Online?

We recommend reading our measuring guide if you need help finding the correct size. If we don't have the size you need, you can request a quote for a custom-made size. For any other questions, please refer to our frequently asked questions page or contact us for assistance.

We have a made to measure service available - Click here to find out more

Other Useful Pages

You can discover additional help and advice within our Buying GuideOrdering GuideInstallation AdviceTechnical Advice and Case Studies pages.



Gate measuring diagram

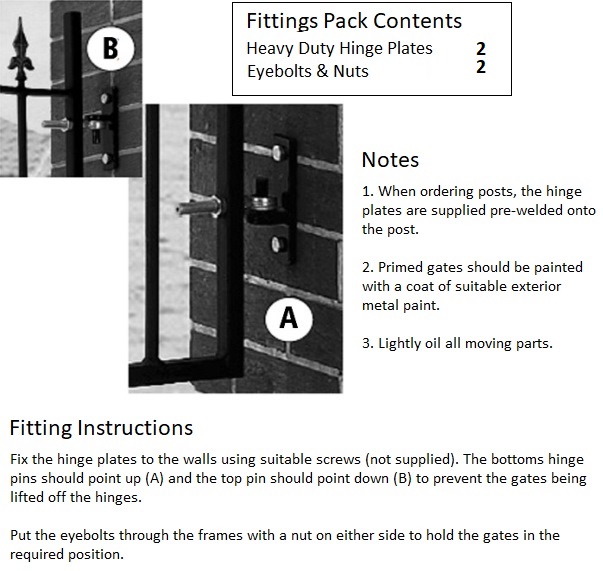

Heavy duty hinge diagram
