Hampton Arched Wrought Iron Style Estate Gates

The Hampton Arched Estate Gates are available in 2 height options (6ft & 7ft high). They feature an imposing arch top design, a premium quality box section framework, and two rows of fleur de lys finials to create a secure yet visually appealing overall aesthetic.

Delivery:
Please allow approximately 6 weeks lead time for delivery of this product.

Other Options & Accessories

The Hampton Arched Wrought Iron Style Metal Estate Gates will provide property owners with a stylish and practical means of safeguarding the main vehicle entrance onto their driveway. Handmade in the UK to a high standard, these superb value double metal gates are built to last. They feature a fully welded 25mm box section framework for excellent levels of rigidity, 16mm tube metal infill bars and a double row of finials to generate enhanced aesthetic appeal. Available to fit opening sizes between 8ft and 12ft, they come with surface-mounted adjustable hinges, a latch and a ground drop bolt as standard. You can mount them directly to any suitable masonry surface, or, for freestanding installation, they can be attached to metal posts.

Hampton Arched Estate Gates Specification

  • Available in 2 popular height options

  • Handmade in the UK using high-quality steel components.

  • Range of widths available (select the required option from the menu)

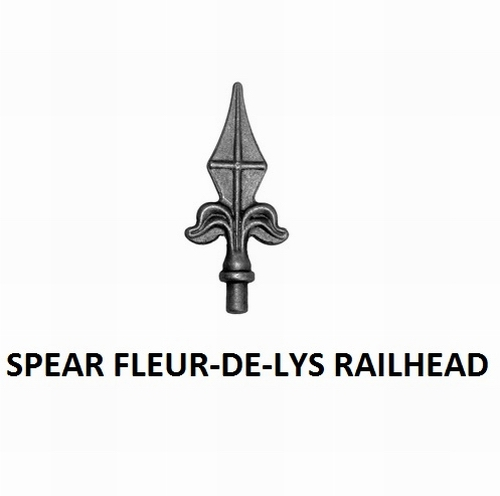

  • Fleur de lys finials are welded onto the mid and top horizontal rails.

  • 25mm x 25mm box section steel framework.

  • 16mm tubular metal infill bars.

  • Includes adjustable hinges, latch and a drop bolt.

  • Primed black (undercoat) – You must paint the gates before installation to protect against rust.



Fitted Height (6ft high option)

  • Side Framework: 1524mm (5ft)

  • Top of Arch: 1830mm (6ft)



Fitted Height (7ft high option)

  • Side Framework: 1829mm (6ft)

  • Top of Arch: 2134mm (7ft)






Extras (available as an option)

Please contact us if you would like to include any of the following features.

  • Zinc-plated (electro-galvanised) and black powder-coated paint finish.

  • A heavy-duty mortise lock (with handle and keys).

  • Pad lockable drop bolts.






Ordering Sizes

  • Width: We have already included the space needed for the hinges and latch in the "fits opening" measurements provided in the drop-down menu. Consequently, this means that you should measure the distance between your existing supports and then select a size from our menu that corresponds to that measurement taken. You should avoid additional allowances or tolerances because this will result in ordering errors.

  • Height: The "height once fitted" includes an allowance of 50mm (2"") for ground clearance. This measurement is taken from ground level to the top of the framework. The finials mounted on the arched top rail are not included within this dimension.

Learn how to measure the opening correctly

Ordering Example

If the size of the aperture between brick pillars measures 3353mm, you should order the gates that state "fits opening 3353mm".

Do you Need Metal Posts?

Additional space will be needed if you require posts to support the hinges.

Example – Gates to fit an opening of 3353mm hinged using 2 x 150mm posts will require a total overall space of 3653mm".






Do You Need More Information?

Please read and understand the measuring guide for details about ordering sizes or look at the frequently asked questions page for answers to popular queries. Alternatively, review our made-to-measure section if you need help finding the size you're looking for.

Made to measure gates are available

Other Useful Pages

Further guidance is available in our Buying GuideOrdering GuideInstallation AdviceTechnical Advice and Case Studies pages.




Hampton arched estate gates measuring guide

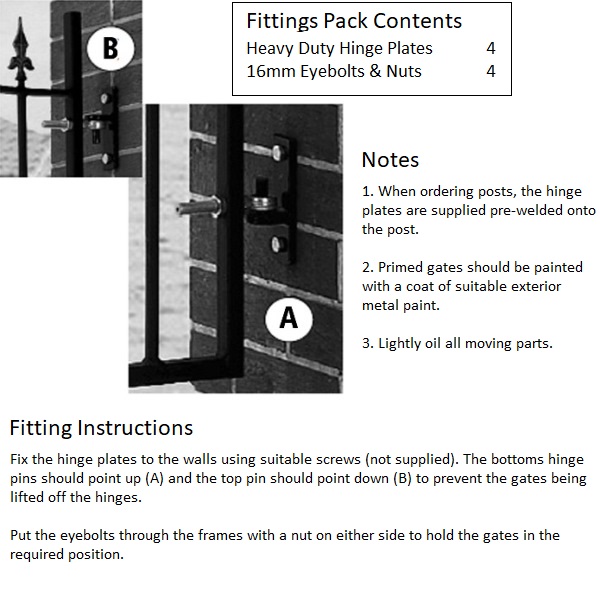

Hampton arched heavy duty hinges diagram
