Winchester Arched Wrought Iron Style Metal Side Gate

The Winchester Arched Wrought Iron Style Side Gate is handmade in the UK and benefits from decorative scrolls for an enhanced appearance. It is suitable for many residential applications and will provide security and privacy to pathways, side entrances or any other vulnerable area of your property.

Please allow approximately 4 - 5 weeks lead time for delivery of this product.

Other Options & Accessories

The Winchester Arched Wrought Iron Style Metal Side Gate features decorative scrollwork and a traditional arch top making it the perfect security solution for numerous residential locations where there is a need to provide improved protection from trespassers and prevent access to specific areas of the garden. Manufactured in the UK using 20mm x 8mm flat bar frames, 10mm infill bars and 10mm x 3mm scrollwork, the Winchester side gate is both elegant in appearance and affordable in price. Available to buy online in a choice of common sizes, the gate is primed black (undercoat) ready for painting prior to installation and includes the hinges and latch fittings as standard.

Winchester Arched Metal Side Gate Specification

  • Timeless arch top and decorative scrolls.

  • Manufactured in the UK by skilled craftsmen.

  • 20mm x 8mm frames and 10mm infill bars

  • 10mm x 3mm decorative scrollwork

  • Supplied with adjustable hinges and a universal latch.

  • Primed black (undercoat) ready for painting before installation.



Ordering Sizes

  • Width: To determine the ordering width, measure the distance between the brickwork or existing posts. Do not make any other calculations as our "fits opening" dimension shown in the drop-down box already factors in the space needed for the hinges and latch.

  • Height: The "Height (once installed)" is measured from the ground to the top of the arch. This measurement already includes 50mm (2”) for ground clearance.

Click here to view the measuring guide


If the distance between existing posts or brick walls measures 762mm you should order a gate to “fit opening 762mm”.

Do You Neeed Posts?

When metal posts are required to install the gate (due to a lack of suitable masonry or support structure), you'll need to ensure that there is adequate space available for these items.

Example – A gate to fit an opening of 762mm combined with 2 x 50mm posts will need an overall space of 862mm.



Looking for a Powder Coated Finish?

Please complete our enquiry form for more information about our zinc-plated and black powder-coated paint options. We will happily provide you with more details and answer any questions.



Confused About Buying Wrought Iron Style Metal Side Gates Online?

View our measuring guide or find answers to many common questions within the FAQ. Other help and information pages include the buying guideordering guideinstallation guidancetechnical advice, and case studies pages.

Learn about our made to measure side gates here

Alternatively, if the size you need is not listed in the drop-down menu, you can learn more about our made to measure gates. If you have any other queries before ordering online, please contact us for support.

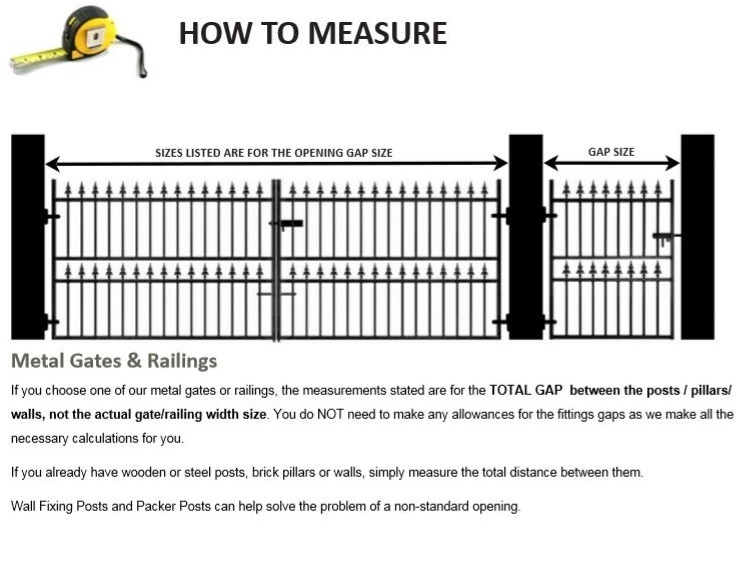

Winchester arched side gate measuring guide

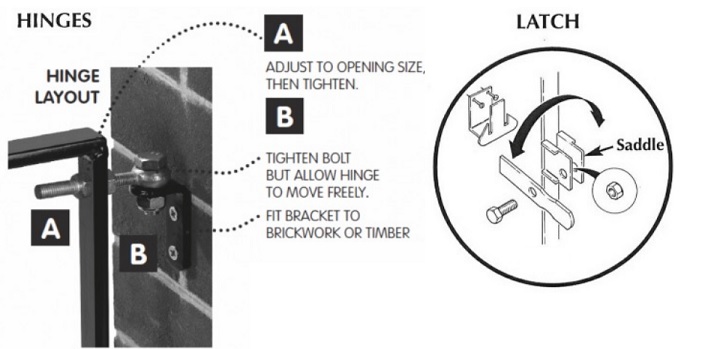

Winchester arched side gate adjustable hinges and latch layout
